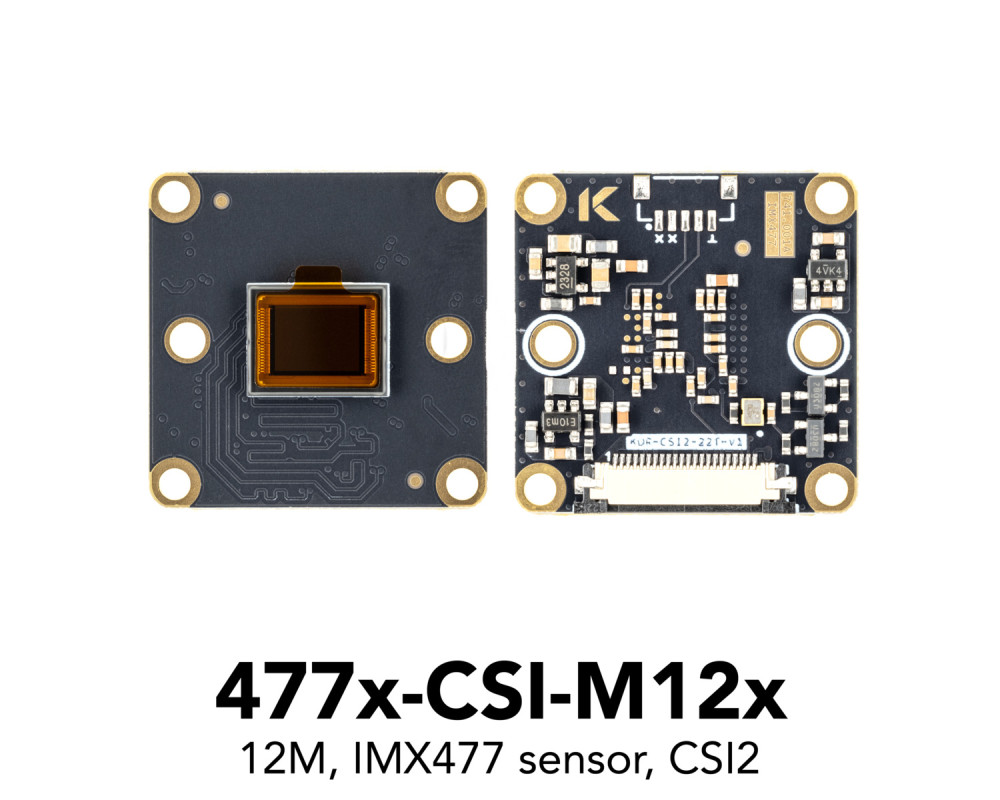

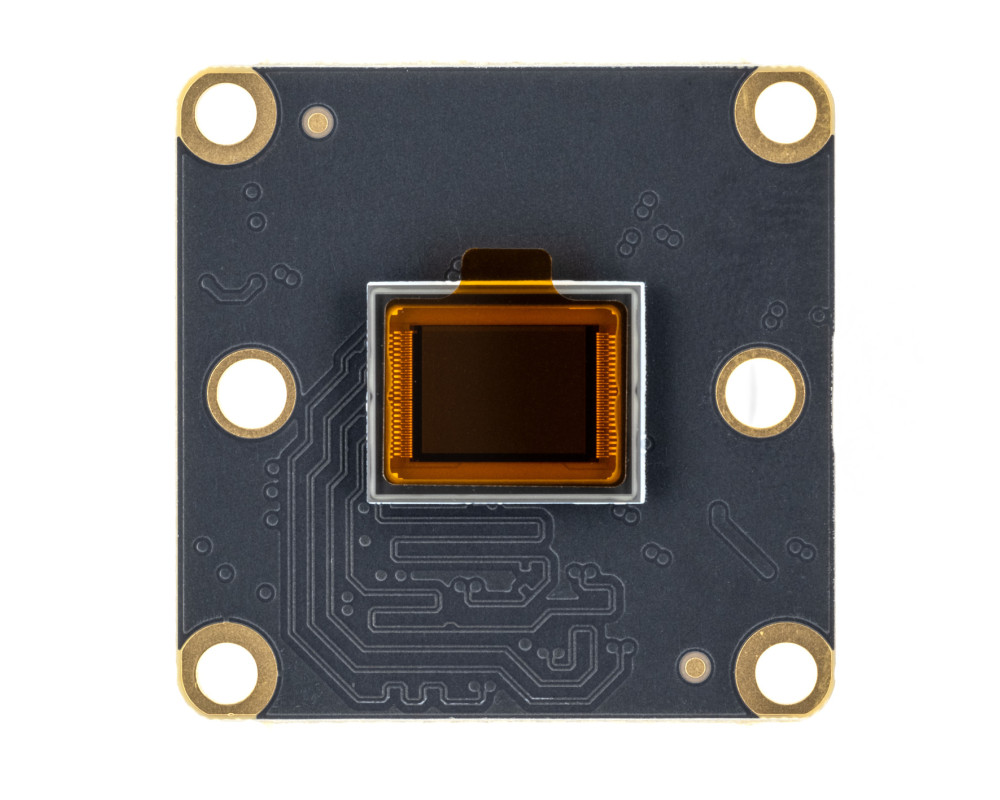

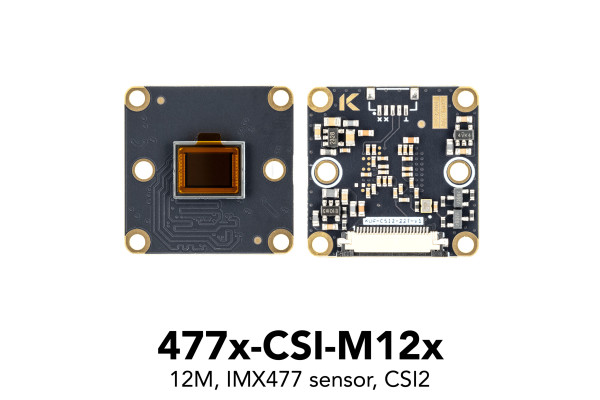

12M MIPI camera for Raspberry Pi & Jetson. The 477x-CSI-M12 outputs raw stream through a 4-lane CSI-2 connector while keeping the price and footprint tiny.
- IMX477 RGB, M12/M12L or bare board
- 22-pin FFC (0.5mm) standard connector
- <1 W typical - perfect for edge-AI, night-vision robots
Camera variants
| SKU | Lens mount | Chroma | Note |
| 477C-CSI-M12 | 9.5mm for wide angle lenses | RGB Color | Most common use for wide angle and fish-eye lenses. |
| 477C-CSI-M12L | 14.7mm for regular and telephoto lenses | RGB Color | Modification for lenses above 6mm (typical) |
Documentation
IMX477 board CSI2 MIPI camera
- Product Code: 477x-CSI-M12x
- Availability: In Stock
-
123.00€
