C3 camera gets embedded connectivity

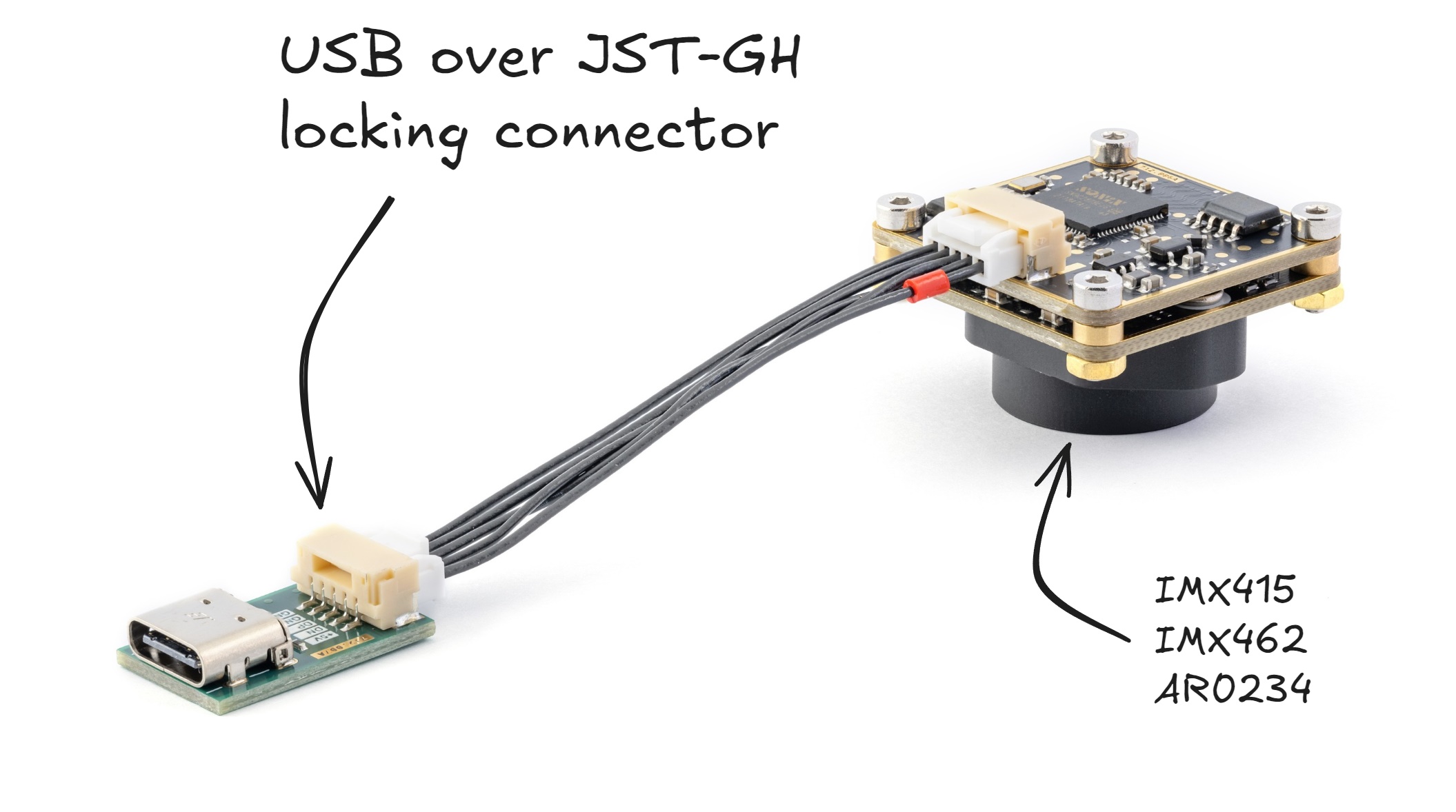

It’s been a while since you’ve asked for a more robust USB camera connector for embedded integration. Here it comes – all C3 USB cameras with M12/M12L lens mounts can now be assembled with a locking JST-GL connector.

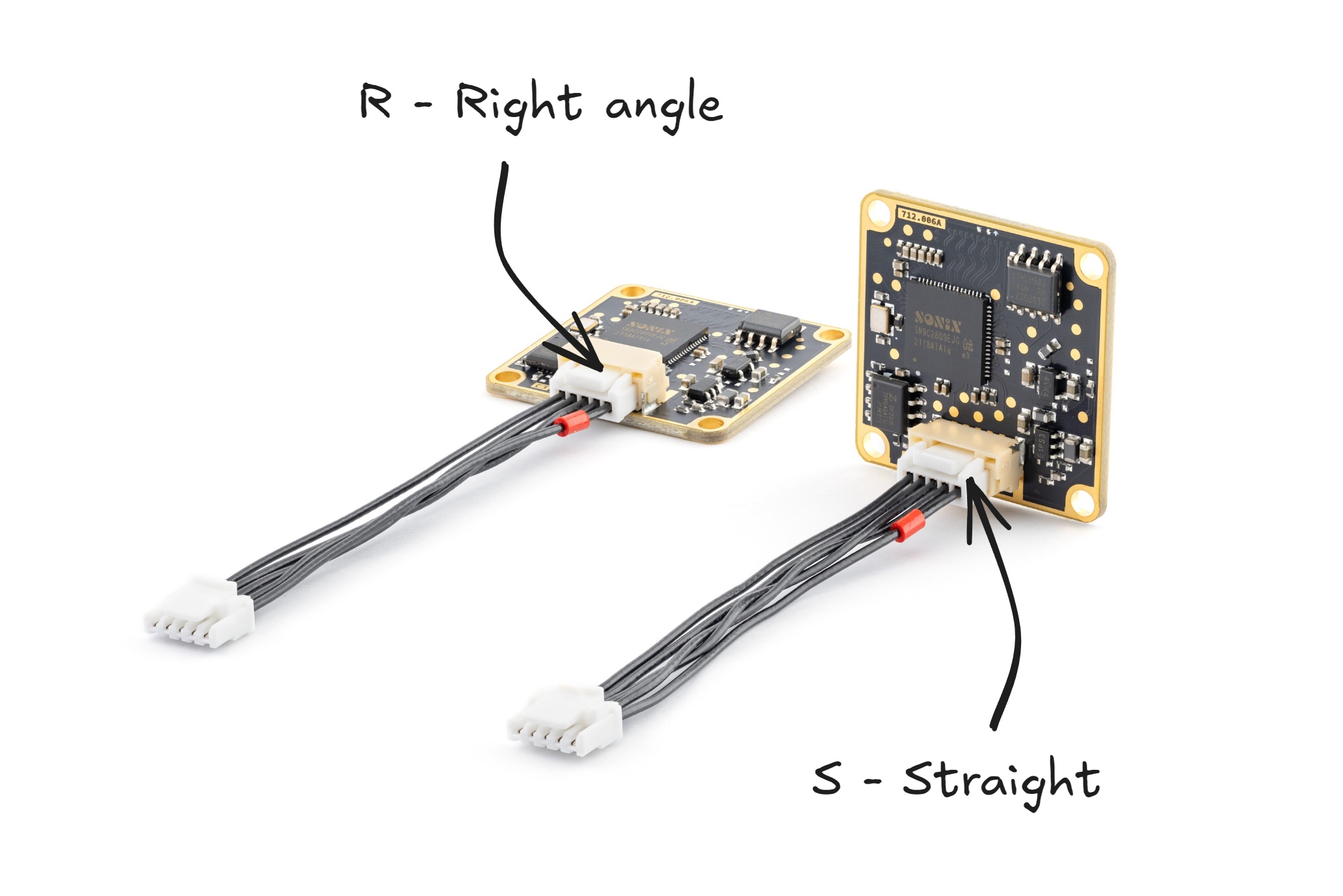

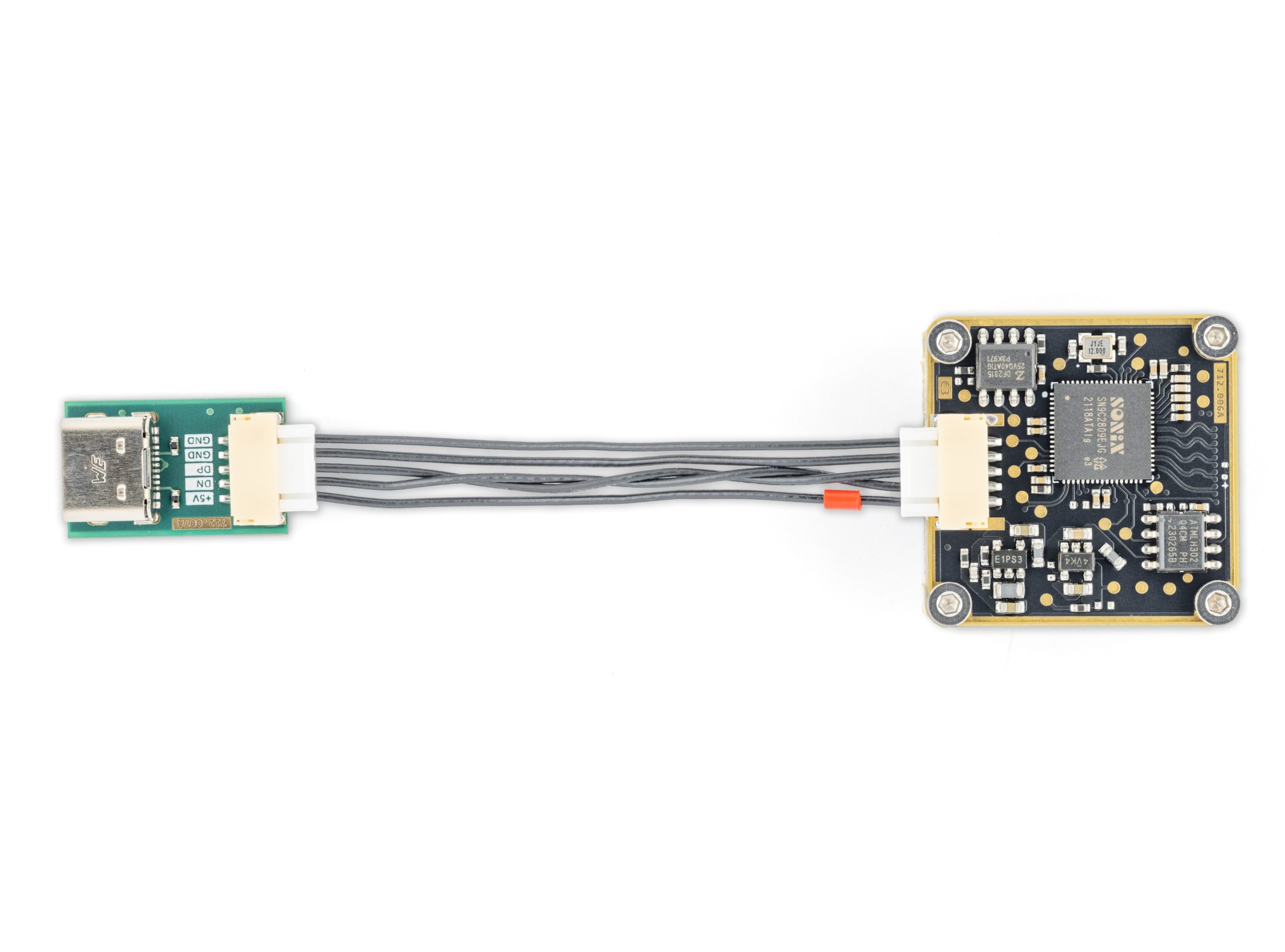

A newly developed USB ISP board mates with all current C3 image sensor boards and can be fitted with either right-angle or straight JST-GL connectors. For deeper system integration, a version with an unsoldered connector is also available on request.
Available sensor options
- IMX462 RGB / Mono – 1080p@60fps. This sensor is designed for low-light and near-infrared (NIR) imaging. Excellent choice for surveillance, machine vision, or any application requiring high sensitivity in dark environments.
- IMX415 RGB – 4K@30fps. High-definition sensor delivering detailed images with compact optics. Great for smart kiosks, video analytics, and high-resolution monitoring.
- AR0234 RGB – 1080p@30 fps global shutter. Optimized for fast motion capture without distortion, this sensor is ideal for barcode scanning, robotics, and industrial automation.
