New M12 lenses (2026-05)

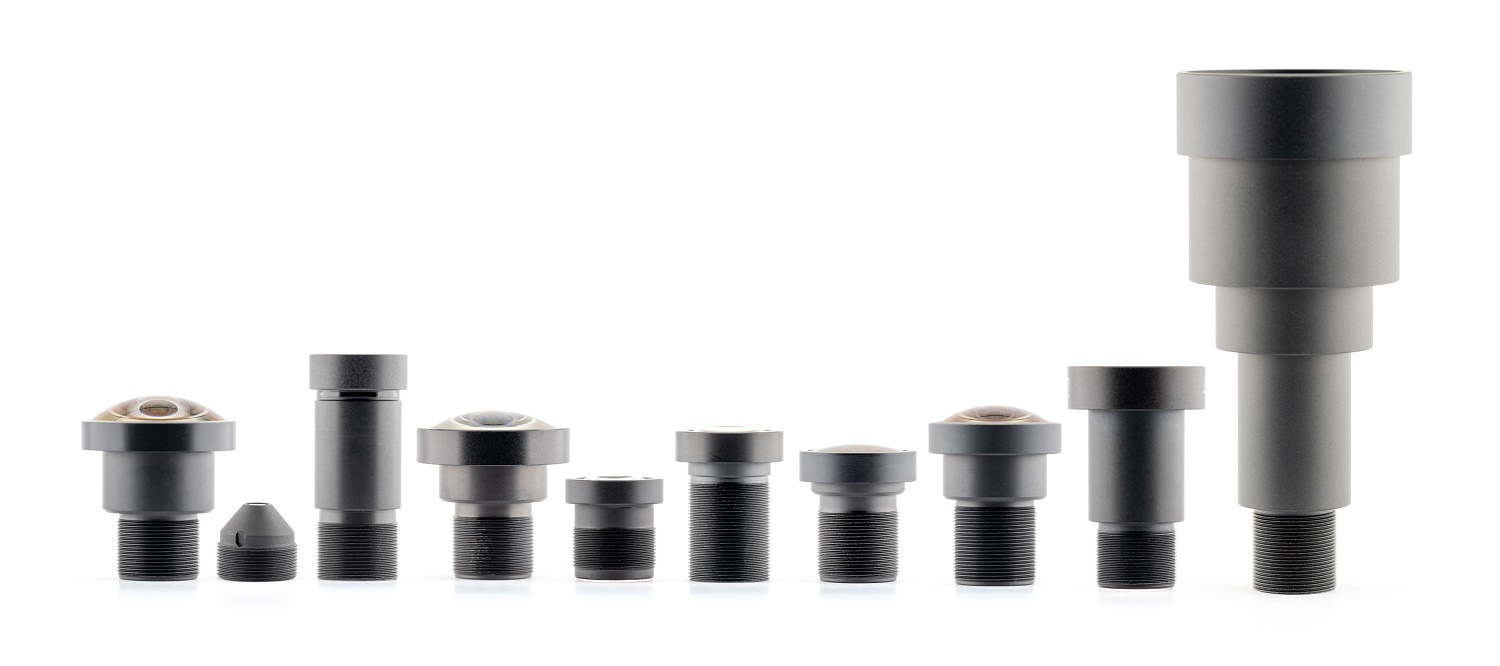

We have added several new M12 lenses that make the Kurokesu range broader and more useful in everyday integration work. The new additions include faster general purpose lenses, narrower low distortion options for tighter framing, and several new wide angle designs for applications where coverage matters more than compact field of view. The range now also extends further on the telephoto end, including a 100 mm M12 lens for applications that need very narrow field of view and strong subject magnification in a compact format. Together, these additions expand the lineup in practical directions rather than just adding more of the same.
The strongest changes are on the wide angle side, where the range now includes more ultra wide, fisheye, and compact special purpose optics, alongside faster lenses for low light imaging and low distortion models for more controlled image geometry. At the same time, the longer focal length additions make the lineup more complete for systems that need tighter framing and longer reach. Overall, the M12 range is now more flexible for embedded vision, robotics, surveillance, and machine vision applications while staying within the same compact lens format.
| Lens | Description | Focal length | View angle (diag °) | Aperture | Sensor |
| L158-14-M12 | Narrow view, low distortion | 14 | 35 | f/2.8 | 1/1.8" |
| L161-21.6-M12 | Long focal length, low distortion | 21.6 | 23.4 | f/2.8 | 1/1.8" |
| L176-4-M12 | Fast wide angle lens | 4 | 120 | f/1.2 | 1/2.5" |
| L178-6-M12 | Fast moderate wide angle lens | 6 | 75.5 | f/1.2 | 1/2.5" |
| L187-2.8-M12 | Super cone pinhole lens | 2.8 | 133.6 | f/2.2 | 1/2.7" |
| L188-2.5-M12 | Fisheye lens for ultra wide | 2.5 | 200 | f/2.0 | 1/1.7" |
| L189-2.7-M12 | Fast fisheye lens | 2.7 | 196.6 | f/1.6 | 1/1.8" |
| L190-3.8-M12 | Fast ultra wide lens | 3.8 | 146.1 | f/1.5 | 1/1.8" |
| L192-2.9-M12 | Extreme wide angle lens | 2.9 | 190 | f/1.6 | 1/1.7" |
| L193-100-M12 | Super telephoto lens | 100 | 4.89 | f/3.6 | 1/1.7" |
