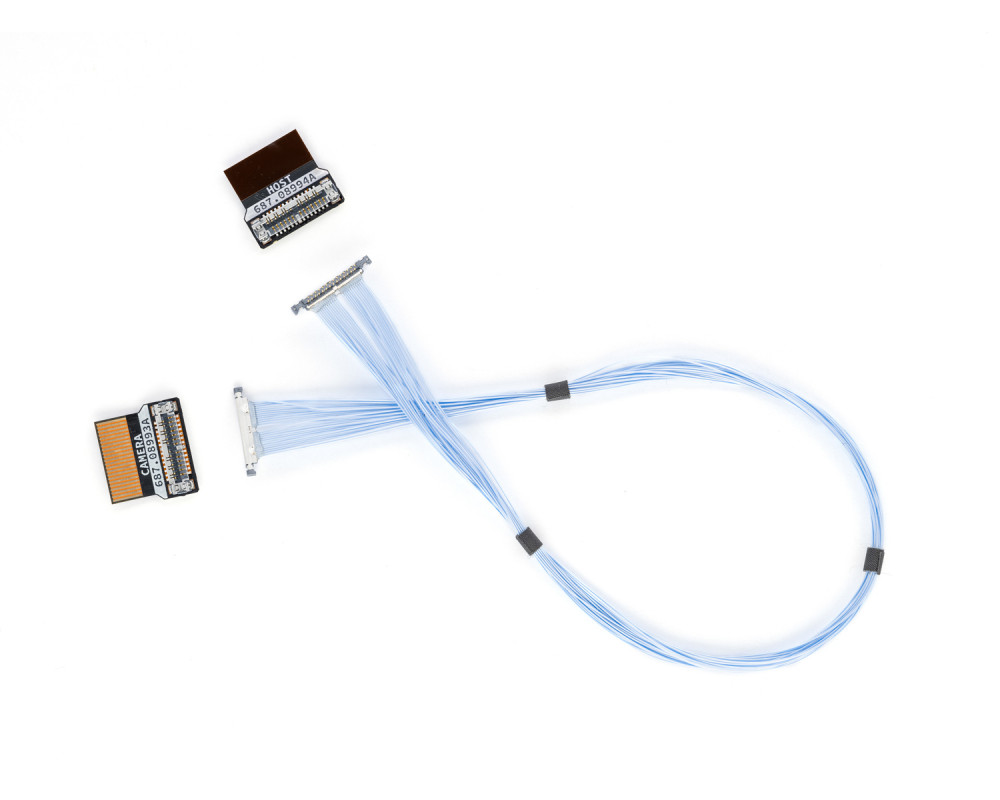

Micro coax CSI2 MIPI cable kit (4 lane, 22 pin)
Kurokesu I-PEX CSI-2 cable kits are designed for compact camera systems that need better cable durability, shielding, and routing flexibility than standard FFC cables. They adapt Kurokesu 22-pin, 0.5 mm pitch, 4-lane CSI-2 camera modules to the I-PEX CABLINE-UA II micro coax format, making them especially suitable for moving assemblies such as gimbals, robotic arms, inspection tools, and other space constrained embedded systems. The kit is available as adapter boards only or with optional 20 cm or 30 cm micro coax cable, giving flexibility for different mechanical layouts and integration needs. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.

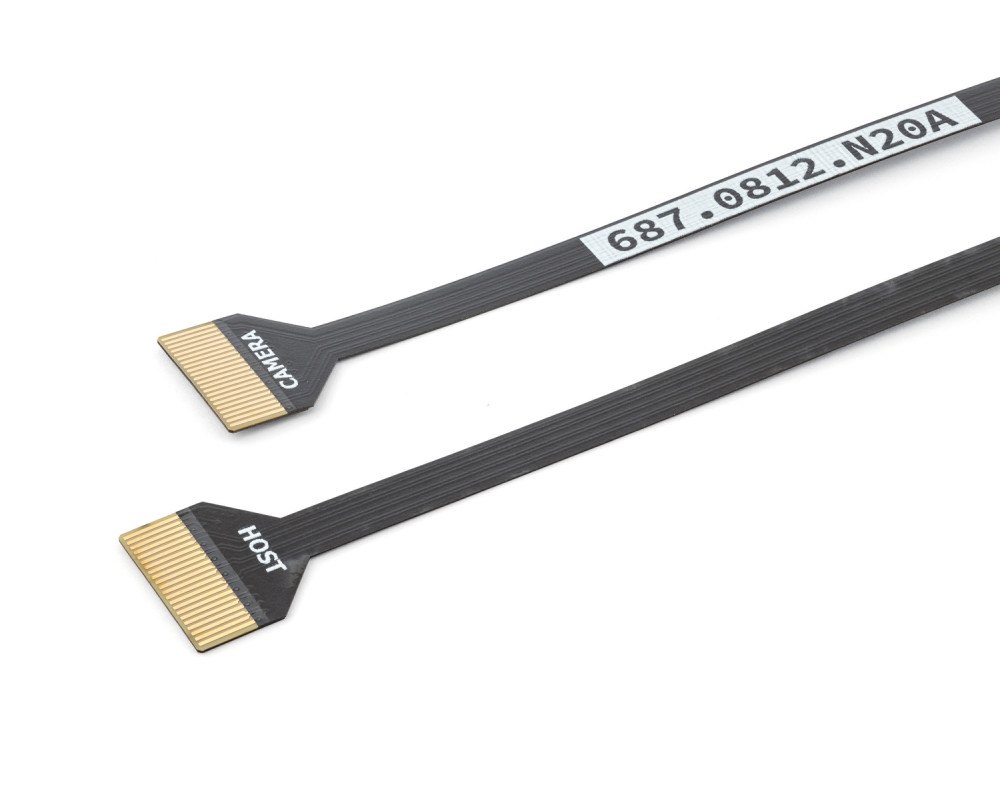

Slim CSI2 FFC cable 22pin/0.5mm
Kurokesu Slim FPC cables are compact impedance controlled flexible printed cables for MIPI CSI-2 camera connections. With a 4 mm width and a 4 layer construction with dedicated ground planes, they are designed for compact assemblies where signal integrity, reduced crosstalk, and predictable routing matter. They use the 22-pin, 0.5 mm pitch format used by Kurokesu CSI-2 camera modules, with all four CSI-2 lanes routed. Compared with standard FFC cables, the slim format is aimed at applications where installation space is limited but a flat flexible interconnect is still preferred over micro coax. This makes them a practical option for embedded vision systems, robotic assemblies, inspection equipment, and other compact high speed imaging setups. Available lengths currently include 10 cm, 20 cm, 30 cm, and 40 cm. Key features 4-layer construction with controlled impedance Dedicated ground planes for reduced crosstalk Width after fan-out: 4 mm Length options: 20cm,30cm, 40cm Compatible with 22-pin / 0.5 mm pitch CSI-2 connectors Flexible and easy routing through constrained spaces Suitable for robotic vision systems, wearable optics, inspection tools, and any embedded implementation where space is limited Technical specifications Number of lanes: 4 differential pairs Connector pitch: 0.5 mm (22-pin format) Cable width (post fan-out): 4mm Available lengths: 10,20,30,40cm Construction: 4 conductive layers + ground planes Crosstalk suppression: Enhanced by ground layers Impedance control: Yes (matched to CSI-2 interface) Applications and use cases This Slim FPC cable is ideal when minimal cross section and flexible routing are required. Typical deployment scenarios include: Vision modules in tight mechanical assemblies Cameras in wearable or curved form factors Inspection systems inside narrow housings Embedded or mobile platforms where routing space is constrained Its narrow width and controlled electrical performance make it a reliable choice for applications demanding both space efficiency and signal fidelity.

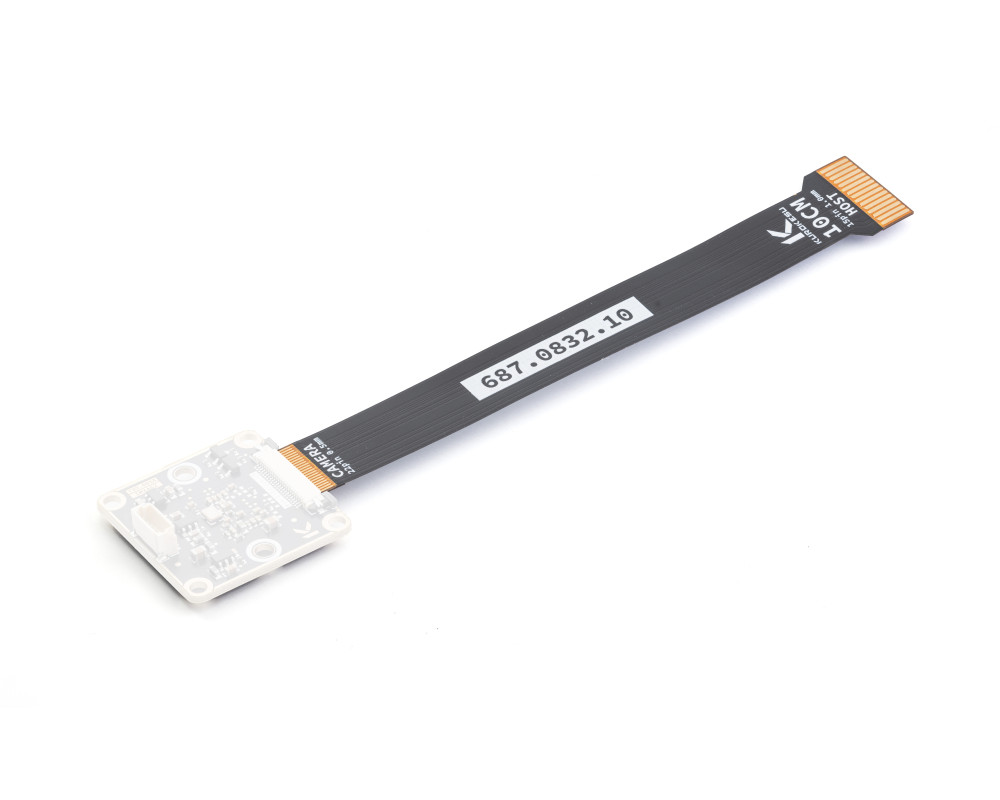

CSI2 FFC cable 22 to 15pin
Kurokesu CSI-2 FFC cable 22 to 15 pin is a custom 2 lane MIPI CSI-2 cable for connecting a 22-pin, 0.5 mm pitch camera module to a 15-pin, 1.0 mm pitch host connector. It is intended for systems where a 22-pin camera needs to interface with a 15-pin CSI host, making it a practical option for compatibility between newer camera modules and older 2 lane platforms. The cable keeps the connection simple and compact, and is well suited for embedded vision, prototyping, and integration work where the host side uses the 15-pin CSI format.

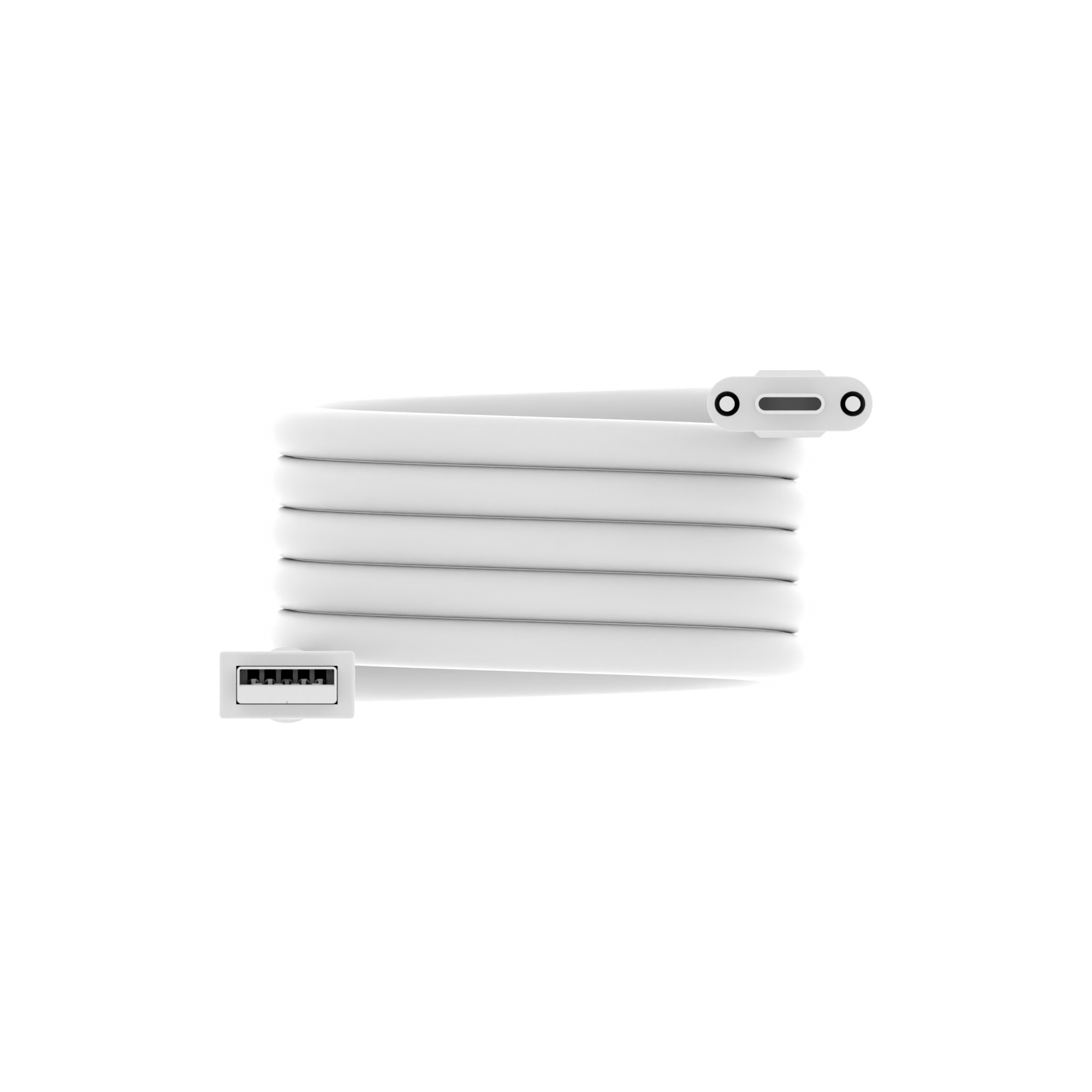

USB data cables
Kurokesu USB cables are custom made connection cables for cameras, controllers, and other embedded devices that require more than a generic off-the-shelf cable. The range includes USB 2.0 and USB 3.0 cables with lock screws, flexible USB-A to USB-C cables, specialized cables for C1 Micro cameras, and JST-GH based USB cables used across newer products such as C3 cameras and other modules. Depending on the model, cables are available in different lengths and connector formats to provide secure power and data connection for industrial, machine vision, embedded, and custom integration use. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
