MIPI CSI-2 Camera Modules
€145.20
CSI-2 camera modules are compact 4-lane MIPI CSI-2 cameras for Raspberry Pi and Jetson platforms. The family uses a standard 22-pin 0.5 mm CSI-2 connector together with a dedicated 5-pin connector for synchronization signals, and the modules share the same 26 × 26 mm board format across the range.
Sensor options cover different imaging priorities within the same mechanical platform: AR0234 for global-shutter high-speed capture, IMX462 for low-light 1080p imaging, IMX477 for 12.3 MP high-resolution video, AR0822 for 4K and HDR-capable systems, IMX283 for 20 MP 1-inch imaging, and IMX585 for very low-light 4K imaging. IMX585 is a 1/1.2-type 8.4 MP Sony STARVIS 2 sensor, and it is widely regarded for low-light work; outside embedded and industrial imaging, IMX585-based cameras are also commonly used in astronomy and discussed for EAA, planetary, and deep-sky imaging. Filter configuration varies by variant, including standard visible-light use, no-filter options, and other application-specific choices configured in the product selection. Suitable for embedded vision, robotics, machine vision, industrial inspection, and custom imaging systems where consistent mechanics and CSI-2 integration matter.

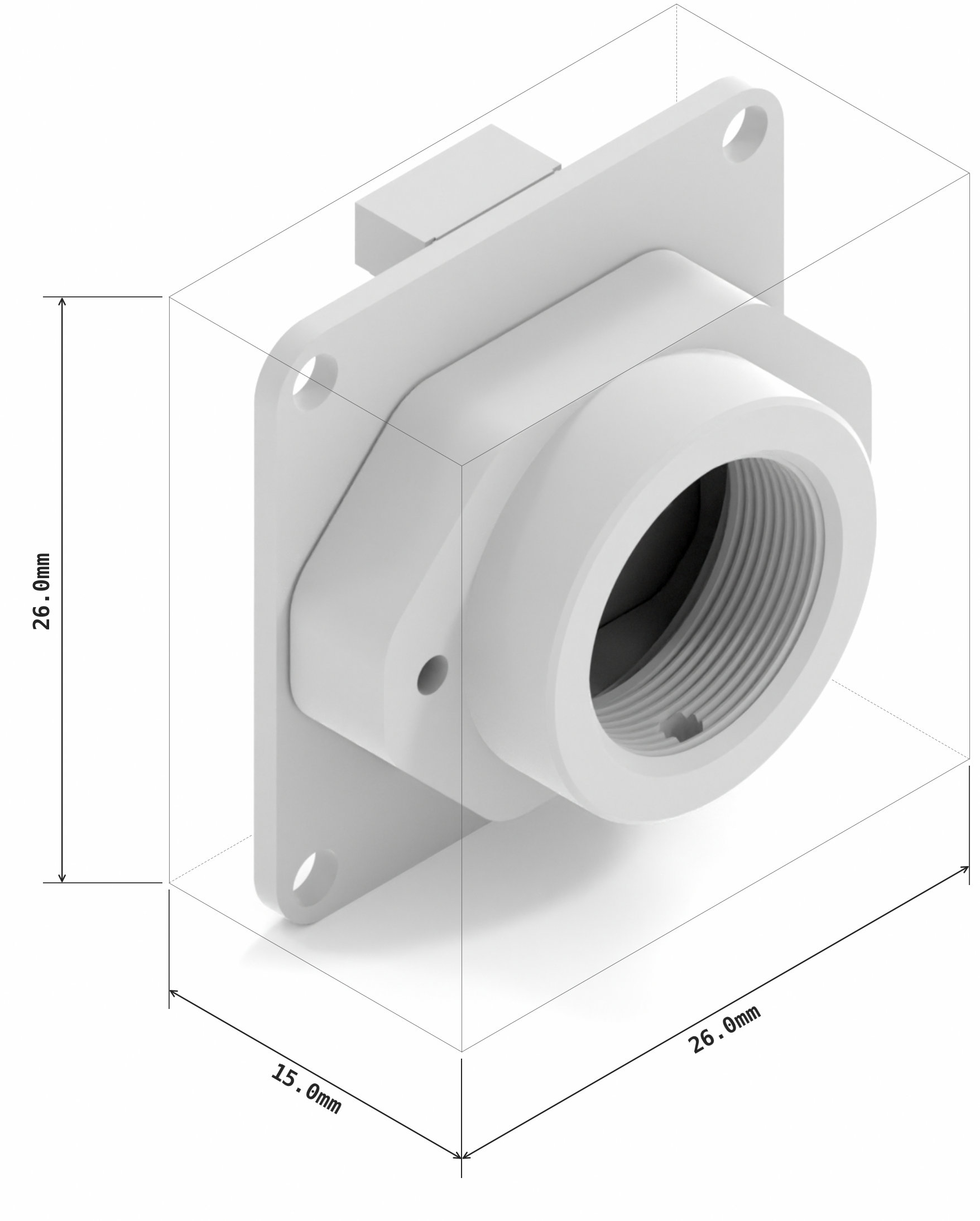

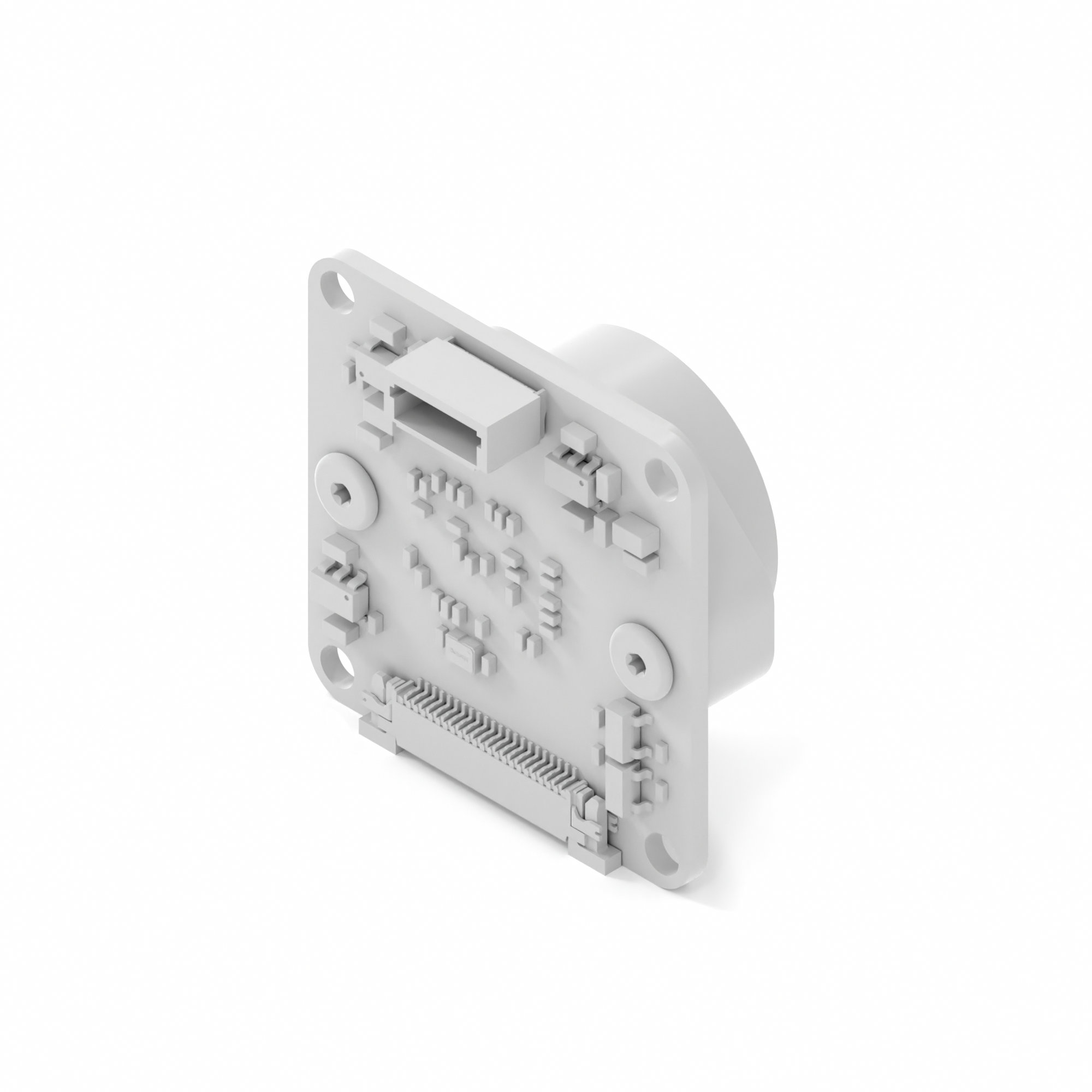

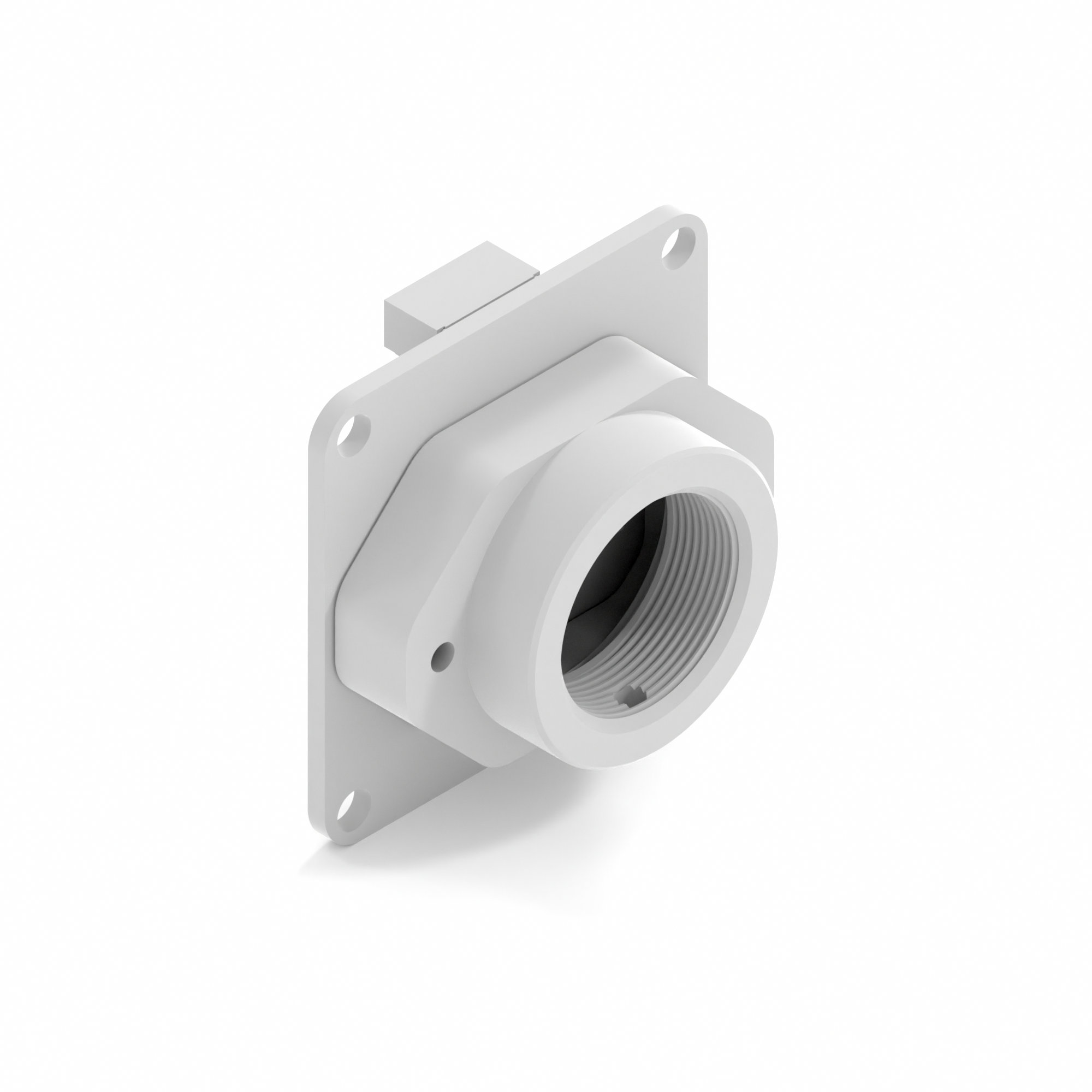

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Camera interface: | CSI-2 MIPI |
|---|---|
| Camera kind: | Board level |
| Chroma: | RGB |
| Filter: | NF |
| Image sensor: | AR0234 |
| Lens mount: | M12 |
| Sensor size: | 1/2.6" |
| HS CODE: | 8525 89 |
| Shutter: | Global shutter |
| Frame rate (fps): | 120 |
| Country Of Origin: | Lithuania |
| Resolution (MP): | 2 |
| ECCN: | EAR99 |
Accessories
Kurokesu I-PEX CSI-2 cable kits are designed for compact camera systems that need better cable durability, shielding, and routing flexibility than standard FFC cables. They adapt Kurokesu 22-pin, 0.5 mm pitch, 4-lane CSI-2 camera modules to the I-PEX CABLINE-UA II micro coax format, making them especially suitable for moving assemblies such as gimbals, robotic arms, inspection tools, and other space constrained embedded systems. The kit is available as adapter boards only or with optional 20 cm or 30 cm micro coax cable, giving flexibility for different mechanical layouts and integration needs. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
Kurokesu Slim FPC cables are compact impedance controlled flexible printed cables for MIPI CSI-2 camera connections. With a 4 mm width and a 4 layer construction with dedicated ground planes, they are designed for compact assemblies where signal integrity, reduced crosstalk, and predictable routing matter. They use the 22-pin, 0.5 mm pitch format used by Kurokesu CSI-2 camera modules, with all four CSI-2 lanes routed. Compared with standard FFC cables, the slim format is aimed at applications where installation space is limited but a flat flexible interconnect is still preferred over micro coax. This makes them a practical option for embedded vision systems, robotic assemblies, inspection equipment, and other compact high speed imaging setups. Available lengths currently include 10 cm, 20 cm, 30 cm, and 40 cm. Key features 4-layer construction with controlled impedance Dedicated ground planes for reduced crosstalk Width after fan-out: 4 mm Length options: 20cm,30cm, 40cm Compatible with 22-pin / 0.5 mm pitch CSI-2 connectors Flexible and easy routing through constrained spaces Suitable for robotic vision systems, wearable optics, inspection tools, and any embedded implementation where space is limited Technical specifications Number of lanes: 4 differential pairs Connector pitch: 0.5 mm (22-pin format) Cable width (post fan-out): 4mm Available lengths: 10,20,30,40cm Construction: 4 conductive layers + ground planes Crosstalk suppression: Enhanced by ground layers Impedance control: Yes (matched to CSI-2 interface) Applications and use cases This Slim FPC cable is ideal when minimal cross section and flexible routing are required. Typical deployment scenarios include: Vision modules in tight mechanical assemblies Cameras in wearable or curved form factors Inspection systems inside narrow housings Embedded or mobile platforms where routing space is constrained Its narrow width and controlled electrical performance make it a reliable choice for applications demanding both space efficiency and signal fidelity.
