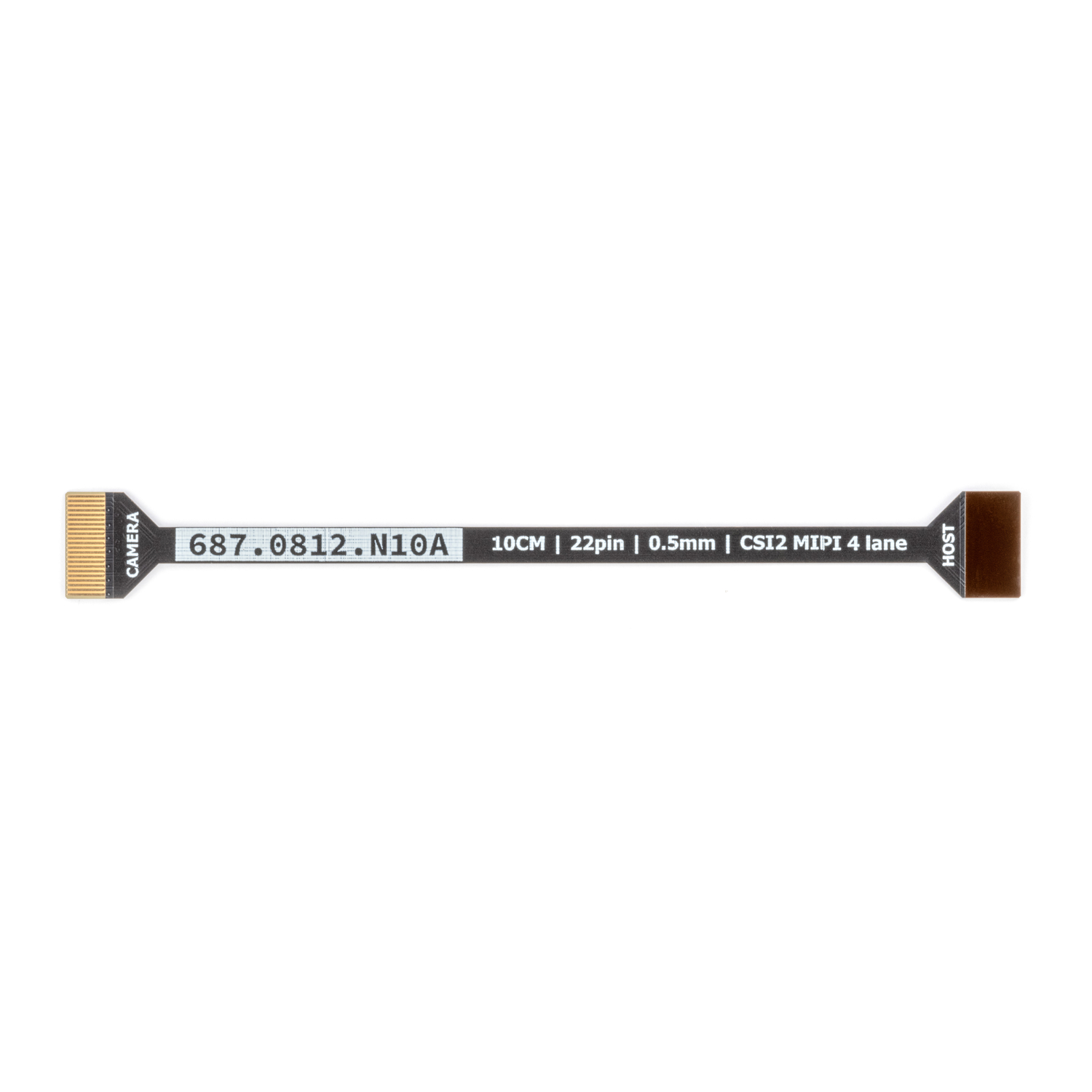

10cm slim CSI2 FFC cable 22pin/0.5mm
€18.15
Kurokesu Slim FPC cables are compact impedance controlled flexible printed cables for MIPI CSI-2 camera connections. With a 4 mm width and a 4 layer construction with dedicated ground planes, they are designed for compact assemblies where signal integrity, reduced crosstalk, and predictable routing matter. They use the 22-pin, 0.5 mm pitch format used by Kurokesu CSI-2 camera modules, with all four CSI-2 lanes routed.
Compared with standard FFC cables, the slim format is aimed at applications where installation space is limited but a flat flexible interconnect is still preferred over micro coax. This makes them a practical option for embedded vision systems, robotic assemblies, inspection equipment, and other compact high speed imaging setups. Available lengths currently include 10 cm, 20 cm, 30 cm, and 40 cm.
Key features
- 4-layer construction with controlled impedance
- Dedicated ground planes for reduced crosstalk

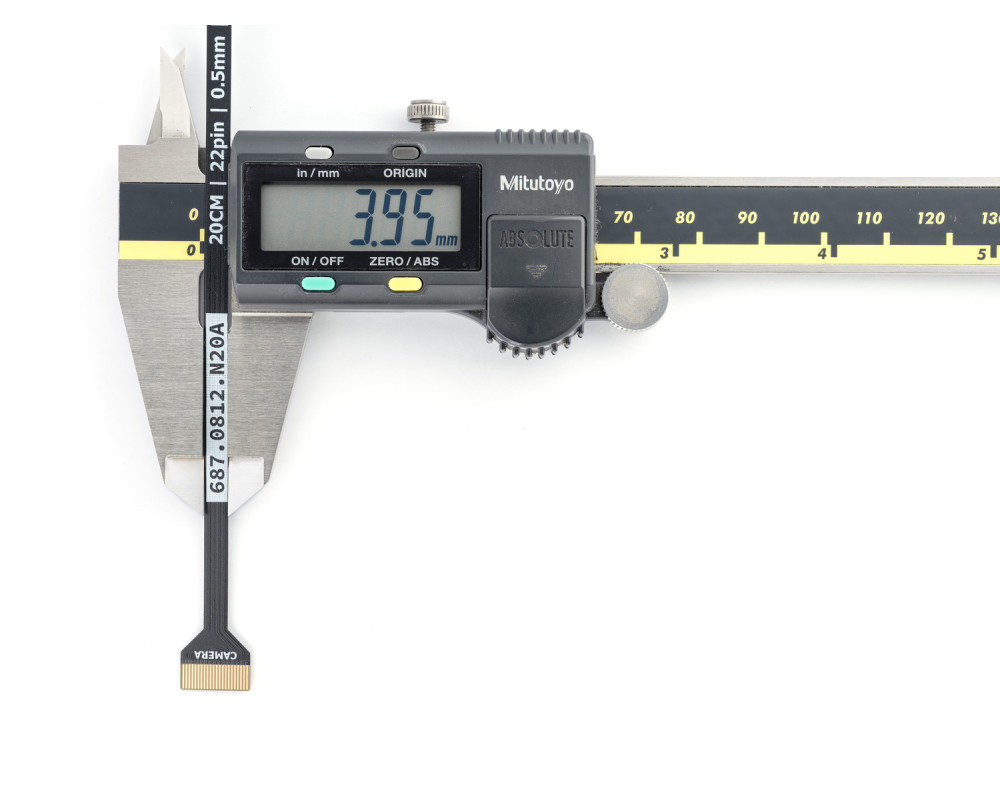

- Width after fan-out: 4 mm
- Length options: 20cm,30cm, 40cm

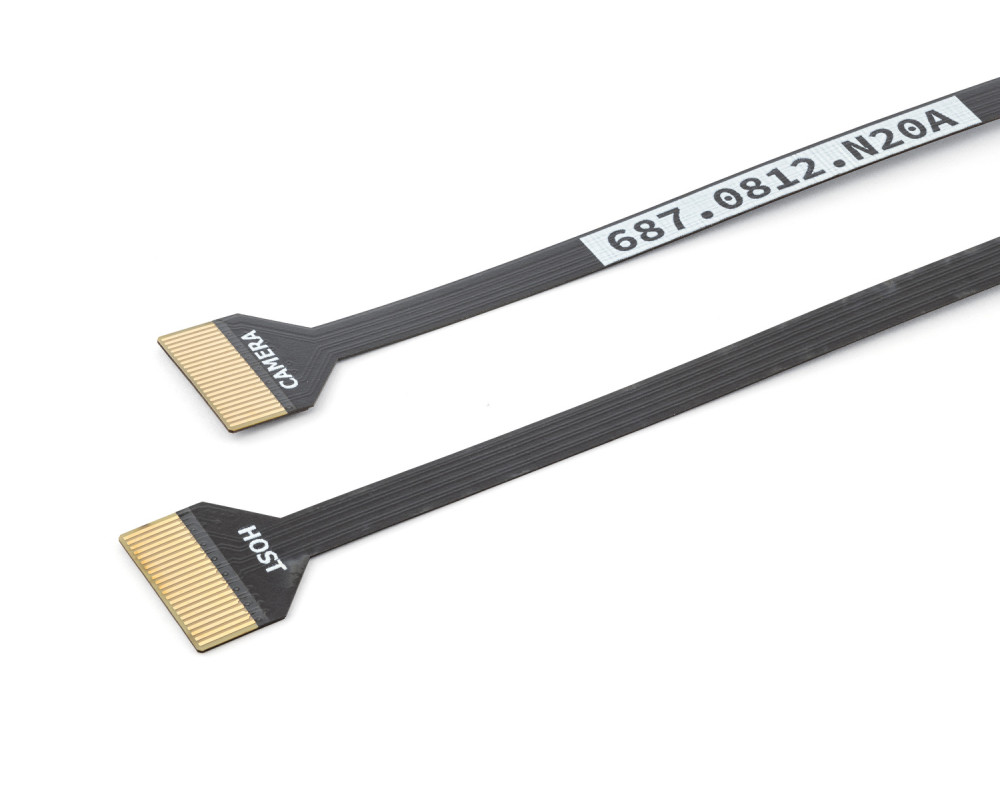

- Compatible with 22-pin / 0.5 mm pitch CSI-2 connectors
- Flexible and easy routing through constrained spaces
- Suitable for robotic vision systems, wearable optics, inspection tools, and any embedded implementation where space is limited
Technical specifications
- Number of lanes: 4 differential pairs
- Connector pitch: 0.5 mm (22-pin format)
- Cable width (post fan-out): 4mm
- Available lengths: 10,20,30,40cm
- Construction: 4 conductive layers + ground planes
- Crosstalk suppression: Enhanced by ground layers
- Impedance control: Yes (matched to CSI-2 interface)
Applications and use cases
This Slim FPC cable is ideal when minimal cross section and flexible routing are required. Typical deployment scenarios include:

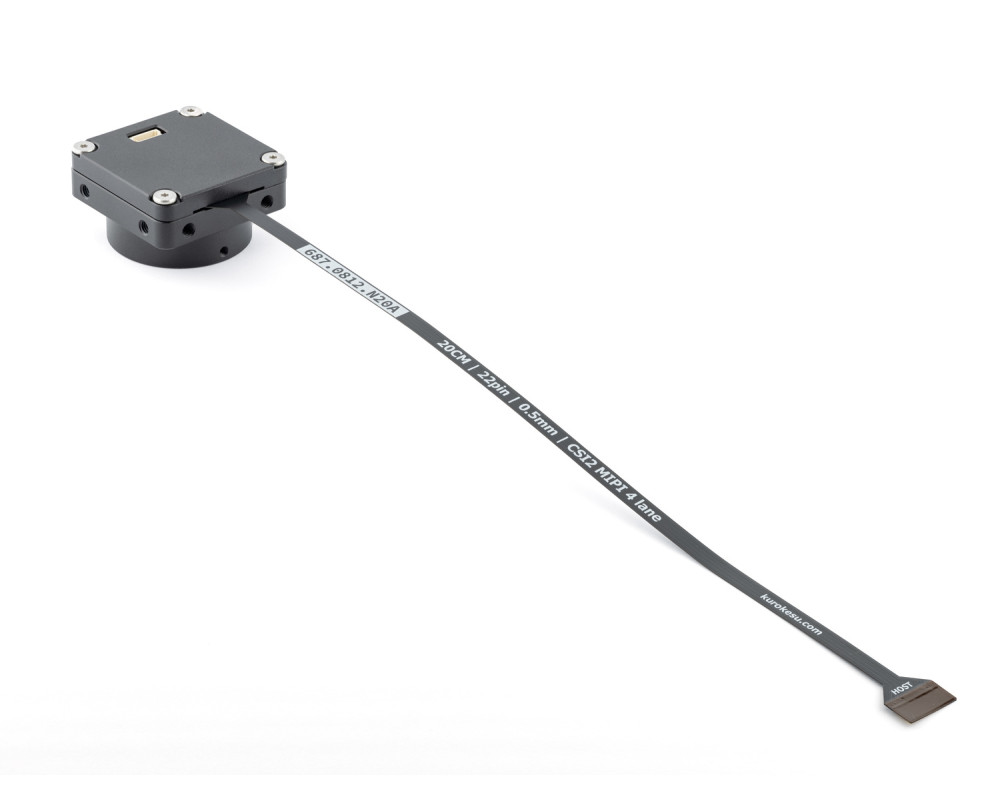

- Vision modules in tight mechanical assemblies
- Cameras in wearable or curved form factors
- Inspection systems inside narrow housings

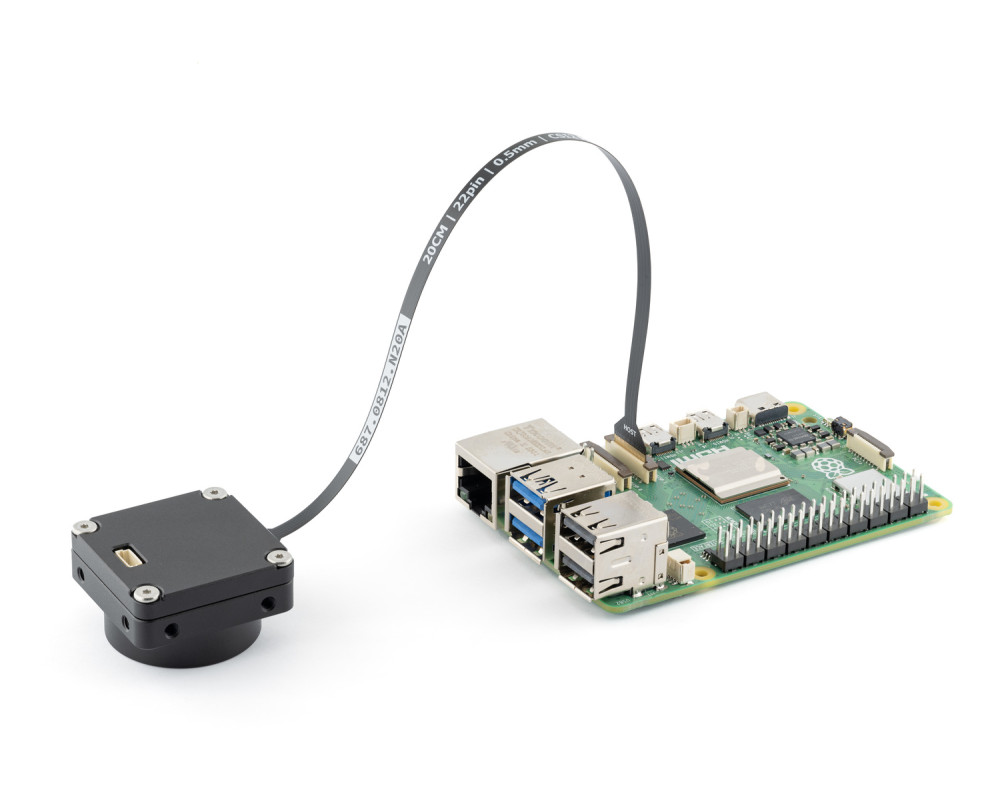

- Embedded or mobile platforms where routing space is constrained
Its narrow width and controlled electrical performance make it a reliable choice for applications demanding both space efficiency and signal fidelity.
- 4-layer construction with controlled impedance
- Dedicated ground planes for reduced crosstalk
- Width after fan-out: 4 mm
- Length options: 20cm,30cm, 40cm
- Compatible with 22-pin / 0.5 mm pitch CSI-2 connectors
- Flexible and easy routing through constrained spaces
- Suitable for robotic vision systems, wearable optics, inspection tools, and any embedded implementation where space is limited
| Parameter | Value |
| Number of lanes | 4 differential pairs |
| Connector pitch | 0.5 mm (22-pin format) |
| Cable width (post fan-out) | 4mm |
| Available lengths | 20,30,40cm |
| Construction | 4 conductive layers + ground planes |
| Crosstalk suppression | Enhanced by ground layers |
| Impedance control | Yes (matched to CSI-2 interface) |
This Slim FPC cable is ideal when minimal cross section and flexible routing are required. Typical deployment scenarios include:
- Vision modules in tight mechanical assemblies
- Cameras in wearable or curved form factors
- Inspection systems inside narrow housings
- Embedded or mobile platforms where routing space is constrained
Its narrow width and controlled electrical performance make it a reliable choice for applications demanding both space efficiency and signal fidelity.
| Cable length: | 10cm |
|---|
