C2 USB camera (Board level, M12 lens mount)
€145.20
C2 is a USB camera family built around the Sony IMX290 sensor and intended for applications that need a compact UVC compatible camera with interchangeable optics. The family includes boxed CS-mount cameras and board-level M12 variants within the same platform. C2 supports H.264, MJPEG, and YUY2 output formats, together with manual image controls such as exposure, white balance, gain, gamma, backlight compensation, sharpness, contrast, saturation, hue, brightness, and anti-flicker settings. Filter configuration depends on the selected variant and includes standard visible light use, no filter, and other interchangeable filter options. Suitable for embedded vision, robotics, machine vision, teleconferencing, remote learning, and other custom imaging systems where lens choice, compression format, and stable USB integration matter.

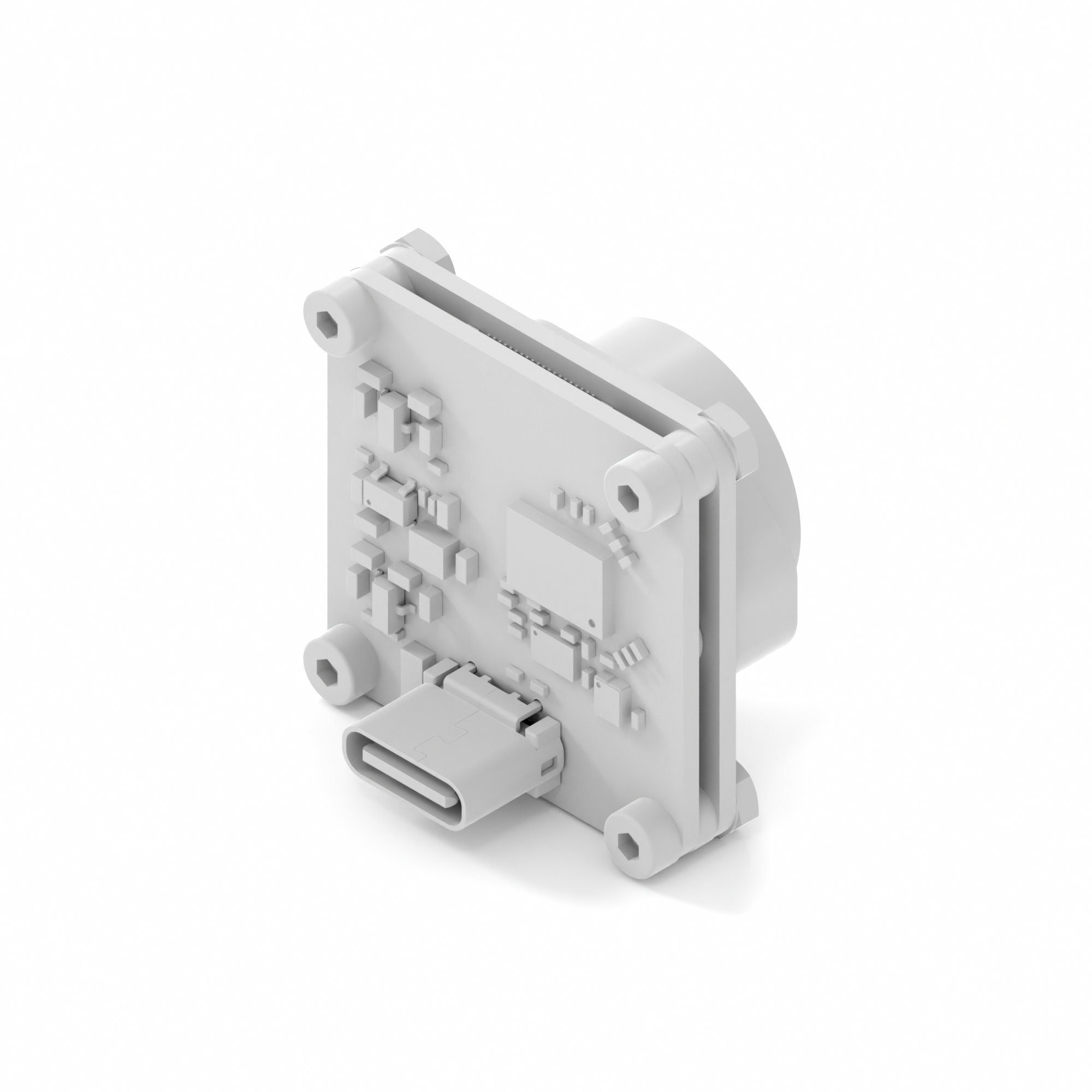

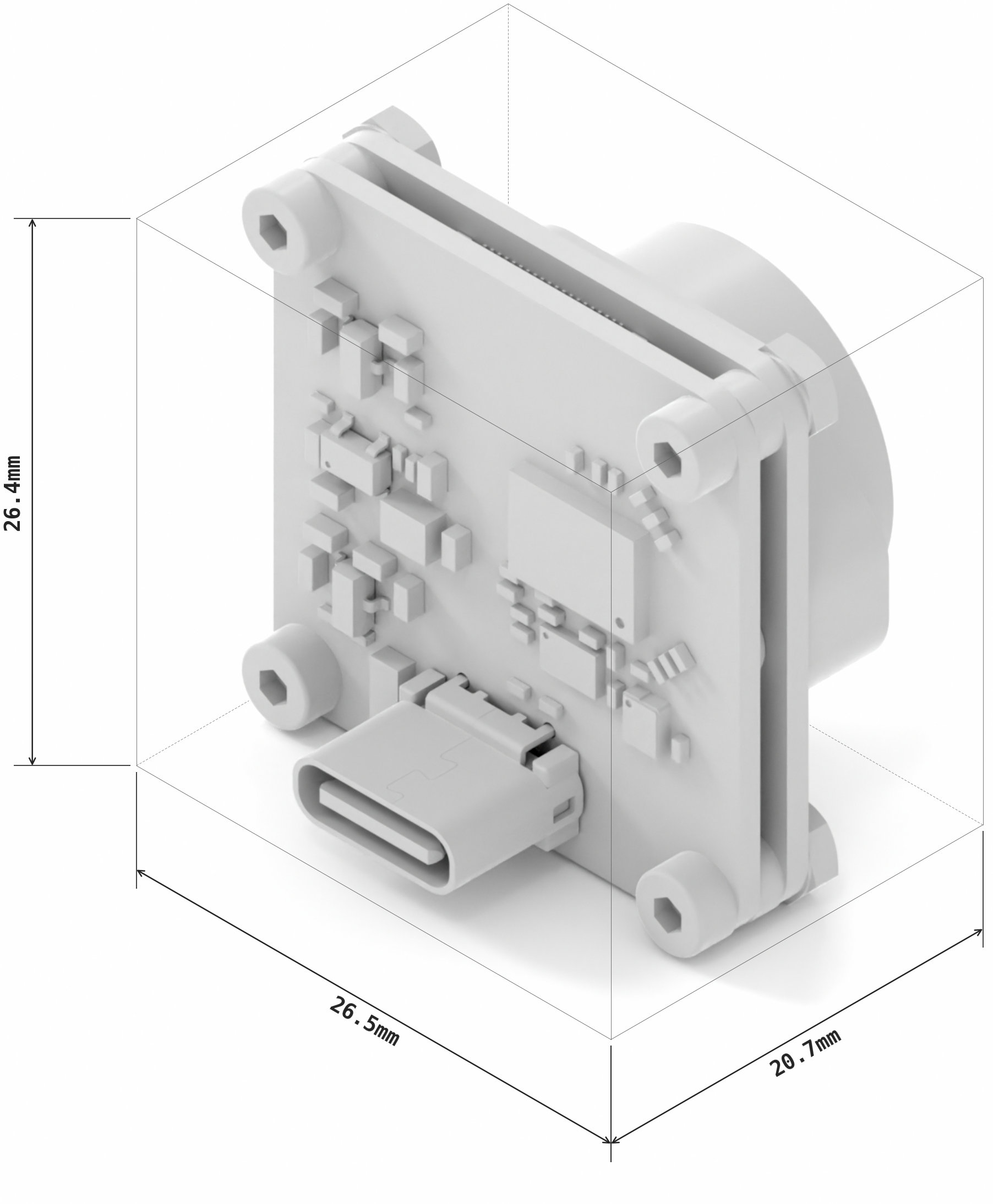

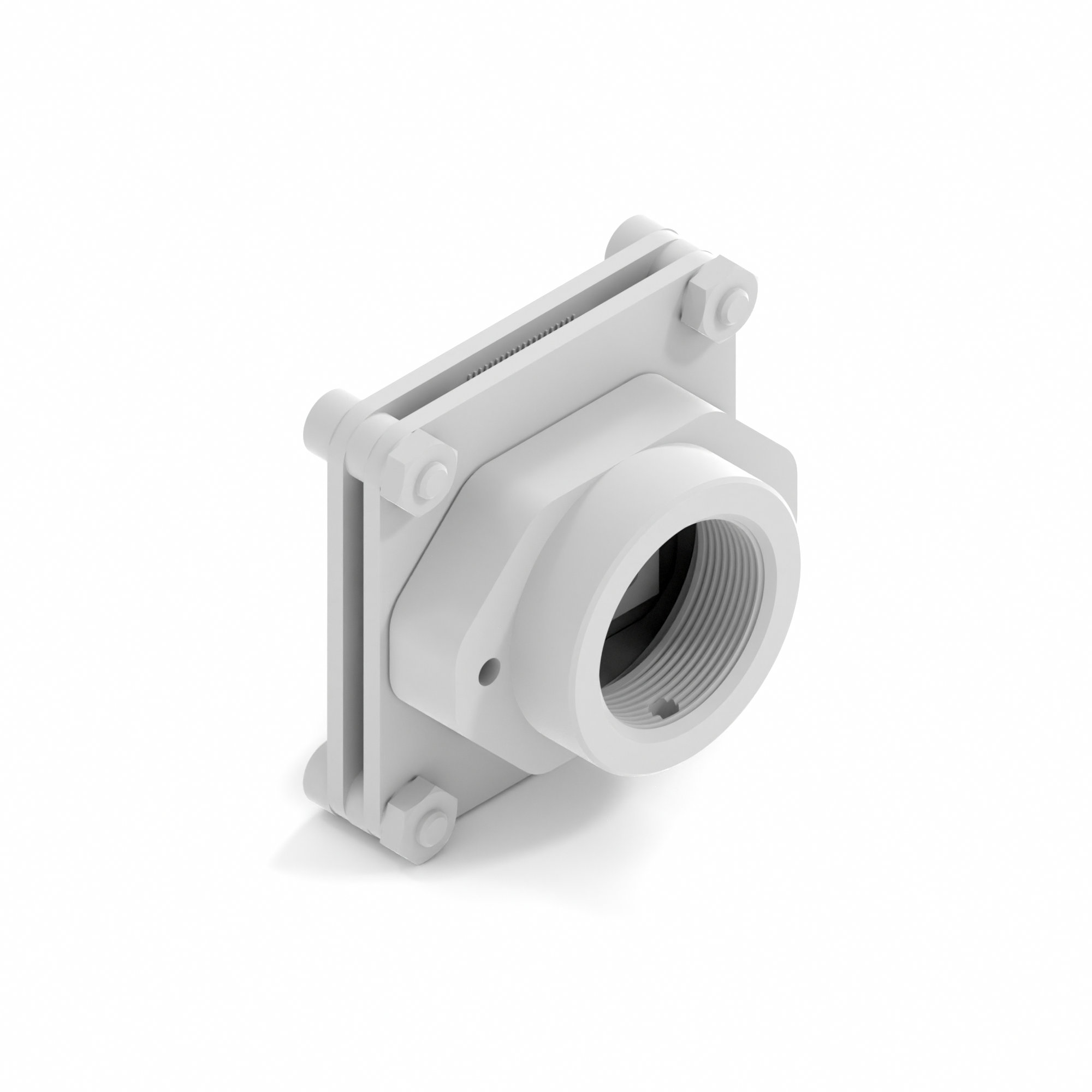

Selected configuration preview and CAD models

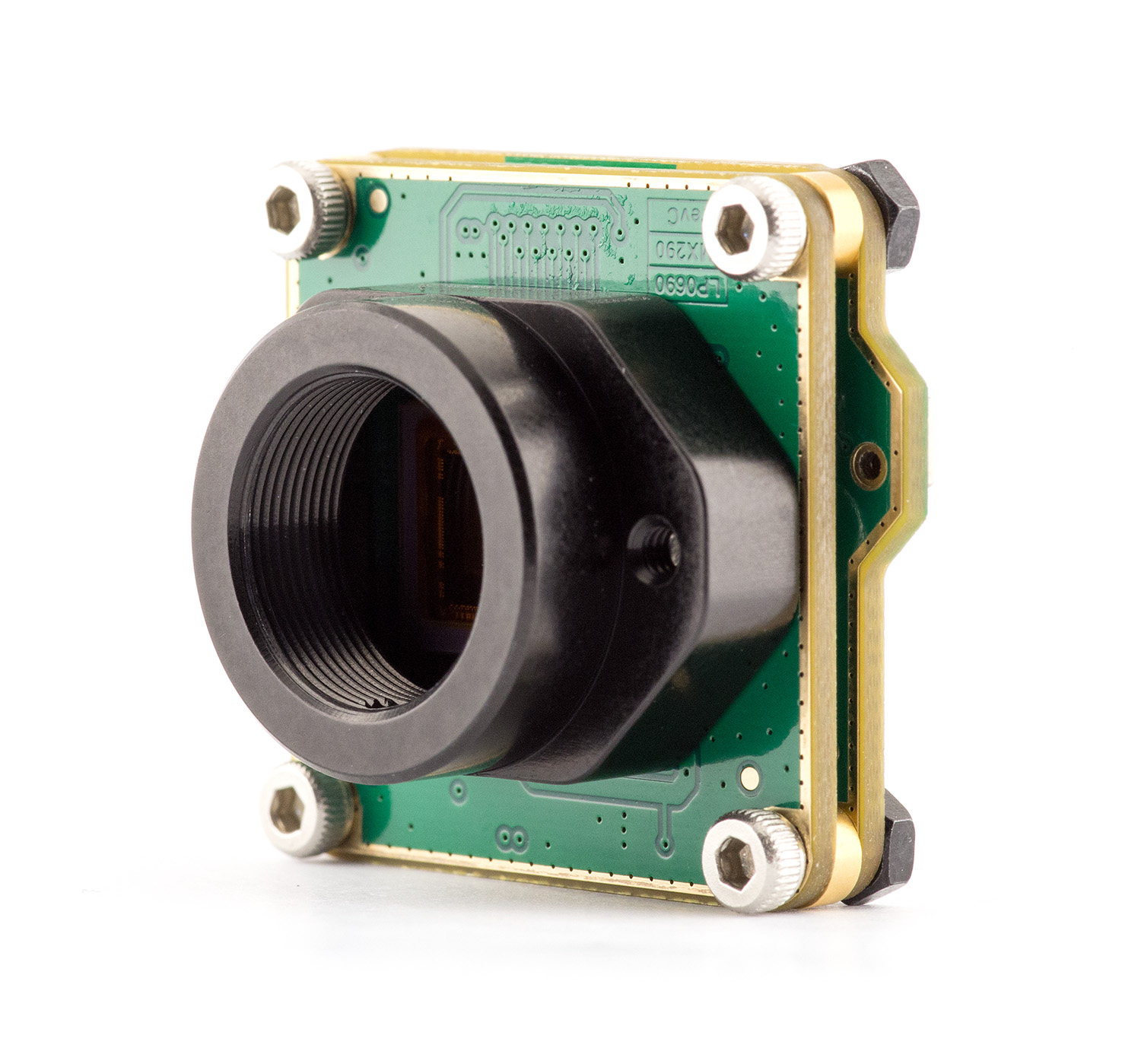

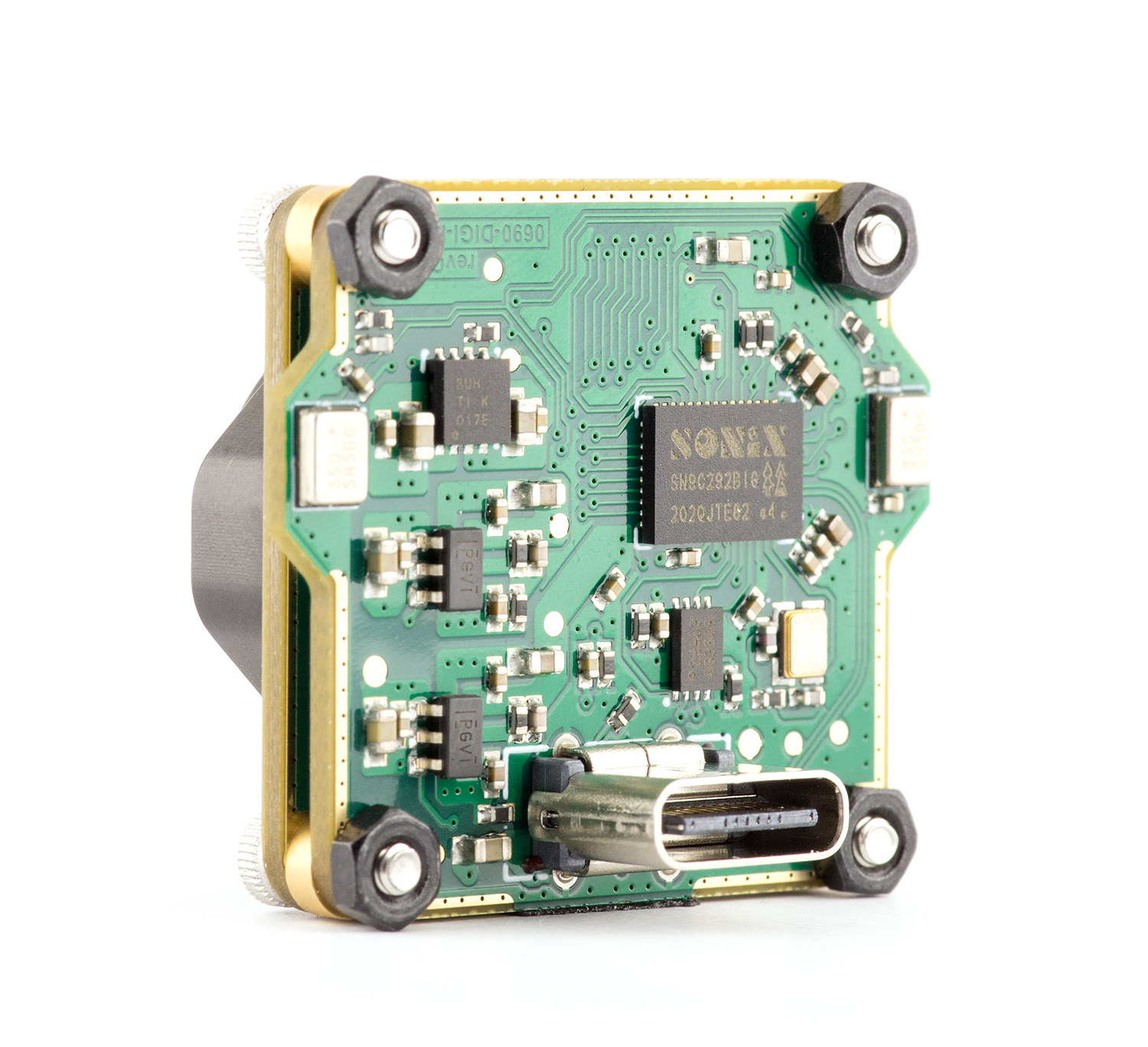

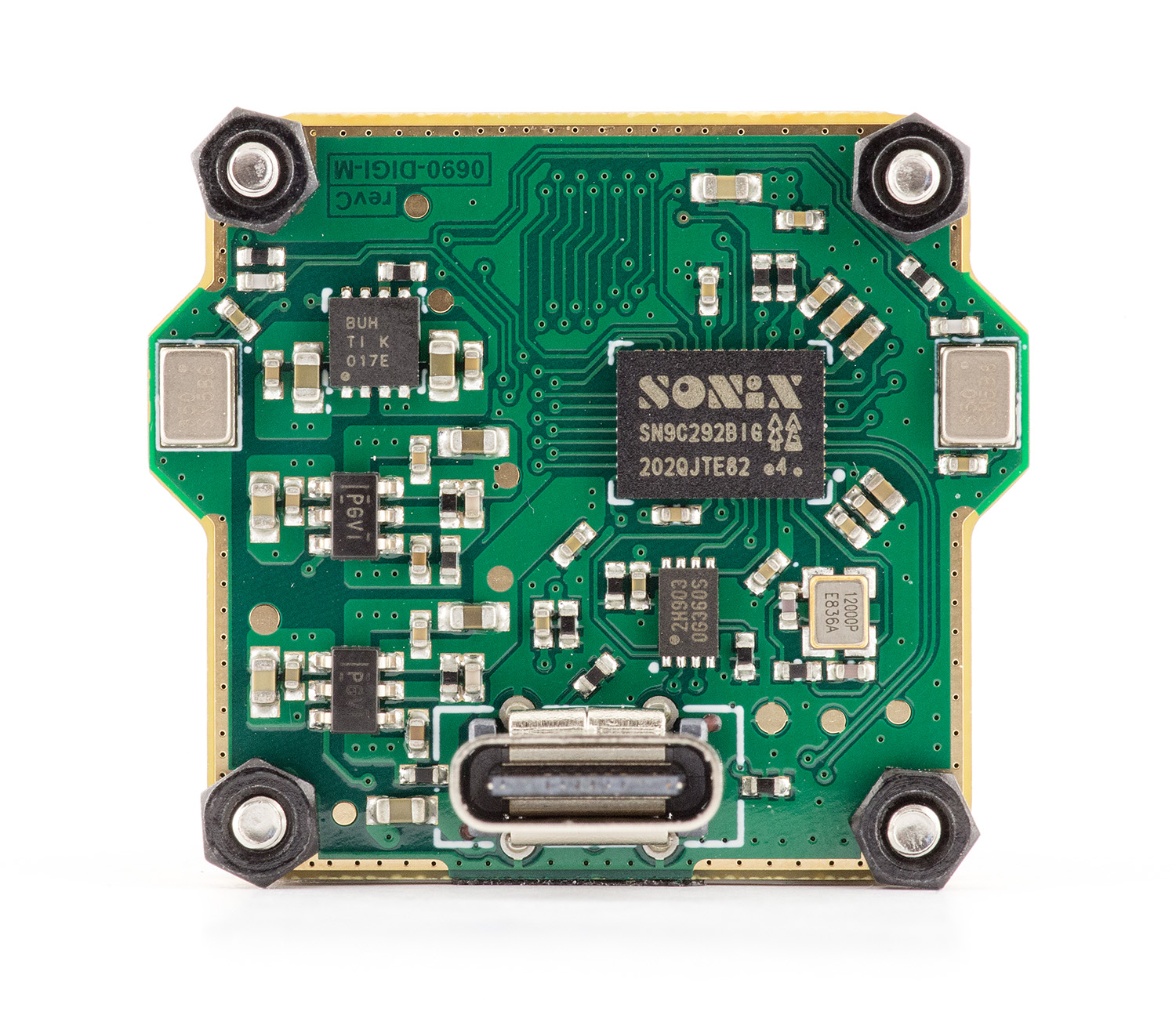

Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Camera interface: | USB-C 2.0 |
|---|---|
| Camera kind: | Board level |
| Chroma: | RGB |
| Filter: | NF |
| Image sensor: | IMX290 |
| Lens mount: | M12 |
| Sensor size: | 1/2.8" |
| HS CODE: | 8525 89 |
| Shutter: | Rolling shutter |
| Frame rate (fps): | 30 |
| Country Of Origin: | Lithuania |
| Resolution (MP): | 2 |
| ECCN: | EAR99 |
