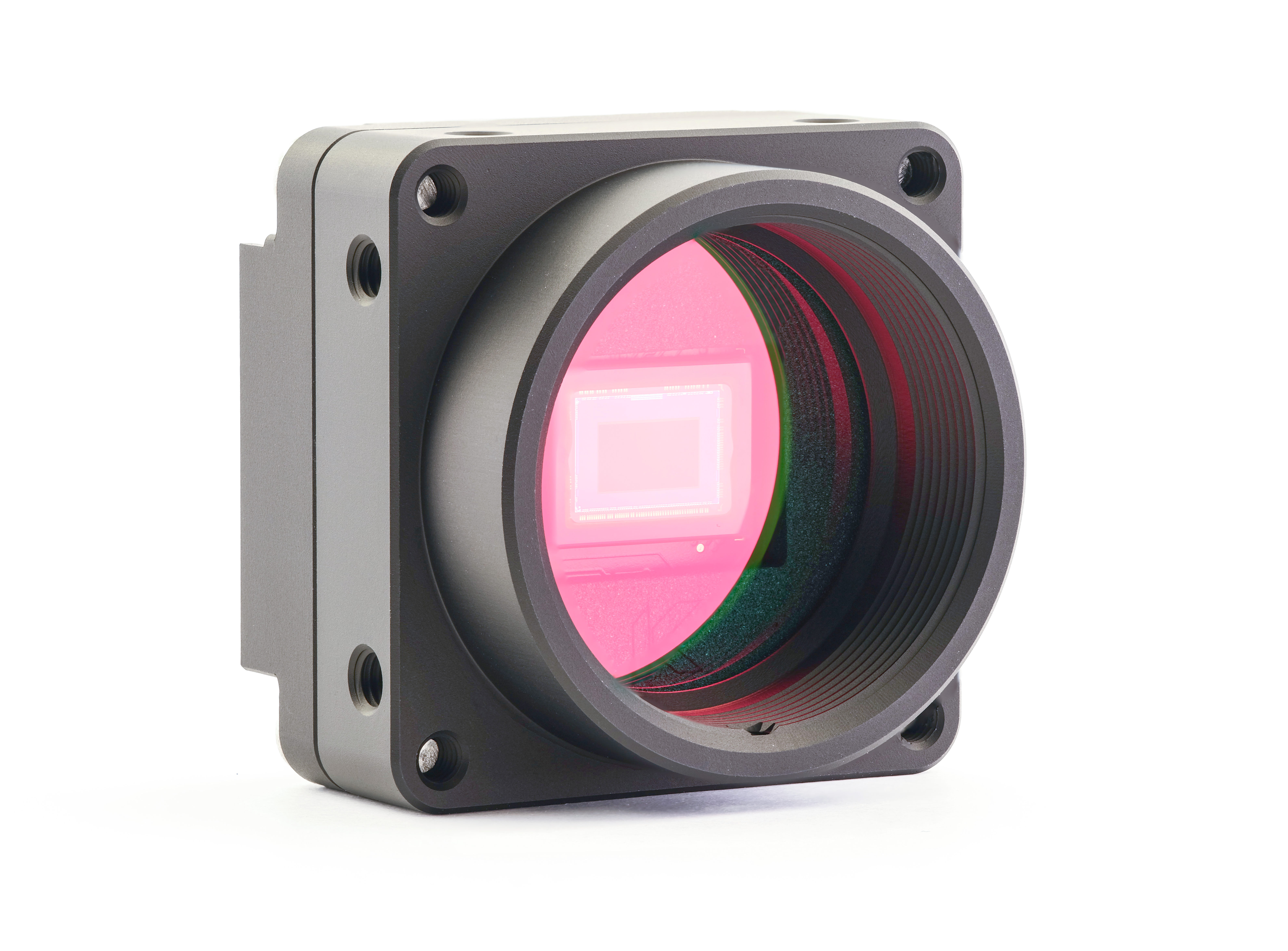

C2 USB camera (CS mount, IRCUT filter, Boxed)
€220.22
C2 is a USB camera family built around the Sony IMX290 sensor and intended for applications that need a compact UVC compatible camera with interchangeable optics. The family includes boxed CS-mount cameras and board-level M12 variants within the same platform. C2 supports H.264, MJPEG, and YUY2 output formats, together with manual image controls such as exposure, white balance, gain, gamma, backlight compensation, sharpness, contrast, saturation, hue, brightness, and anti-flicker settings. Filter configuration depends on the selected variant and includes standard visible light use, no filter, and other interchangeable filter options. Suitable for embedded vision, robotics, machine vision, teleconferencing, remote learning, and other custom imaging systems where lens choice, compression format, and stable USB integration matter.

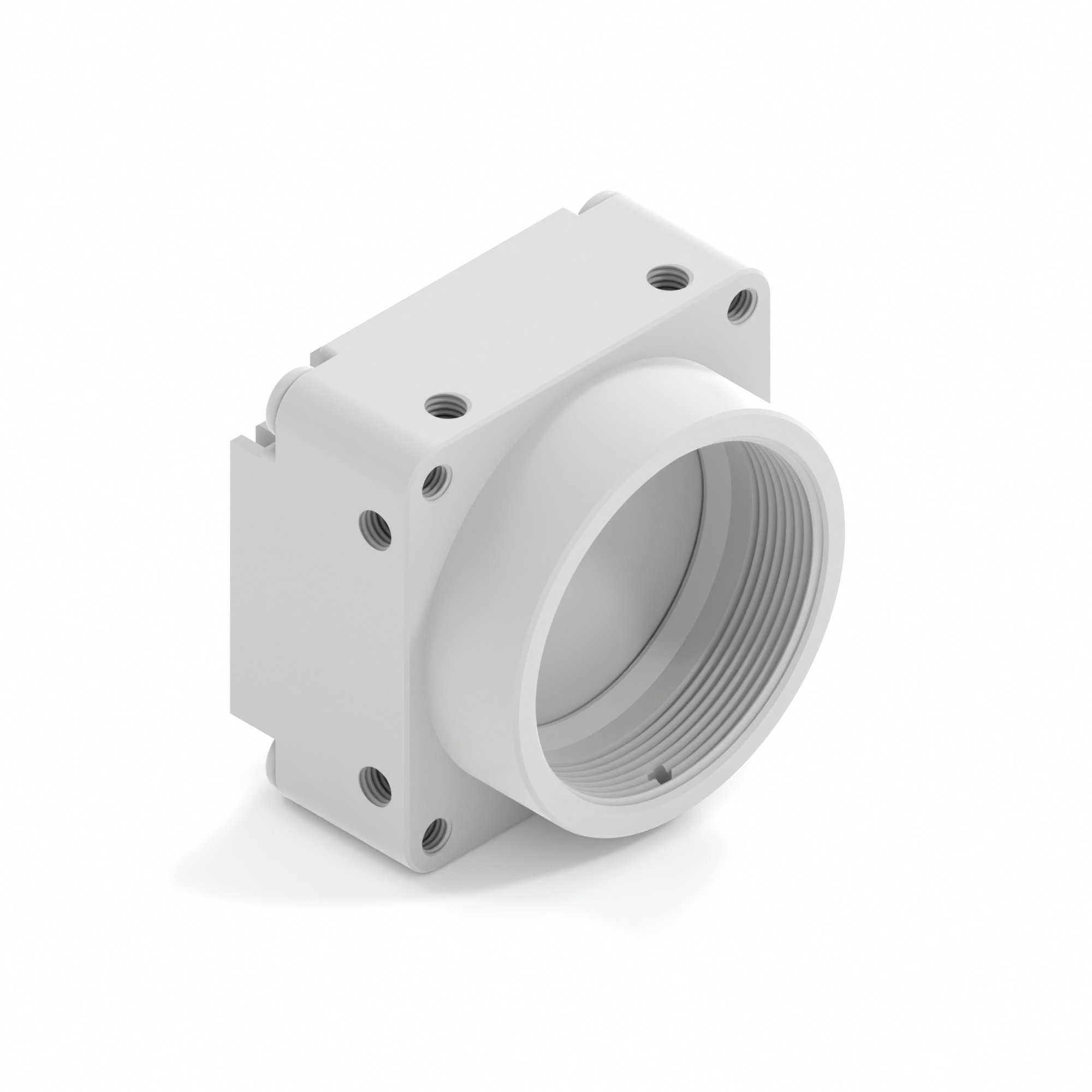

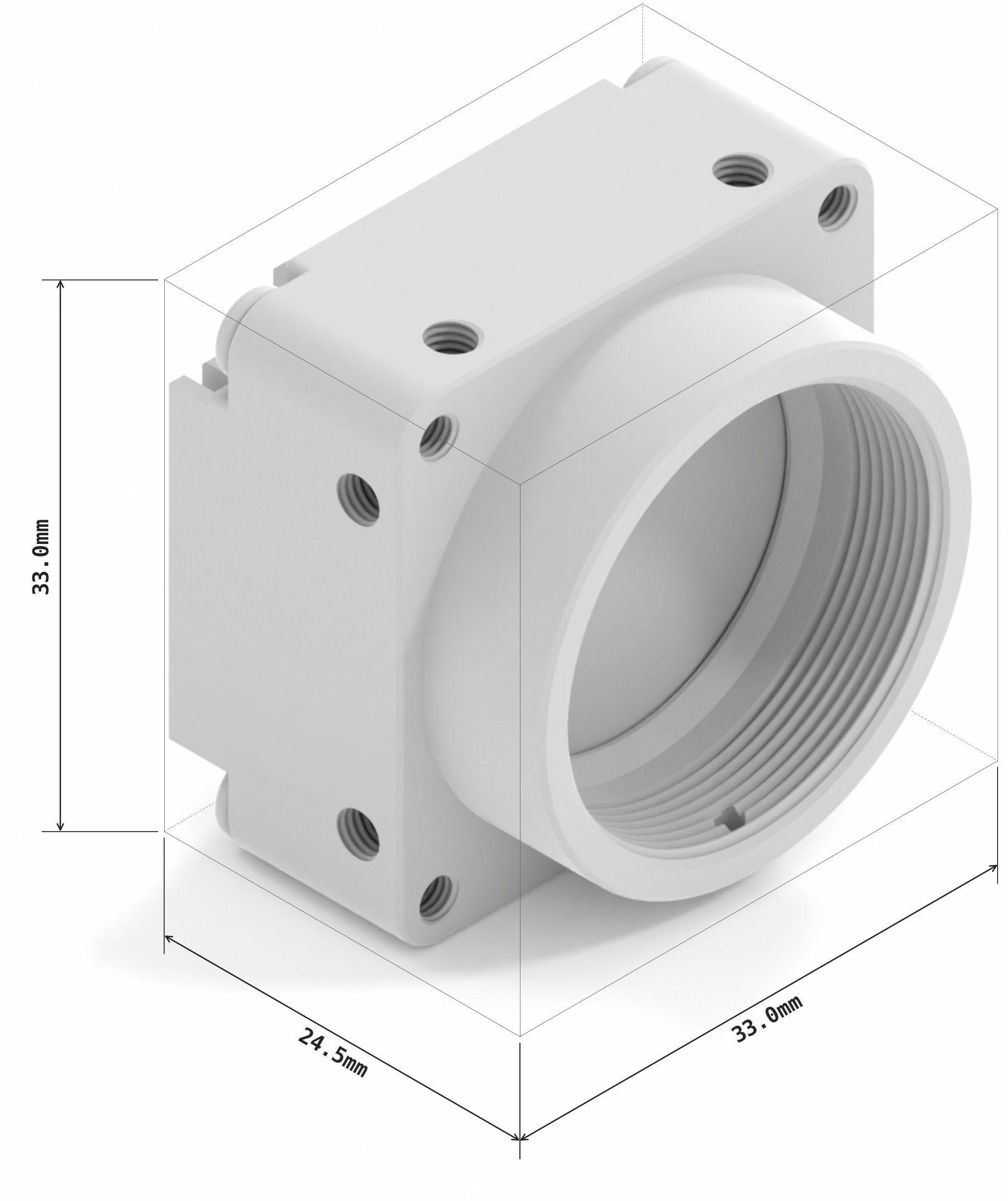

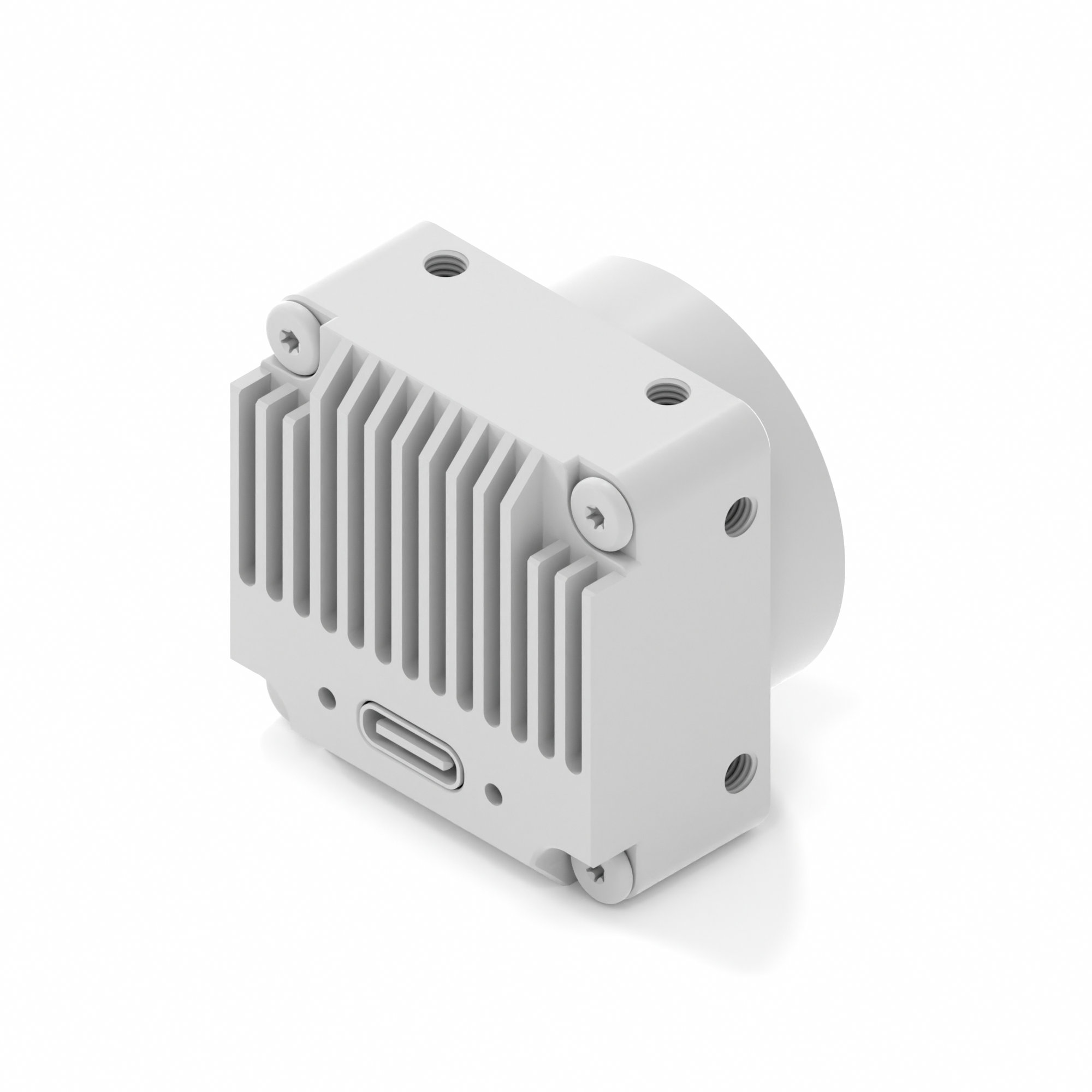

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-04-11 - SKU C2_USBC changed to C2-290C to streamline product naming.
| Camera interface: | USB-C 2.0 |
|---|---|
| Camera kind: | Boxed |
| Chroma: | RGB |
| Filter: | IRCUT |
| Image sensor: | IMX290 |
| Lens mount: | CS |
| Sensor size: | 1/2.8" |
| HS CODE: | 8525 89 |
| Shutter: | Rolling shutter |
| Frame rate (fps): | 30 |
| Country Of Origin: | Lithuania |
| Resolution (MP): | 2 |
| ECCN: | EAR99 |
Accessories
Tripod and Arca-Swiss mount plate kit for C2 and C3 cameras. It moves the larger mounting features away from the camera body, allowing a more compact camera design while still providing tripod and Arca-Swiss compatible mounting. The kit includes an aluminium mount plate, 2x DIN912 M3x6 screws, 1x DIN912 M2.5x5 screw, and L-shaped Allen keys. The current design also includes M3 threaded holes for side mounting. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
Kurokesu USB-A to USB-C cables with lock screws are custom-made cables for cameras and other devices that need a more secure USB connection than standard consumer cables provide. The USB-C connector uses lock screws to help prevent accidental disconnects in systems exposed to vibration, motion, or repeated handling. Available in USB 2.0 and USB 3.0 versions depending on model, these cables are intended for industrial, machine vision, embedded, and other integration-focused applications where connection stability matters. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
