EOL 8mm CS lens
€75.02
8 mm fixed focal length CS-mount lens for up to 1/1.7" sensors. The lens provides a 72.6° diagonal angle of view, making it suitable for applications that need a moderate wide angle field of view on larger sensors. Fixed focus and fixed iris design makes it a practical option for systems where the scene and working distance are defined in advance. Suitable for machine vision, robotics, CCTV, and other imaging systems.

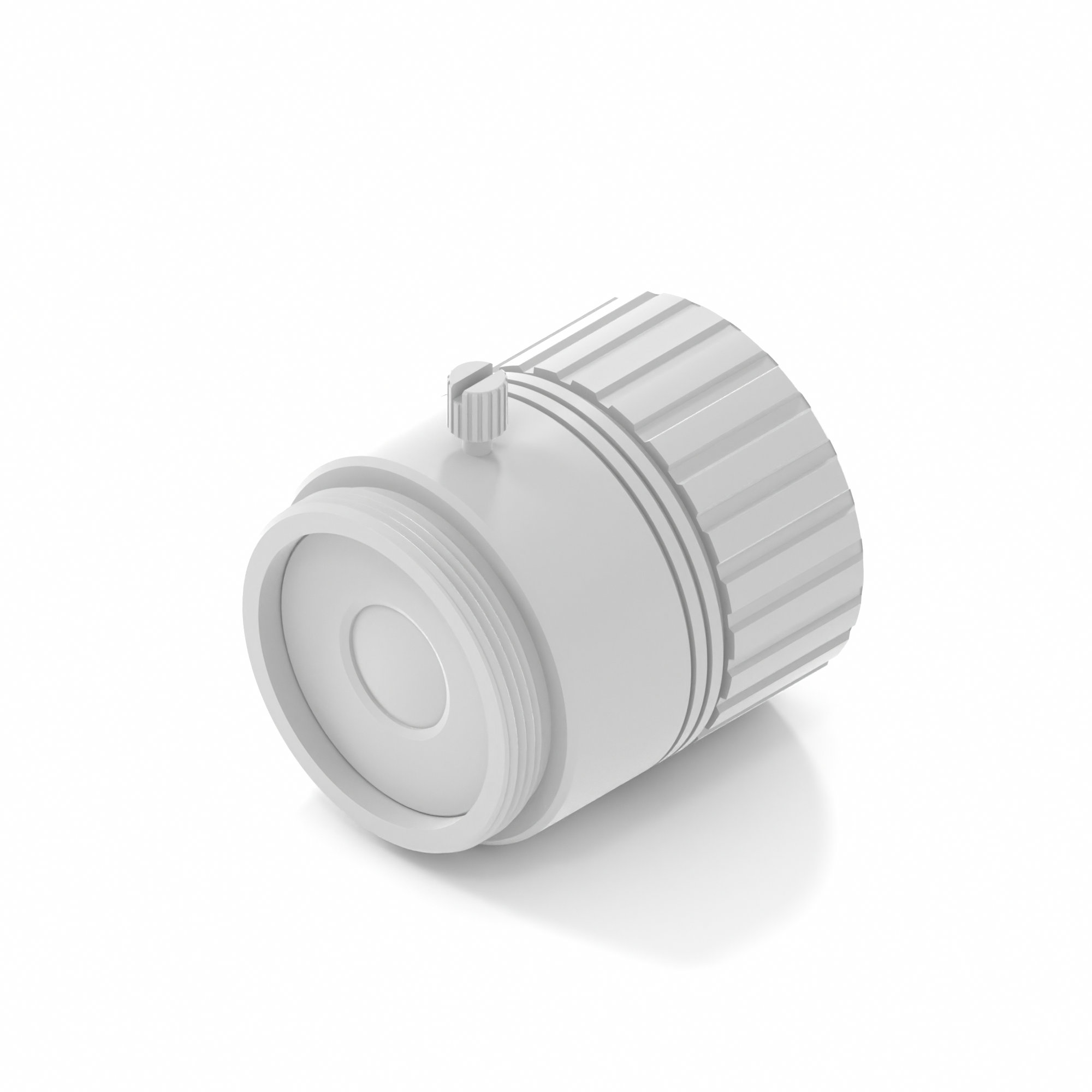

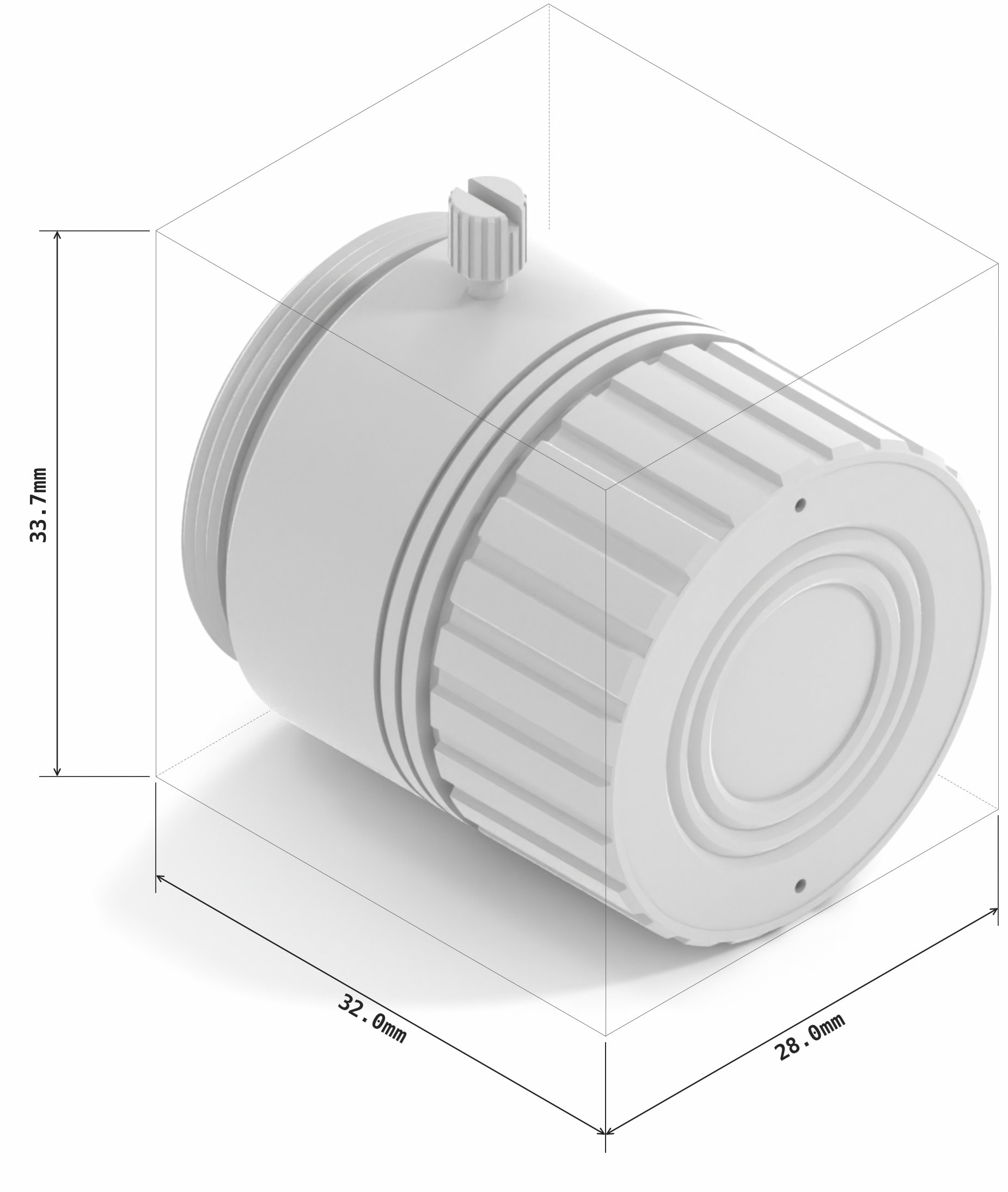

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-01-01 End of life, production was stopped.
| Aperture: | f/2.8 |
|---|---|
| Filter: | NF |
| Flange Focal Distance (mm): | 12.5 |
| Focal length (mm): | 8 |
| Image circle (in): | 1/1.7" |
| Lens controls: | Focus |
| Lens mount: | CS |
| Lens view angle (deg): | 72.6 |
| Megapixel rating: | 12 |
| Minimum Object Distance (m): | 0.3 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 30 |
