EOL 2.8-12mm CS-mount lens
€64.13
Out of stock
2.8–12 mm varifocal CS-mount lens for up to 1/2.7" sensors. The lens provides a diagonal angle of view from 137.8° at the wide end to 37.2° at the tele end, making it suitable for applications that need on-site adjustment from ultra wide coverage to a much narrower field of view. A practical option for machine vision, robotics, CCTV, and other imaging systems where framing needs to be tuned during setup. Manual iris, focus, and zoom controls support straightforward integration in fixed installations.

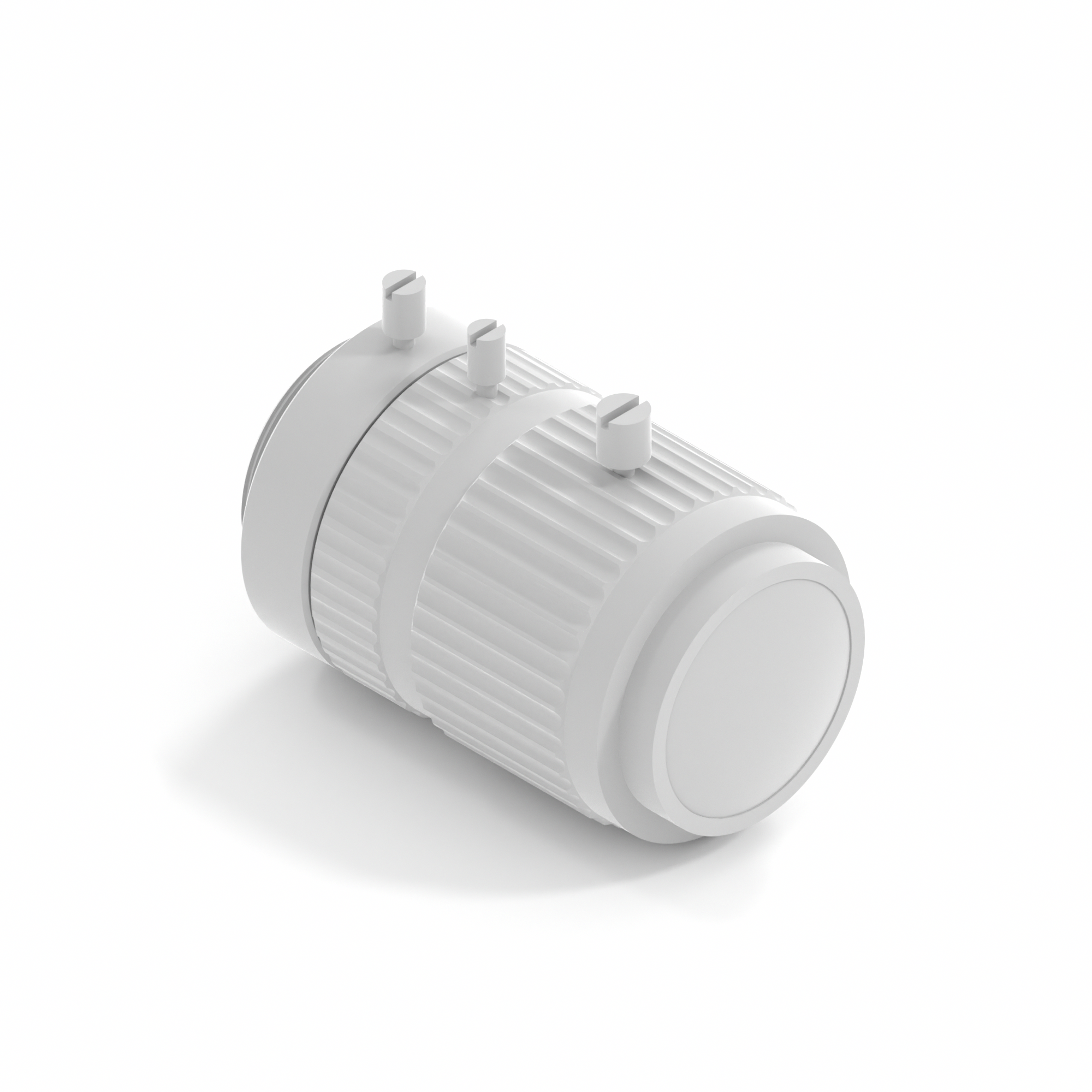

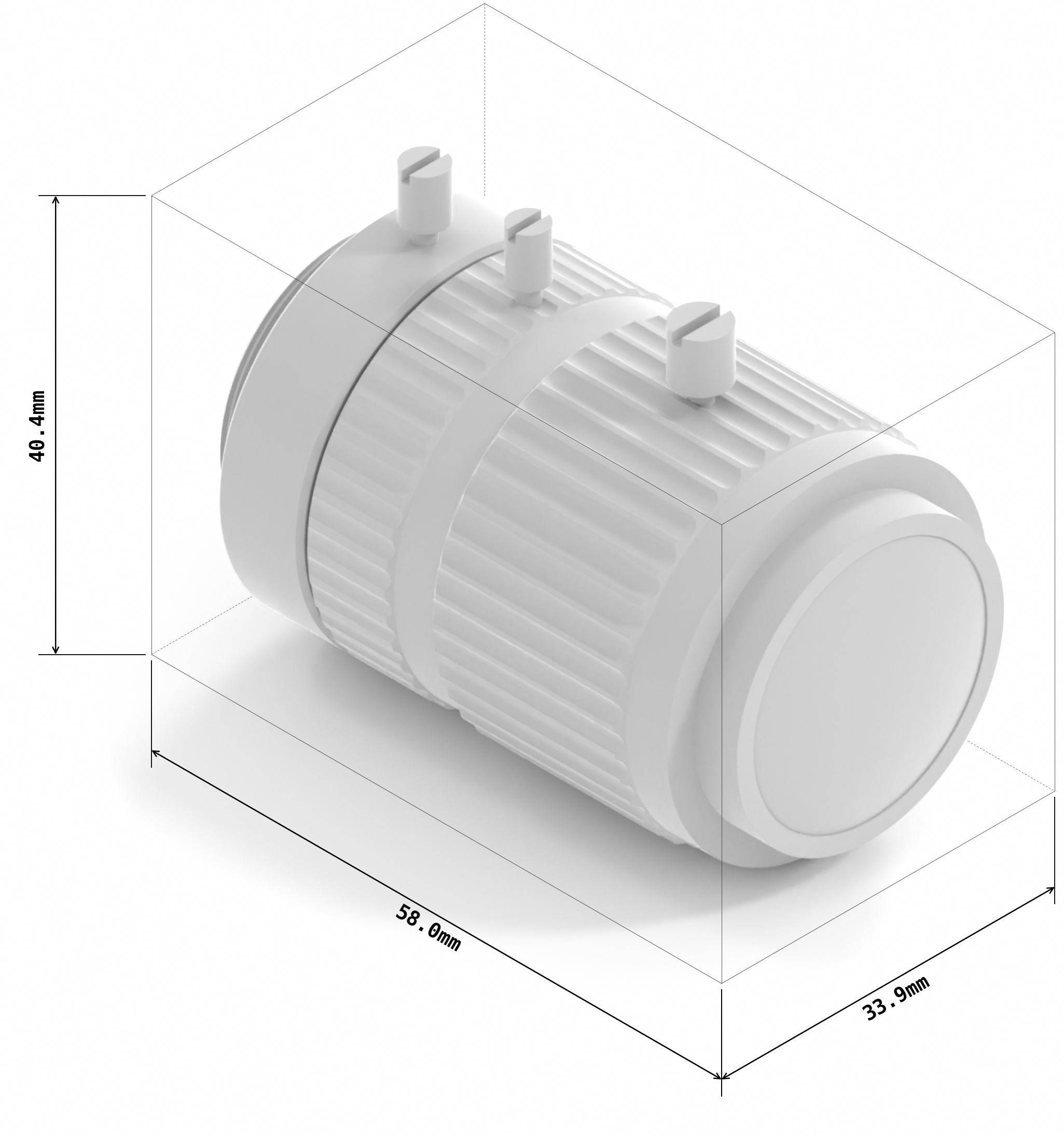

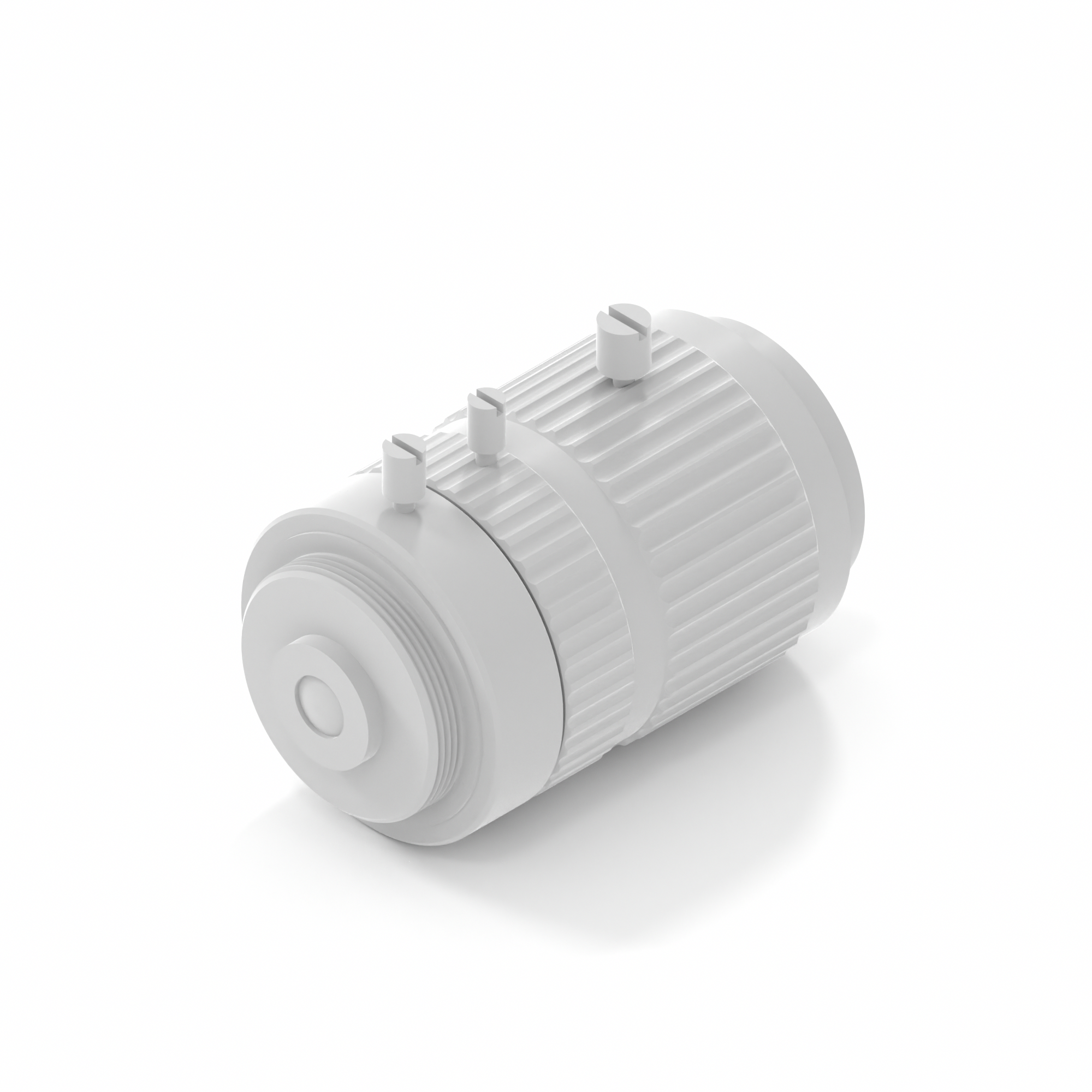

Selected configuration preview and CAD models

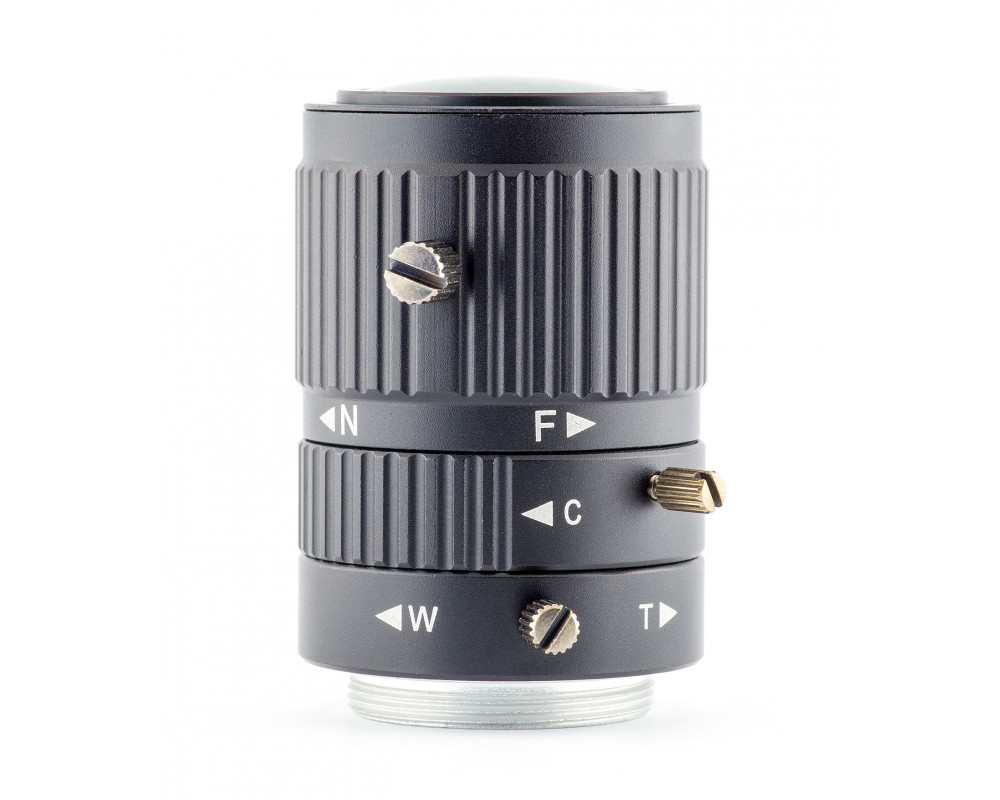

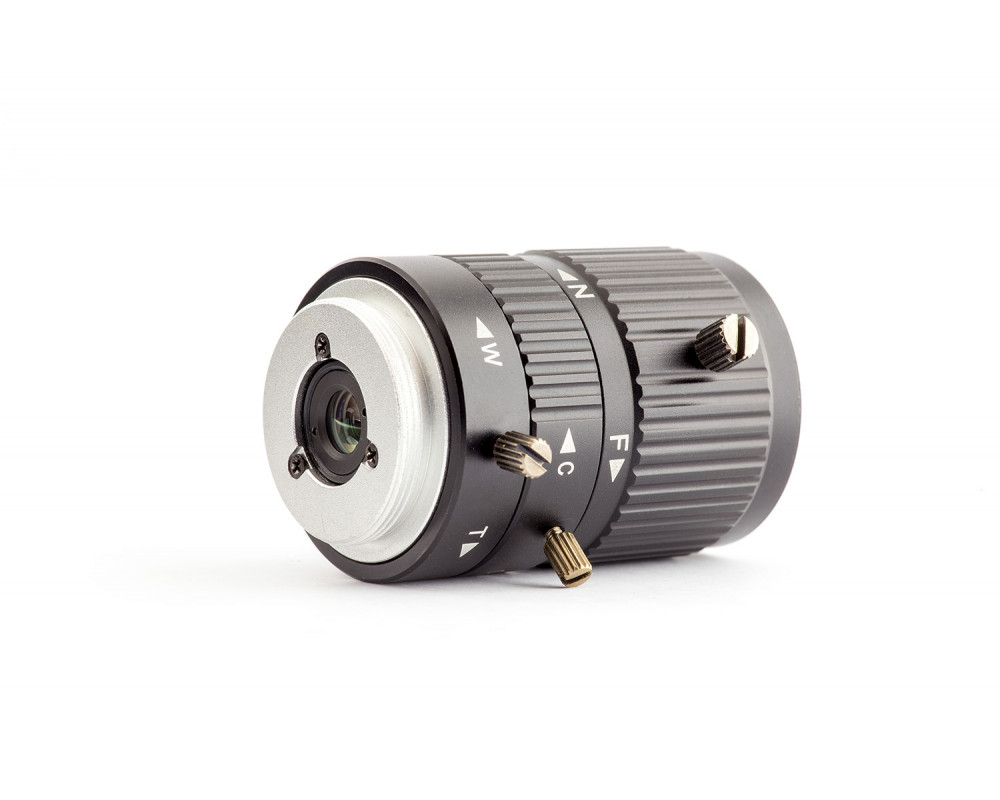

Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-01-01 End of life, production was stopped.
| Aperture: | f/1.6 |
|---|---|
| Filter: | NF |
| Flange Focal Distance (mm): | 12.5 |
| Focal length (mm): | 2.8-12 |
| Image circle (in): | 1/2.7" |
| Lens controls: | Focus + Aperture + Zoom |
| Lens mount: | CS |
| Lens view angle (deg): | 137-37 |
| Megapixel rating: | 5 |
| Minimum Object Distance (m): | 0.3 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 80.0 |
