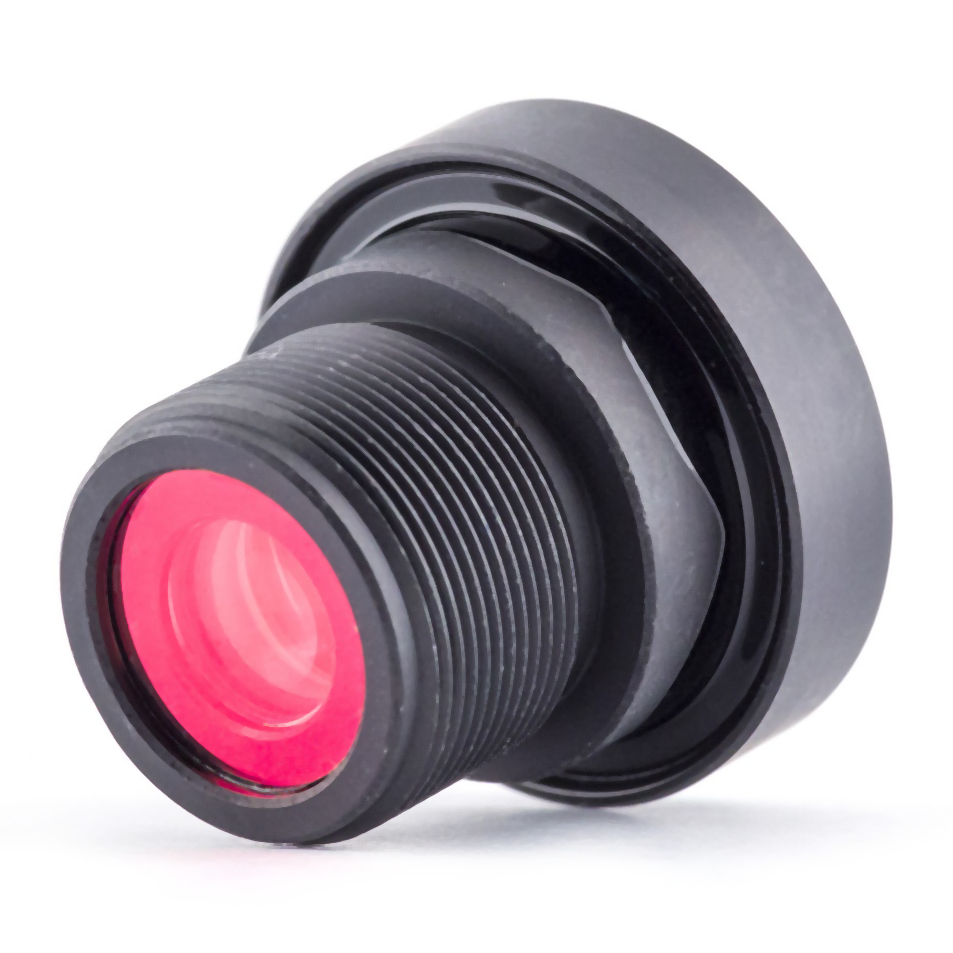

2.78mm low distortion M12 lens (IR-Cut Filter)
€70.18
2.78 mm low distortion wide angle M12 lens for up to 1/2.5" sensors. With a 112° diagonal angle of view and distortion below 3%, it is suitable for applications that need wide scene coverage without the curved-line appearance typical of barrel-distorted optics. A practical option for embedded vision, robotics, machine vision, and other systems where wide coverage and more natural geometry are important.

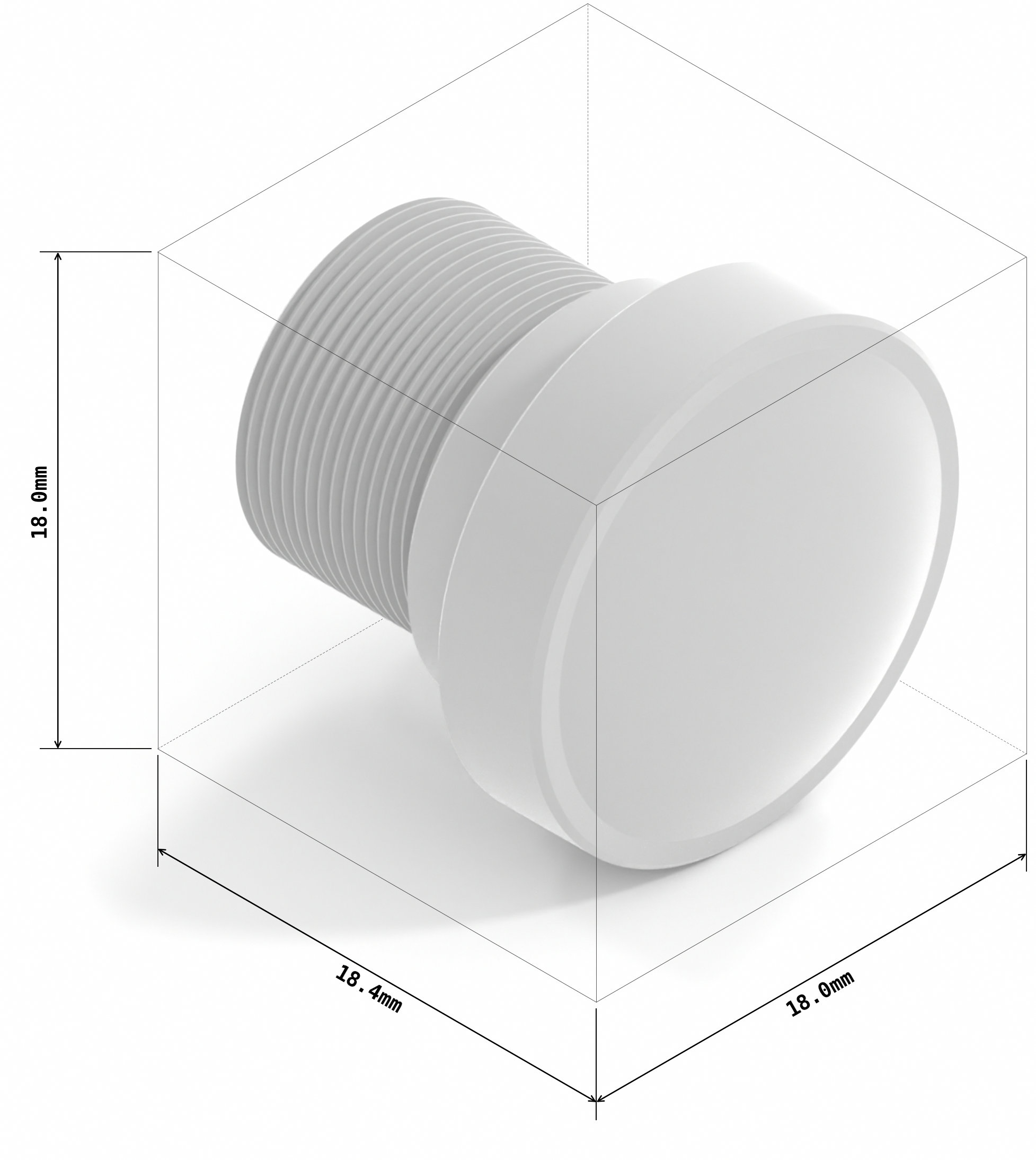

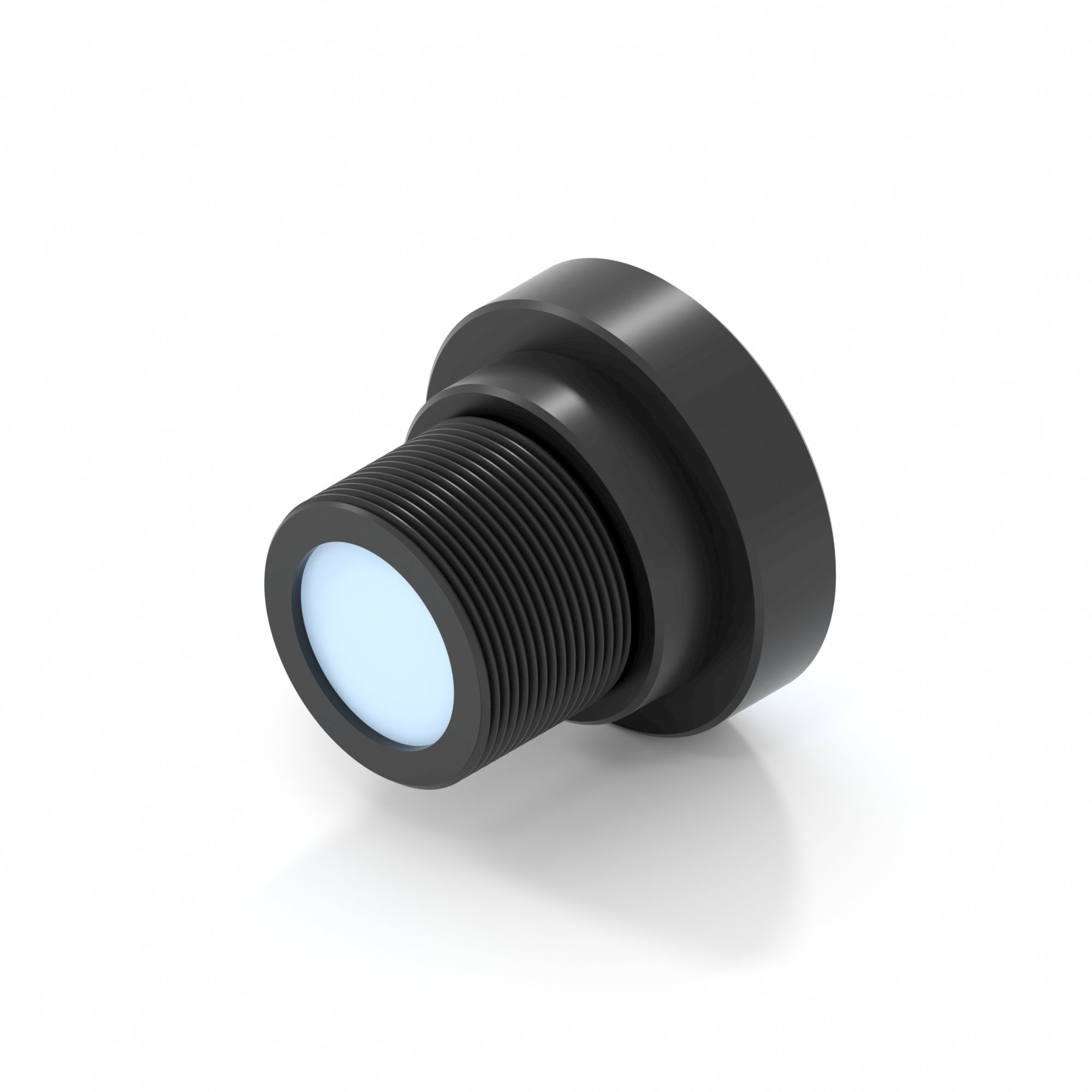

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Aperture: | f/2.2 |
|---|---|
| Filter: | IRCUT |
| Flange Focal Distance (mm): | 3.74 |
| Focal length (mm): | 2.78 |
| Image circle (in): | 1/2.5" |
| Lens controls: | NONE |
| Lens mount: | M12 |
| Megapixel rating: | 12 |
| Minimum Object Distance (m): | 0.2 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 8.0 |
