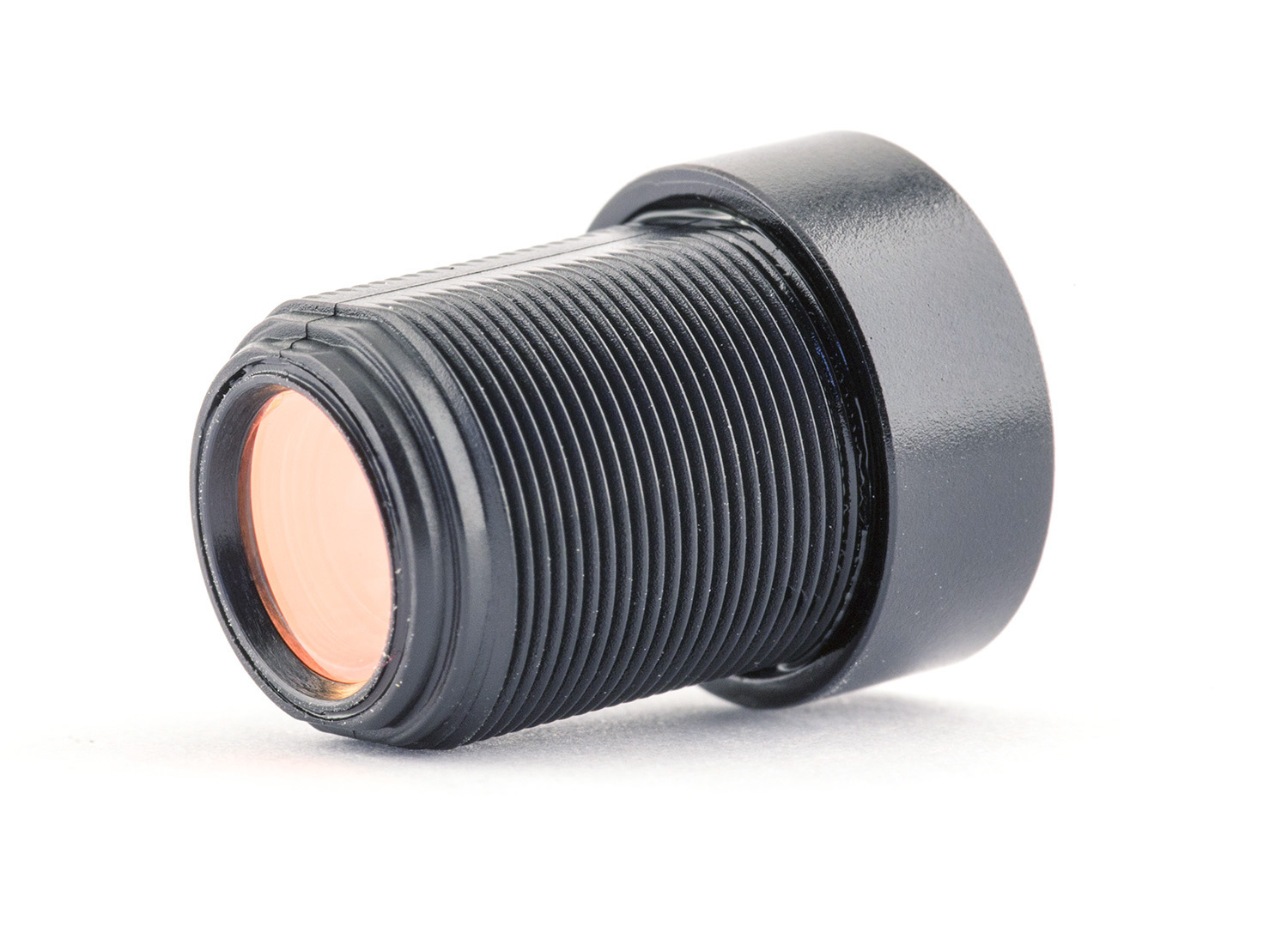

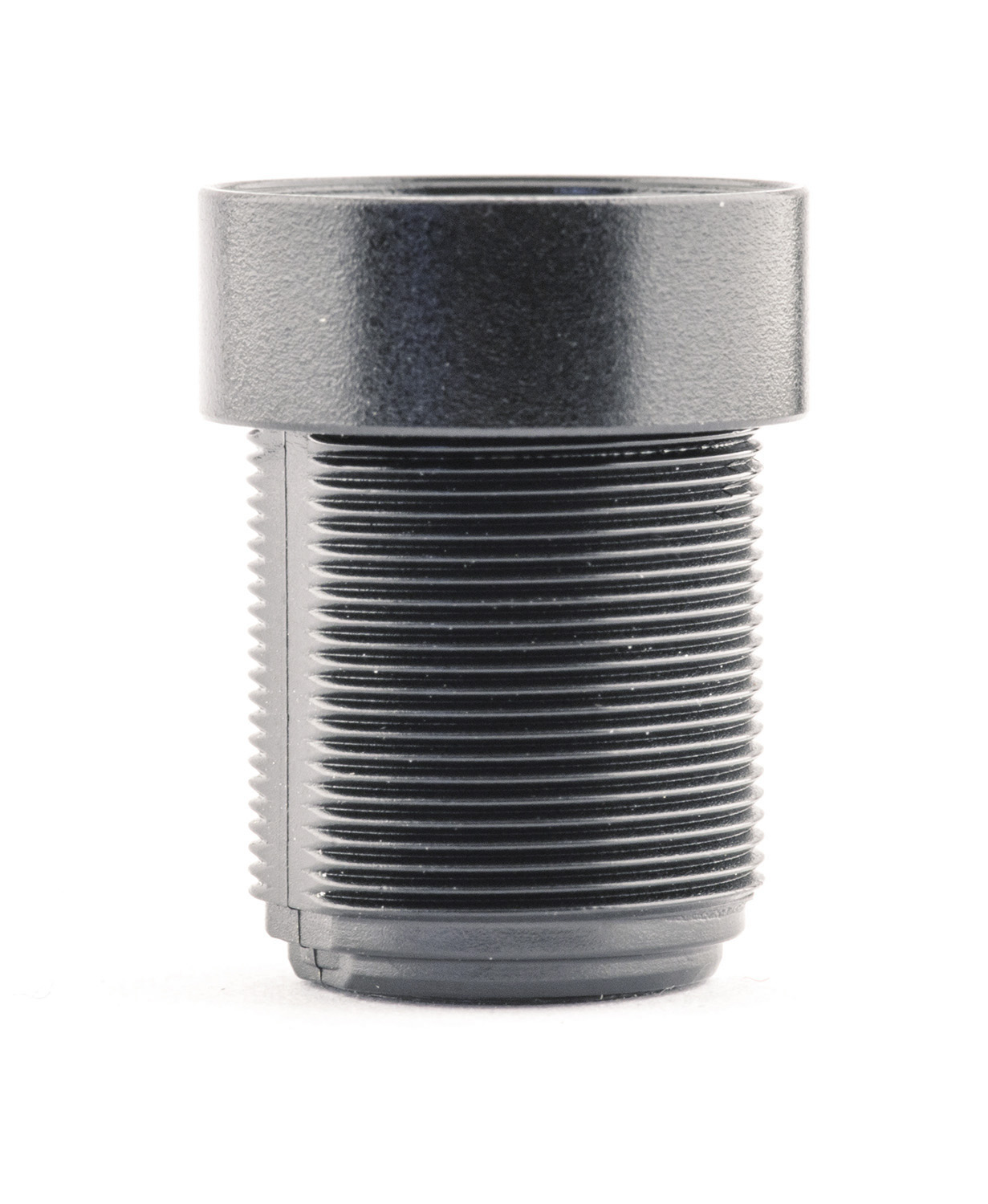

3.04mm low distortion M12-mount lens (IR-Cut Filter)
€42.59
3 mm low-distortion M12 lens for up to 1/2.5" sensors. The lens provides a 102° diagonal angle of view with distortion below 1%, making it suitable for applications that need a wide field of view while keeping straight lines straighter than with typical barrel-distorted wide-angle lenses. Plastic housing keeps the lens lightweight, which can be useful in compact embedded vision, robotics, and other space-constrained camera systems.

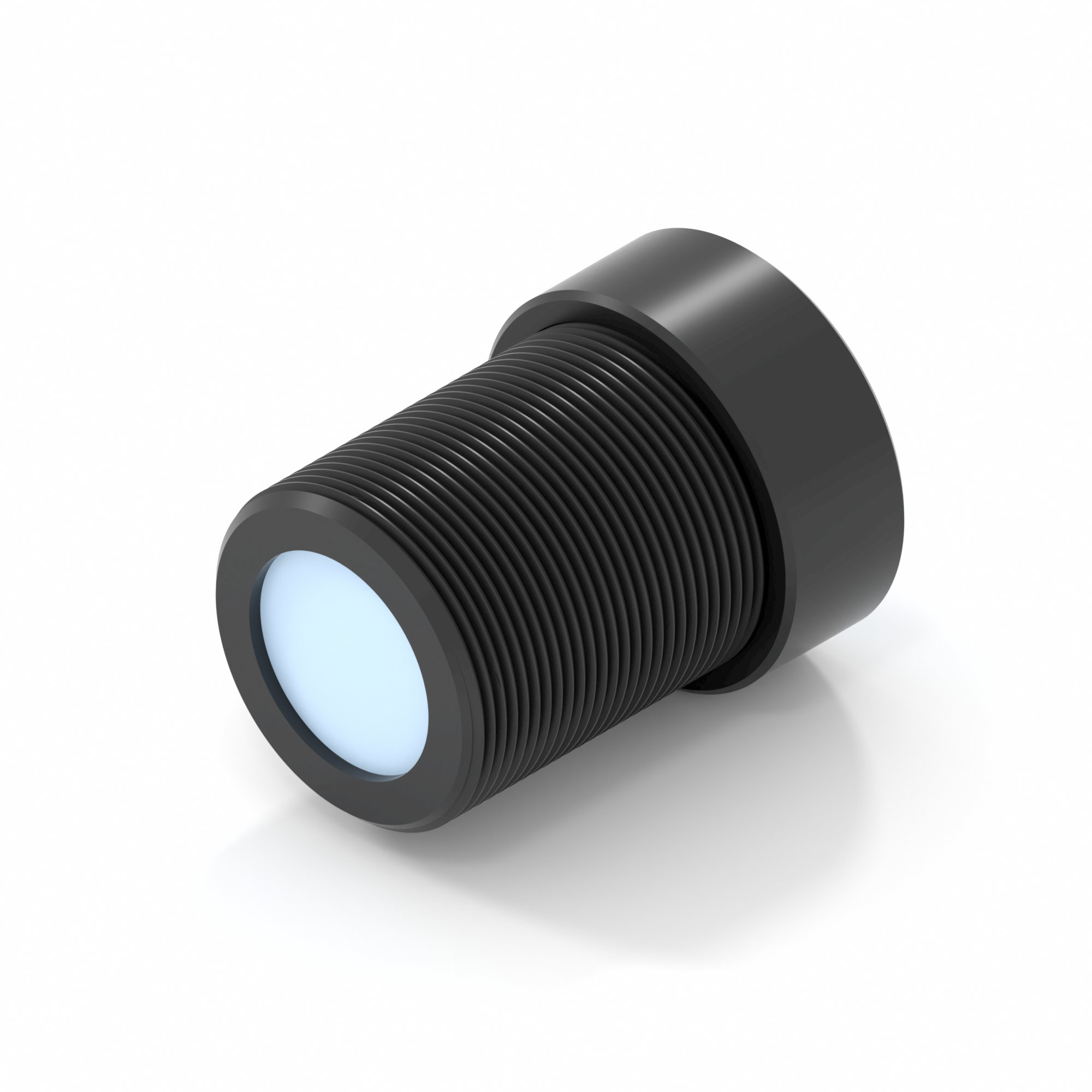

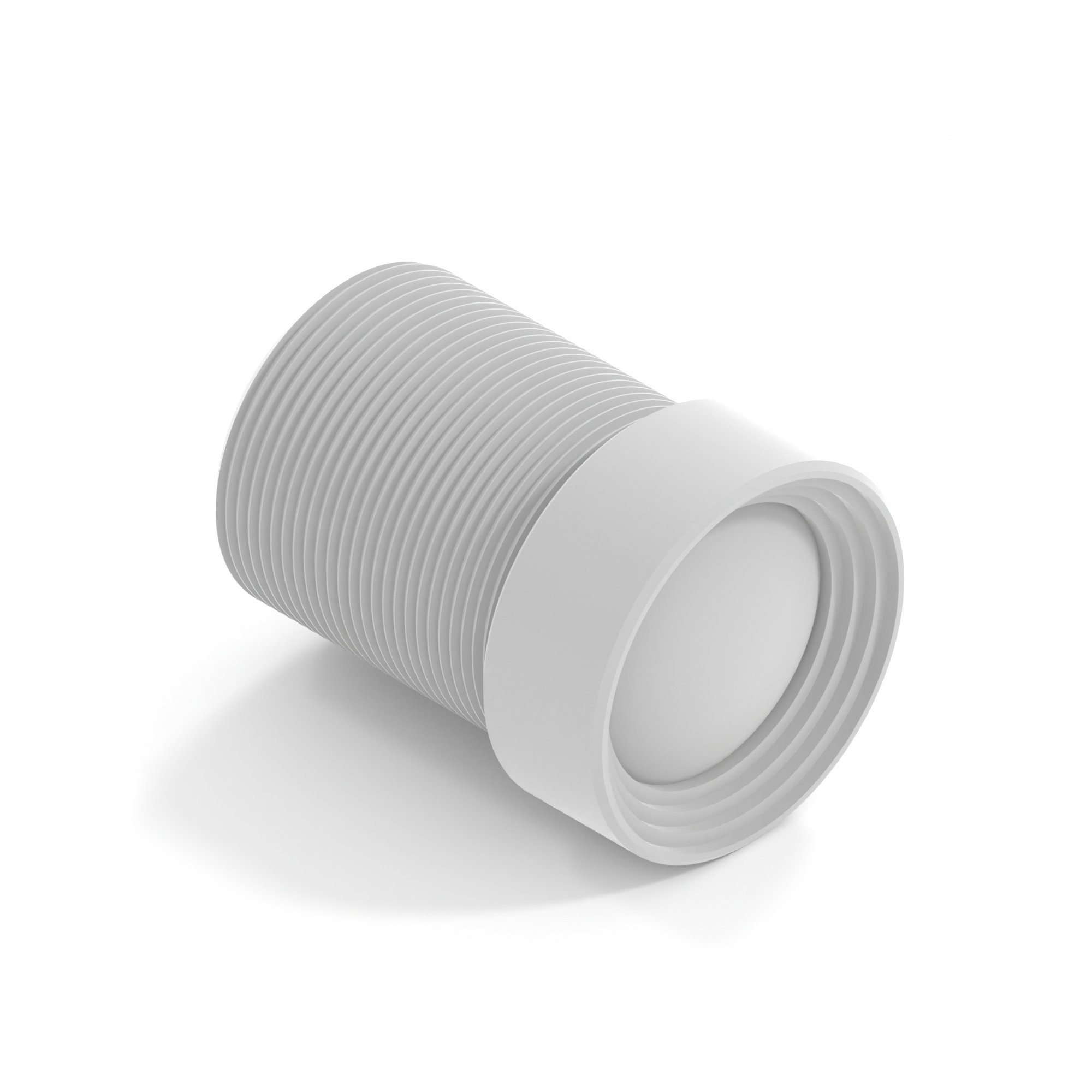

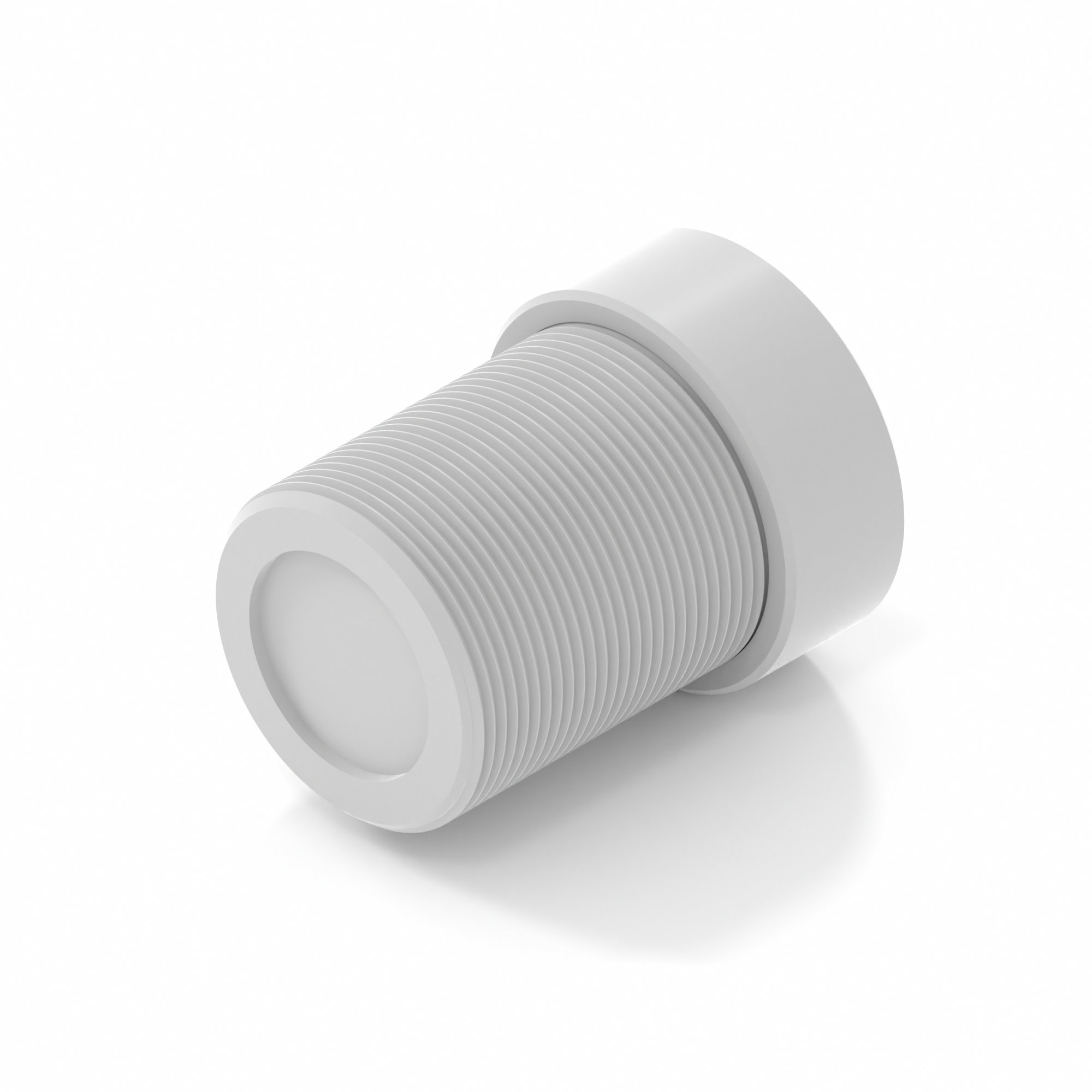

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Aperture: | f/4 |
|---|---|
| Filter: | IRCUT |
| Flange Focal Distance (mm): | 2.4 |
| Focal length (mm): | 3.04 |
| Image circle (in): | 1/2.5" |
| Lens controls: | NONE |
| Lens mount: | M12 |
| Lens view angle (deg): | 102 |
| Megapixel rating: | 5 |
| Minimum Object Distance (m): | 0.3 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 8.0 |
