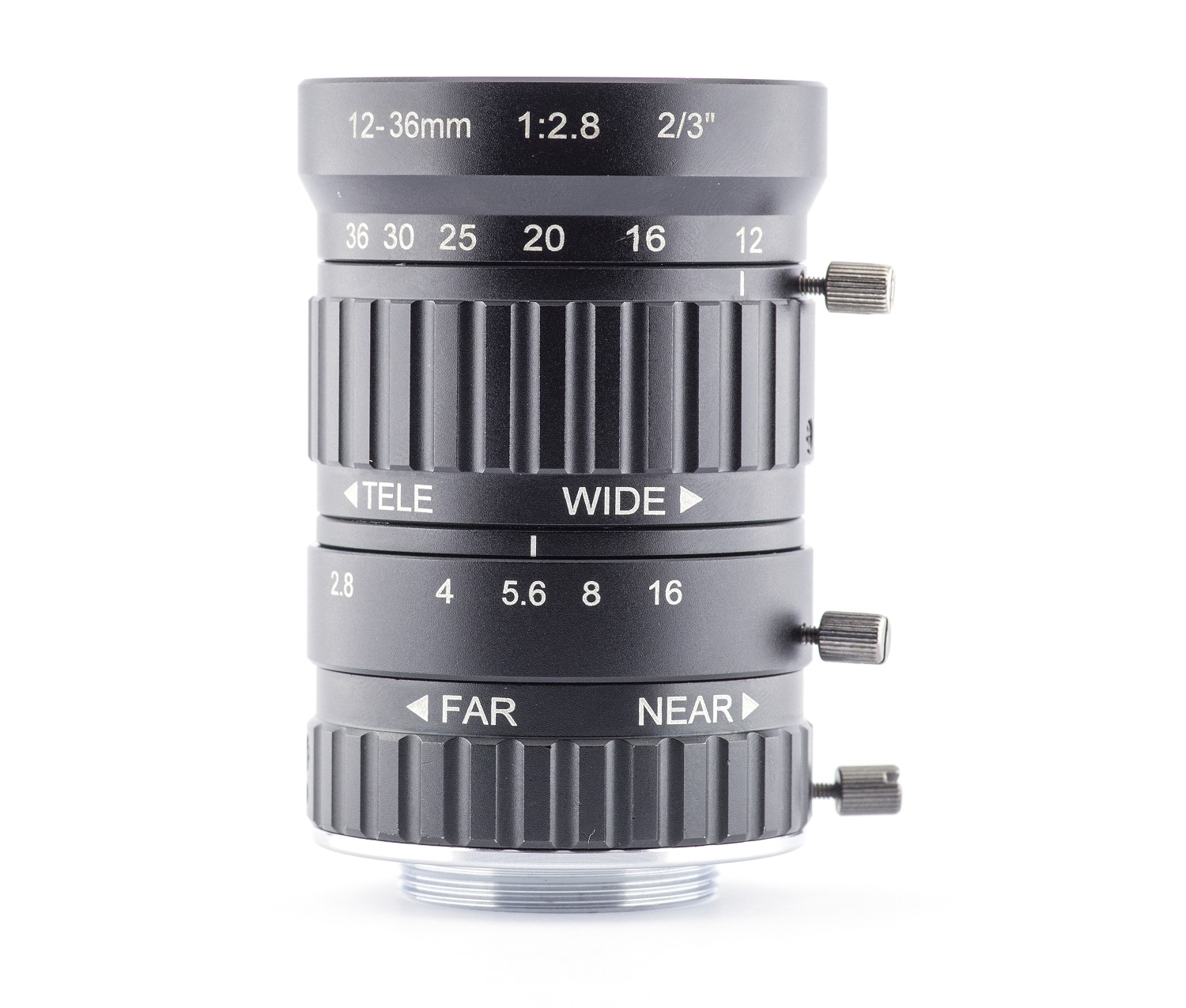

12-36mm low distortion C-mount zoom lens
€169.40
Low distortion varifocal lens with C-mount interface for camera systems that require on-site adjustment of field of view and support for close-up imaging. The 12–36 mm focal length range provides a diagonal angle of view from 49.2° to 17.4°. A minimum object distance of 10 cm makes it suitable for close-up applications where the subject is positioned near the camera. Designed for up to 2/3" sensors, it is a practical option for machine vision, robotics, inspection, and CCTV systems. Manual zoom, focus, and iris adjustment support straightforward setup in fixed installations.

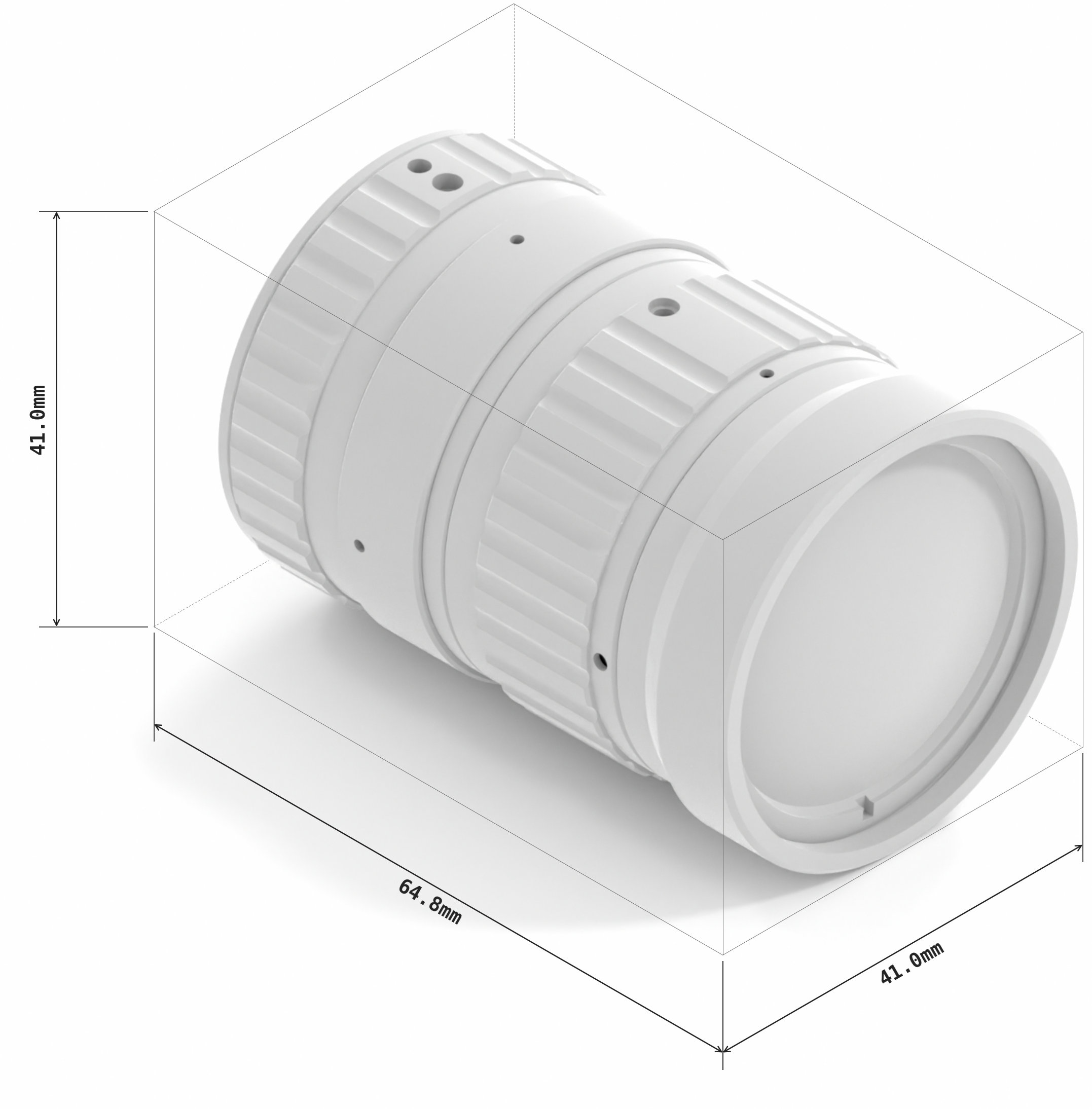

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-04-11 - Removed extra symbol 0 in SKU. Was L0107-FZA-12Z36-C, now L107-FZA-12Z36-C
| Aperture: | f/2.8 |
|---|---|
| Filter: | NF |
| Flange Focal Distance (mm): | 17.526 |
| Focal length (mm): | 12-36 |
| Image circle (in): | 2/3" |
| Lens controls: | Focus + Aperture + Zoom |
| Lens mount: | C |
| Lens view angle (deg): | 49.2-17.4 |
| Megapixel rating: | 5 |
| Minimum Object Distance (m): | 0.1 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 570.0 |
