3.6-10mm varifocal M12-mount zoom lens
€82.28
3.6–10 mm varifocal M12 lens for up to 1/1.8" sensors. The lens provides a diagonal angle of view from 156° at the wide end to 51° at the tele end, making it suitable for applications that need a wide adjustment range in a compact M12 format. Unlike most M12 optics, this lens also includes manual zoom adjustment, which makes it a practical option when framing needs to be tuned on site without changing the lens. Suitable for embedded vision, robotics, machine vision, and other compact camera systems where wide coverage, adjustable field of view, and M12 compatibility are important.

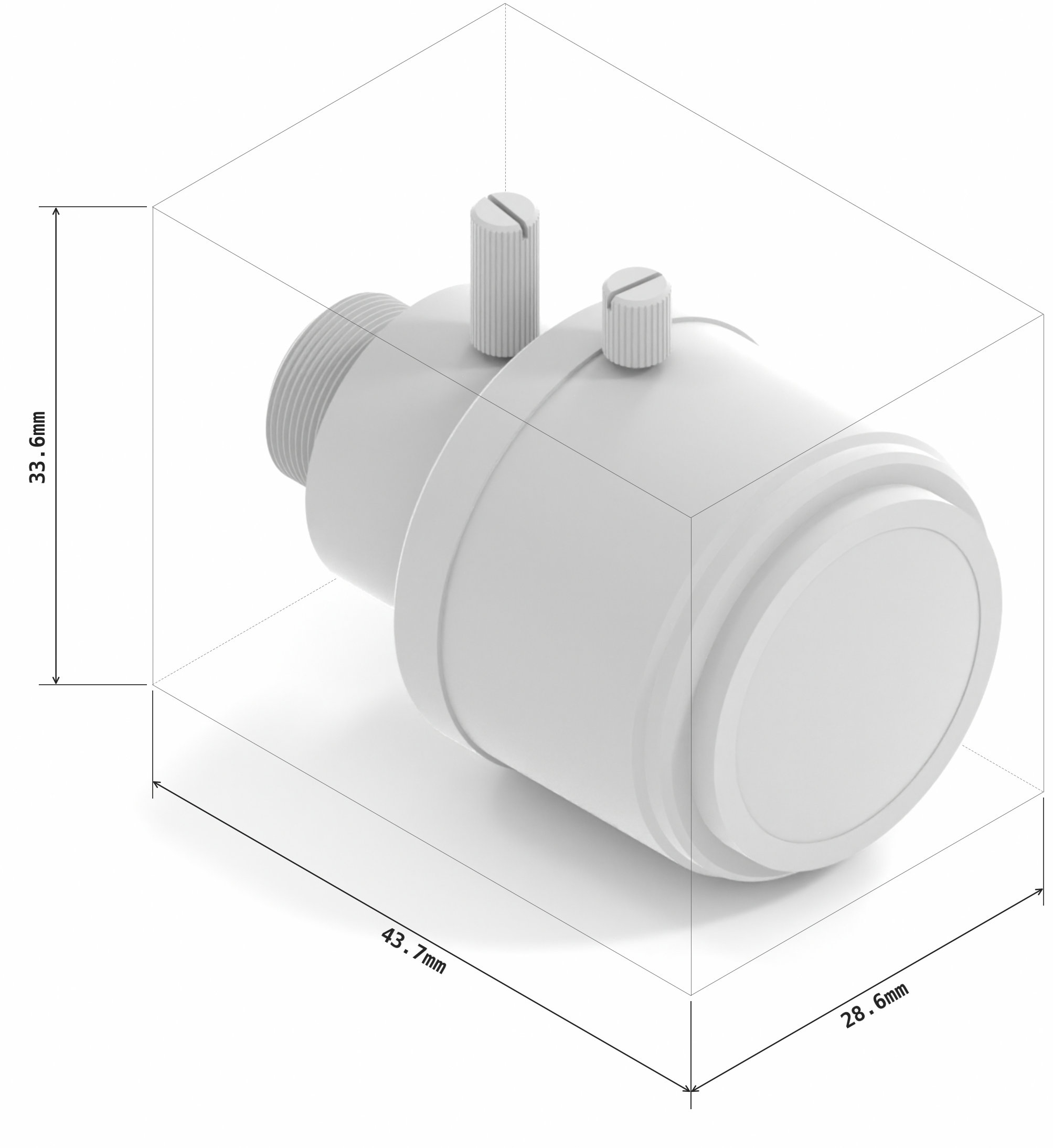

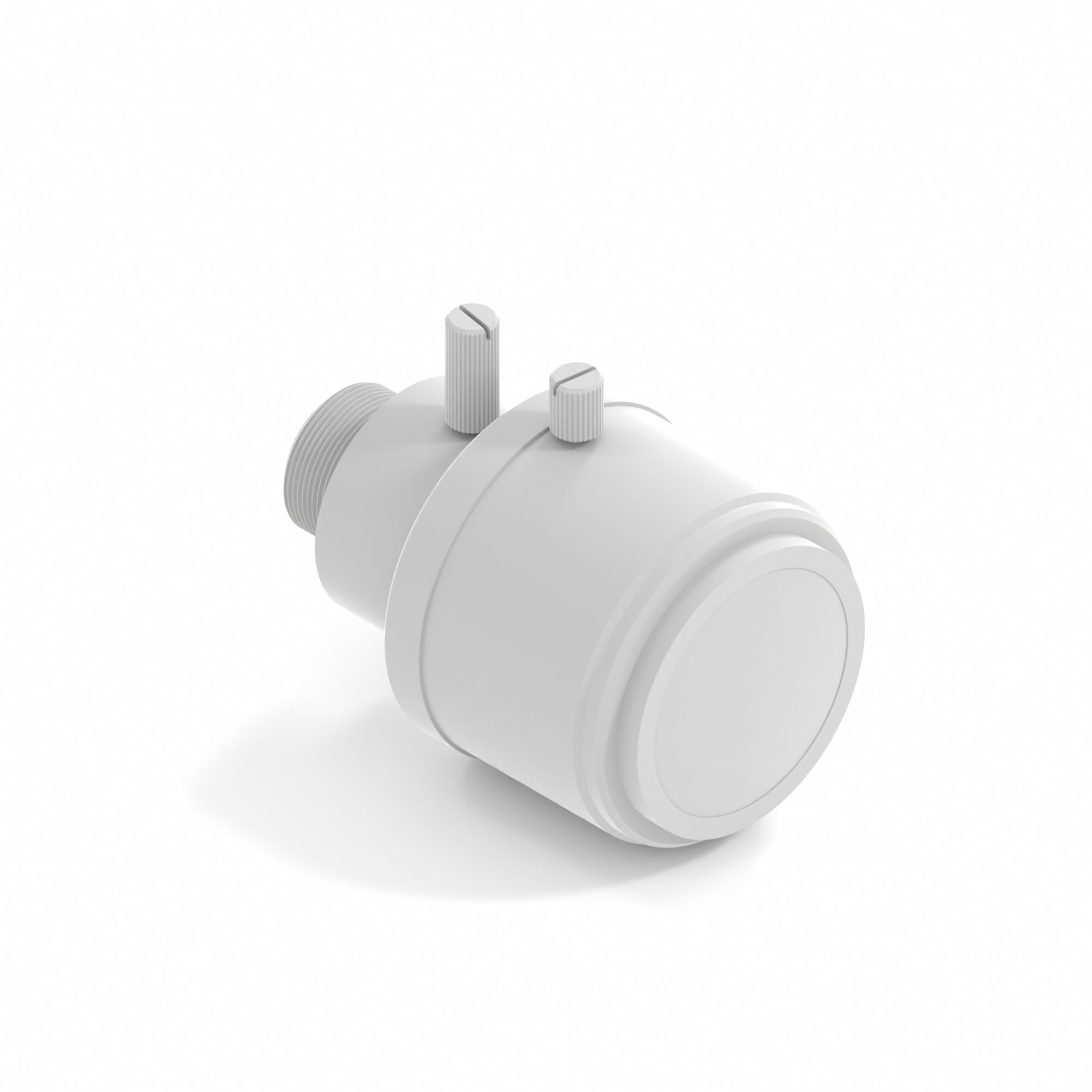

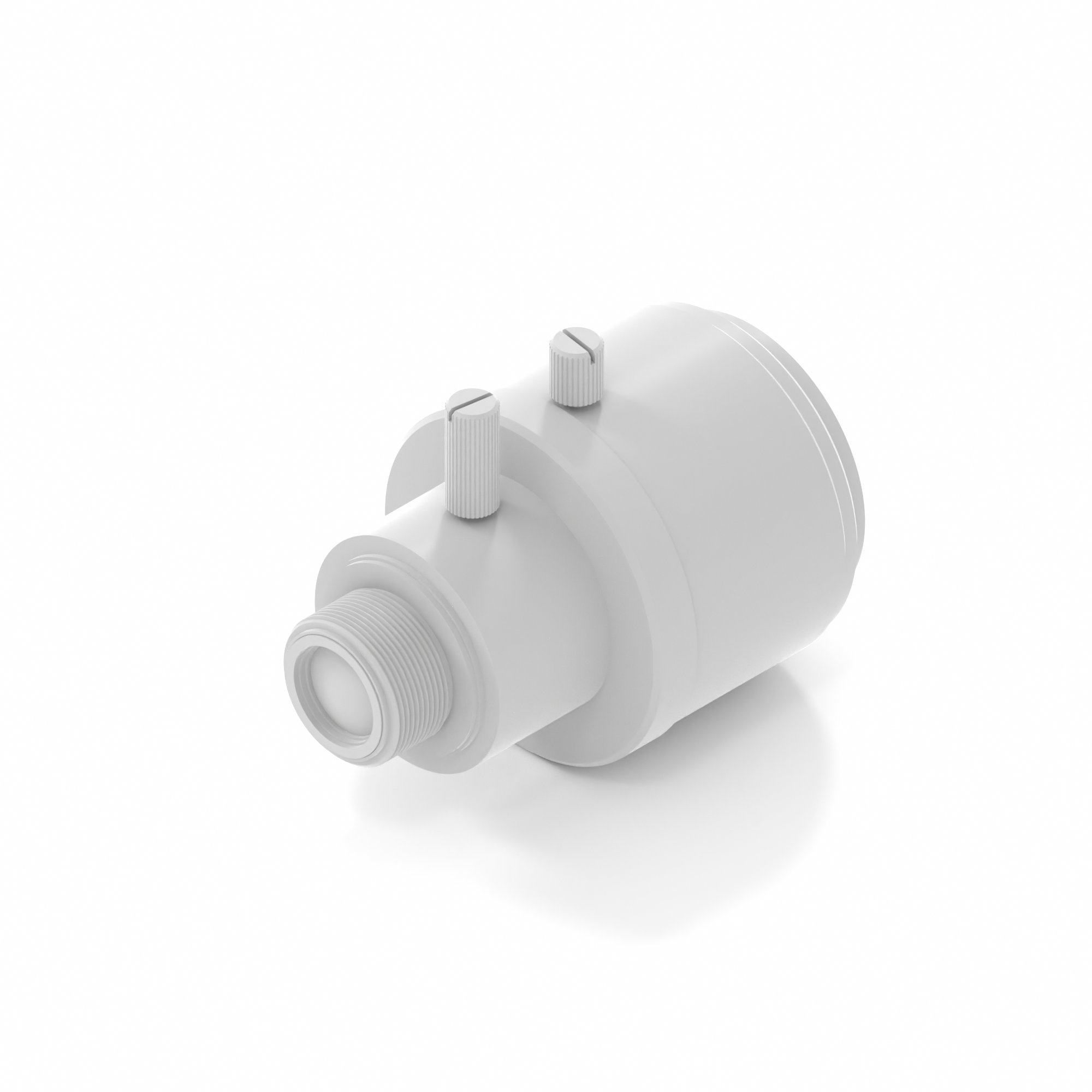

Selected configuration preview and CAD models

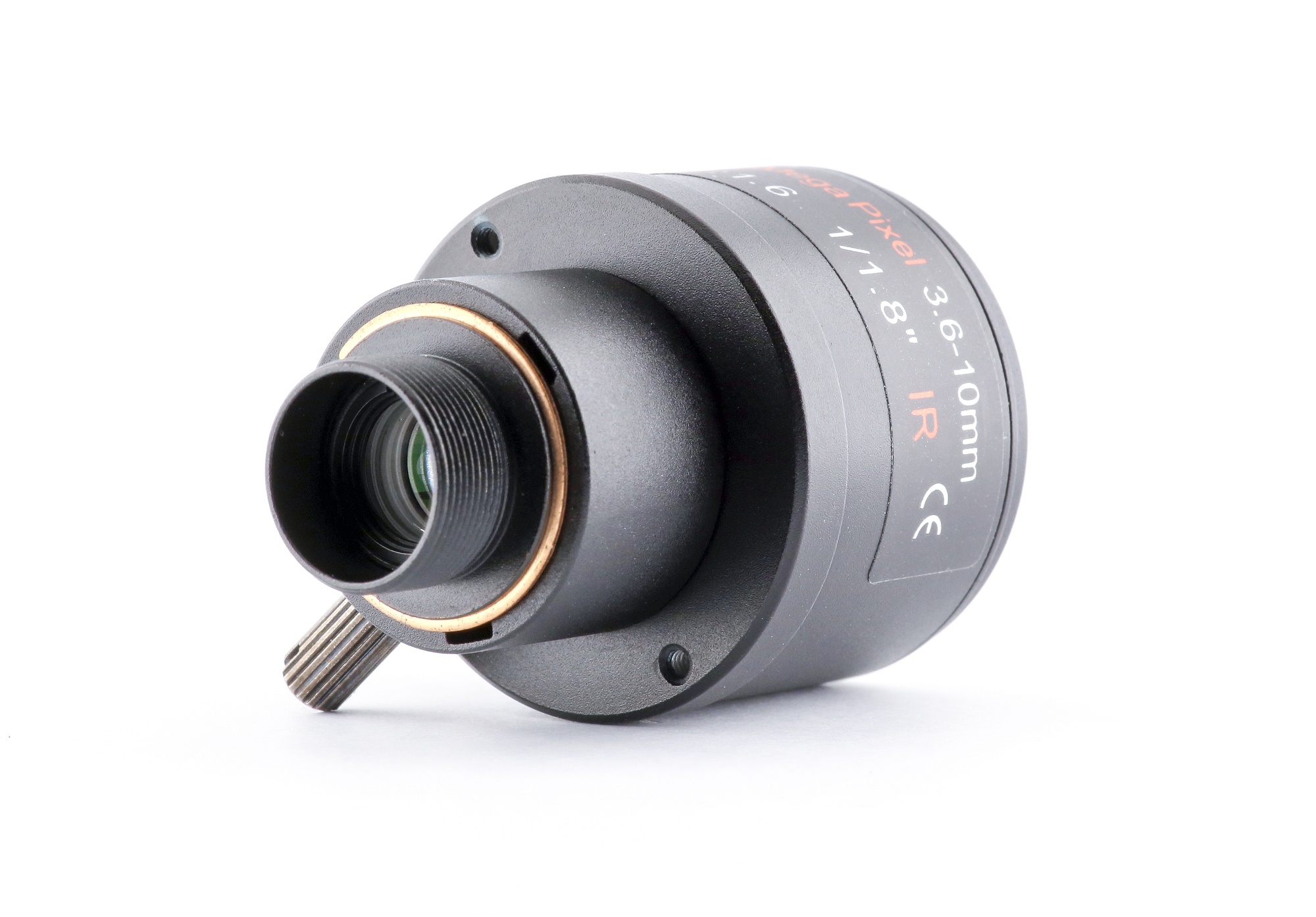

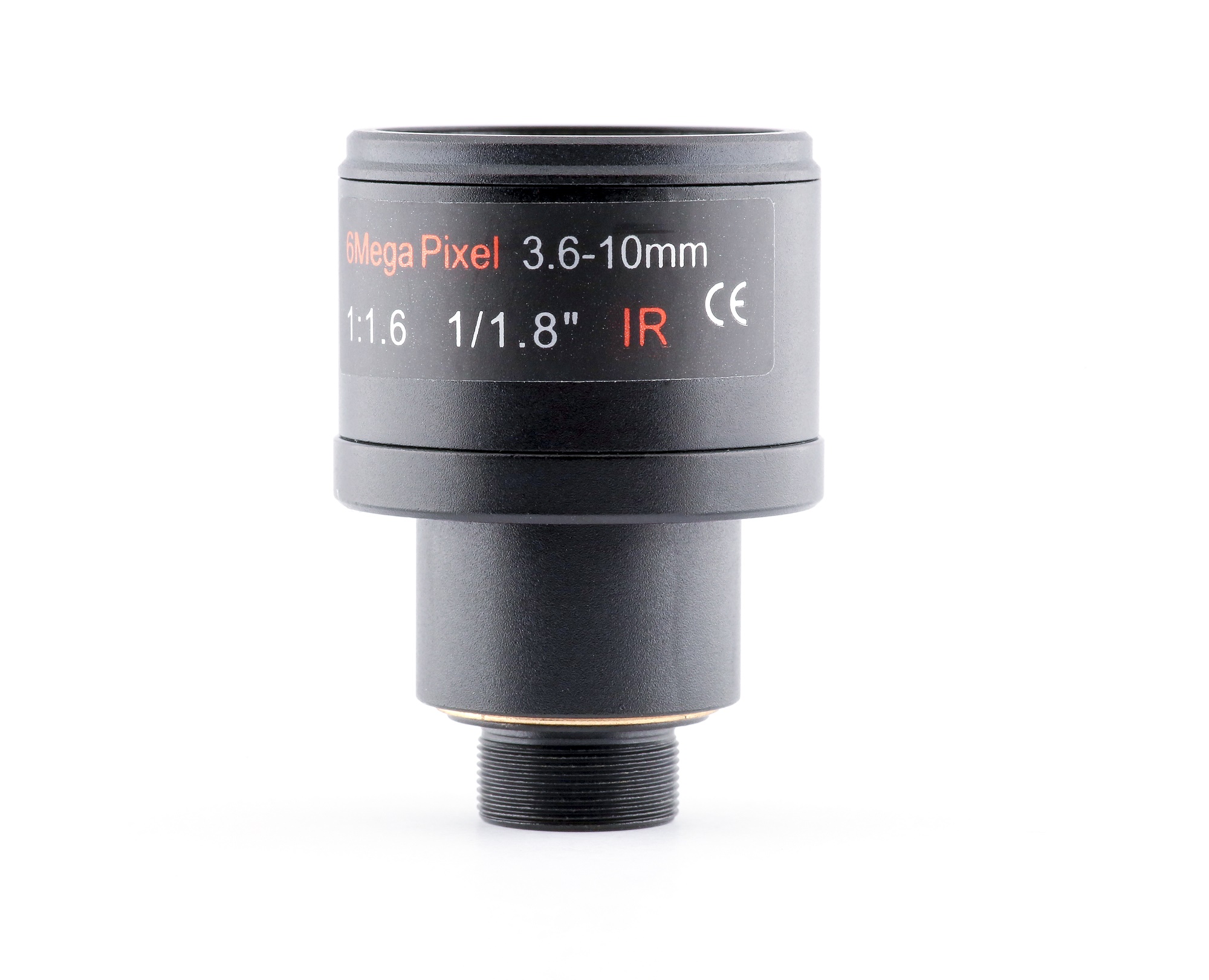

Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Aperture: | f/1.6 |
|---|---|
| Filter: | NF |
| Flange Focal Distance (mm): | 7.13 |
| Focal length (mm): | 3.6-10 |
| Image circle (in): | 1/1.8" |
| Lens controls: | Focus + Zoom |
| Lens mount: | M12 |
| Lens view angle (deg): | 156-51 |
| Megapixel rating: | 6 |
| Minimum Object Distance (m): | 0.3 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 34 |
