12-36mm zoom C-mount lens
€675.18
12–36 mm varifocal C-mount lens for up to 1" sensors. The lens provides a diagonal angle of view from 67.2° at the wide end to 28.6° at the tele end, making it suitable for applications that need on-site adjustment between a moderately wide view and a narrower field of view. A minimum object distance of 2.5 m makes it better suited to mid-range and longer-distance imaging than close-up use. A practical option for machine vision, robotics, CCTV, and other imaging systems where framing needs to be tuned during setup. Manual iris, focus, and zoom controls support straightforward integration in fixed installations.

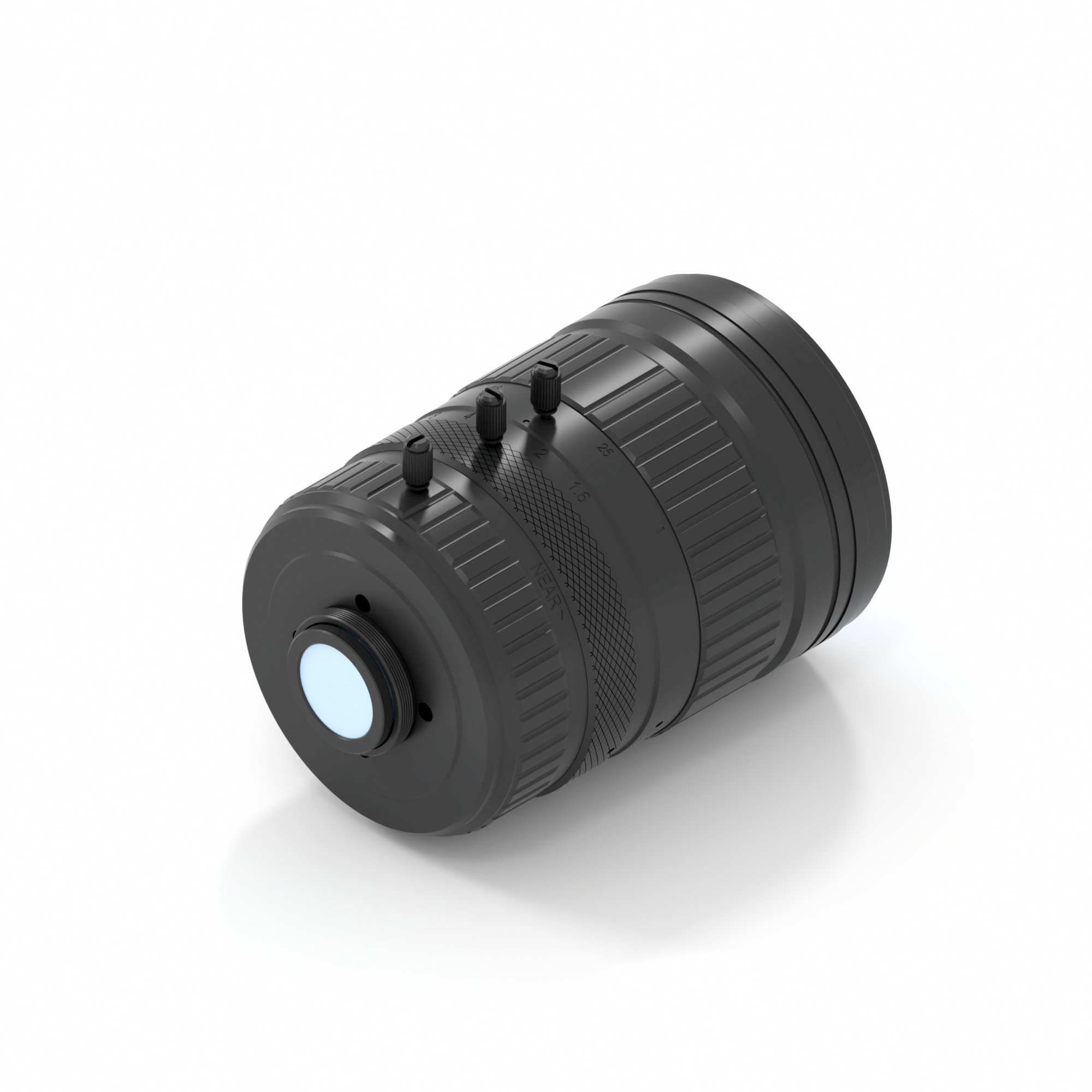

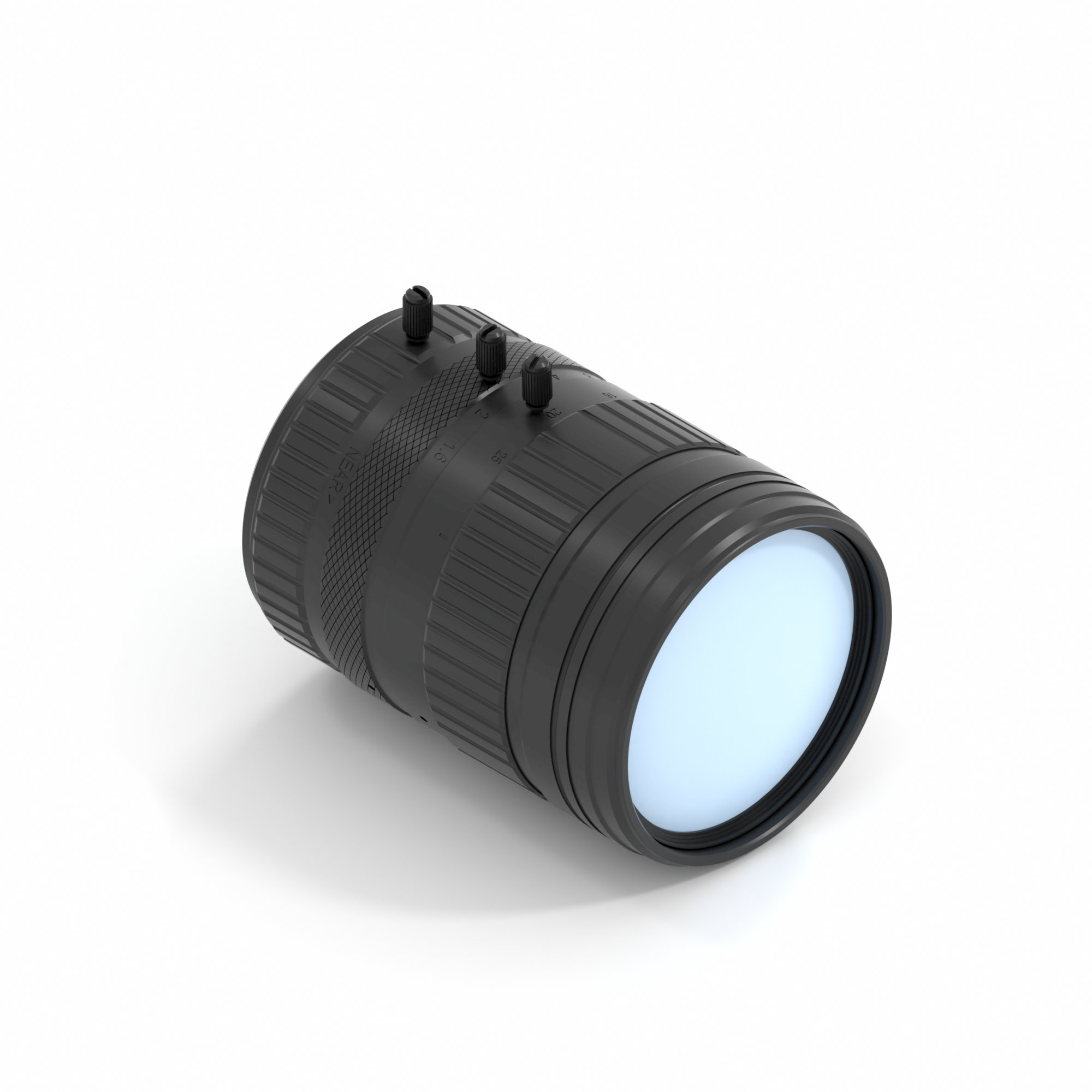

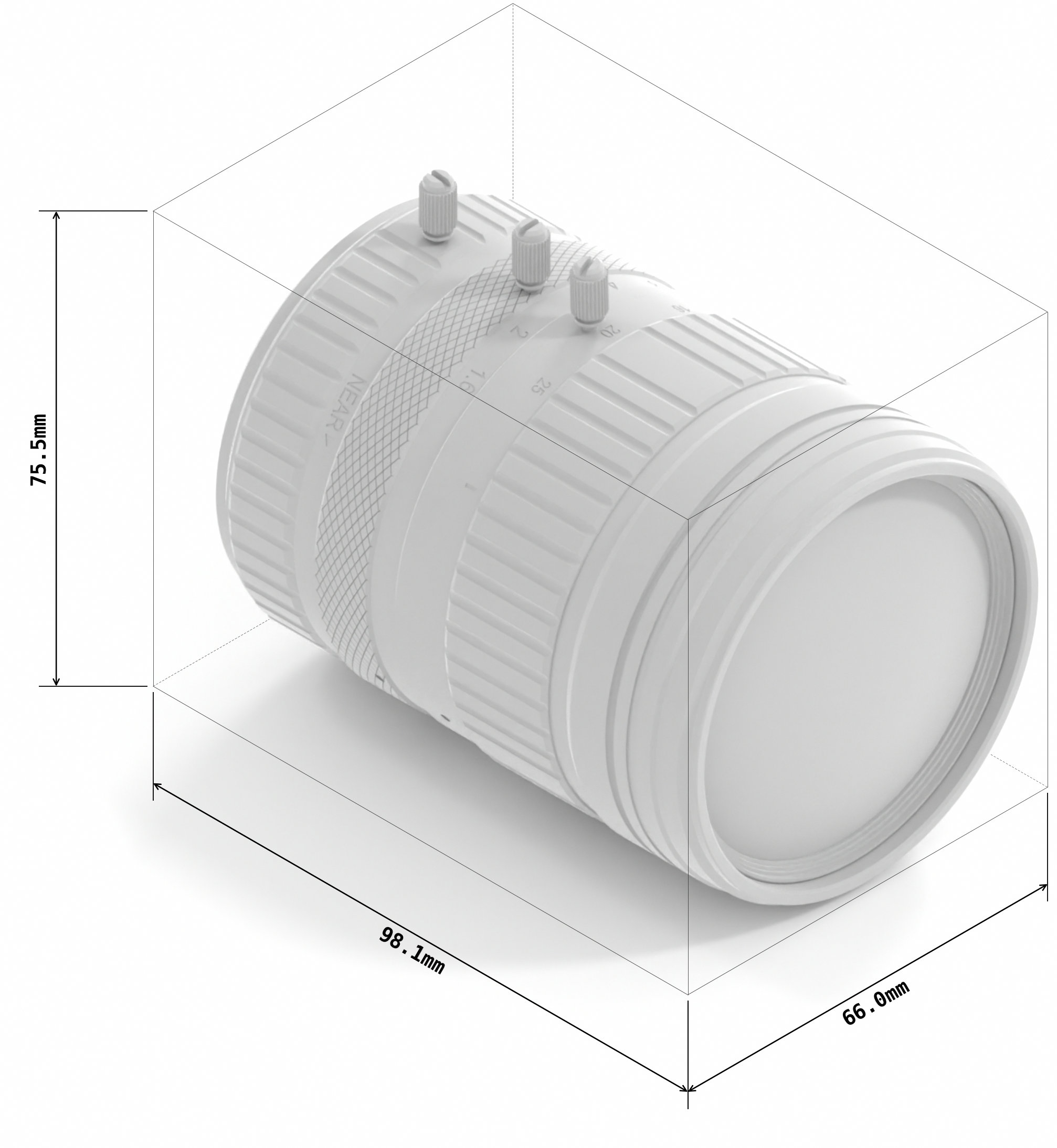

Selected configuration preview and CAD models

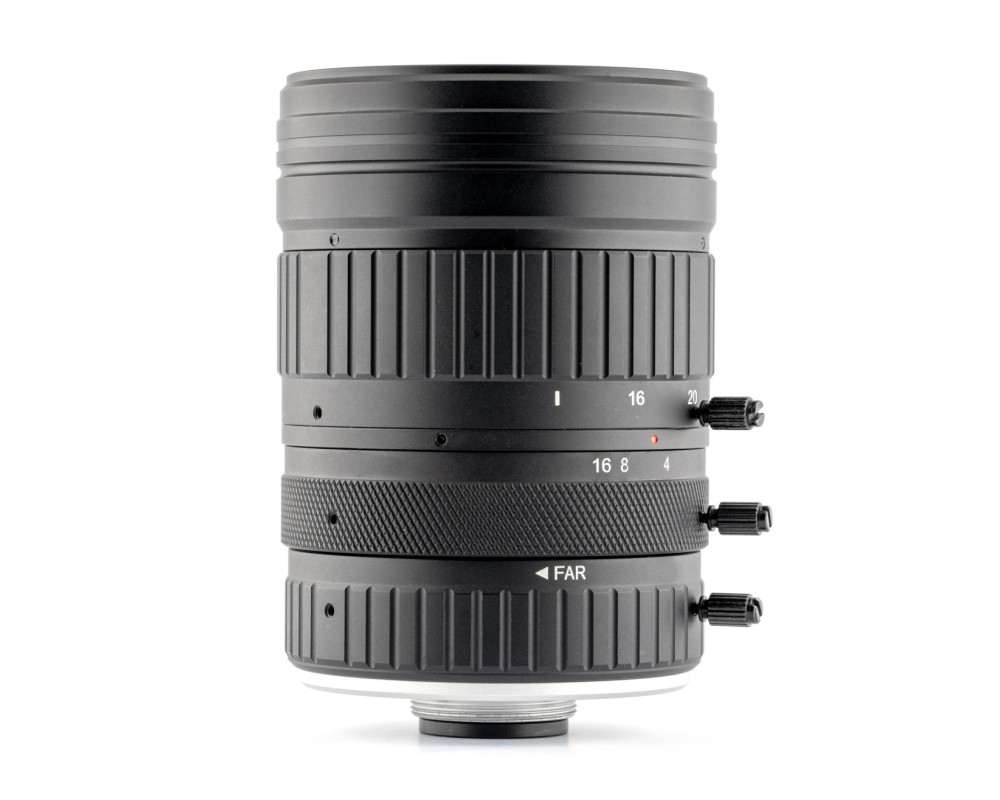

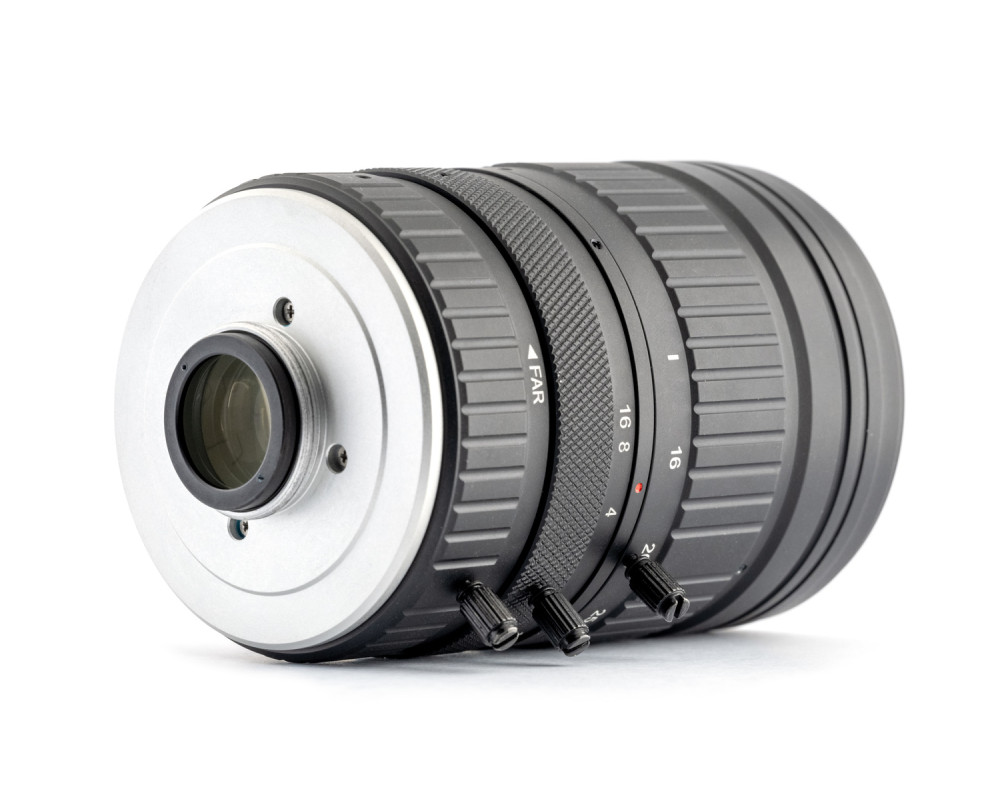

Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Aperture: | f/1.6 |
|---|---|
| Filter: | NF |
| Flange Focal Distance (mm): | 17.526 |
| Focal length (mm): | 12-36 |
| Image circle (in): | 1" |
| Lens controls: | Focus + Aperture + Zoom |
| Lens mount: | C |
| Lens view angle (deg): | 67.2-28.6 |
| Megapixel rating: | 8 |
| Minimum Object Distance (m): | 2.5 |
| HS CODE: | 9002 11 00 90 |
| Country Of Origin: | China |
| Weight (g): | 570.0 |
