Motorized zoom systems
€262.57
Kurokesu motorized zoom systems combine motorized zoom lenses, camera modules, and lens controllers into integration ready platforms for robotics, embedded vision, machine vision, research, and specialized video applications. The range includes multiple lens classes, from compact board level motorized zoom optics to larger C and CS mount motorized zoom lenses, with focal length ranges extending from short wide end coverage to long telephoto zoom ratios such as 40x. Depending on the selected system, zoom, focus, iris, and filter functions are operated remotely through dedicated motion control electronics.
The lens drive train is built around controllers such as SCE2 and the earlier SCF4 platform. SCE2 is a small 4 axis stepper motor controller with linear interpolation, while SCF4 is a compact 3 channel micro motor controller designed for motorized lenses. This makes the platform suitable for custom optical instruments and remotely operated imaging systems where precise control of zoom, focus, iris, and related functions is required.
Motorized zoom systems can be paired with different Kurokesu camera modules depending on the required interface and application. Development kits are offered with selected USB and CSI-2 cameras, and the broader camera ecosystem includes compact CSI-2 modules for Raspberry Pi and Jetson as well as USB camera families for host connected systems. Filter configuration depends optical train, with options such as visible band-pass "IR Cut", no filter, and NIR long-pass variants.

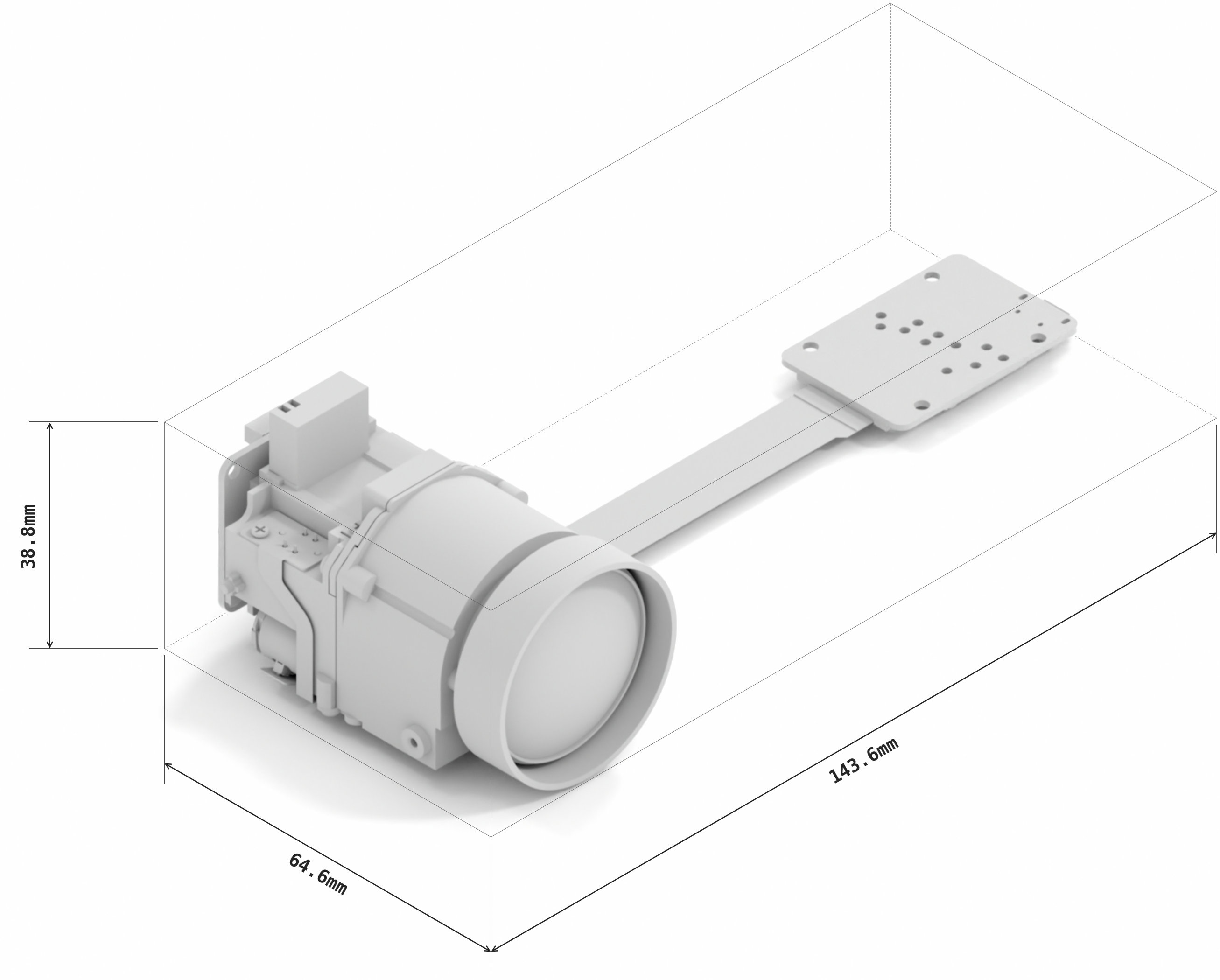

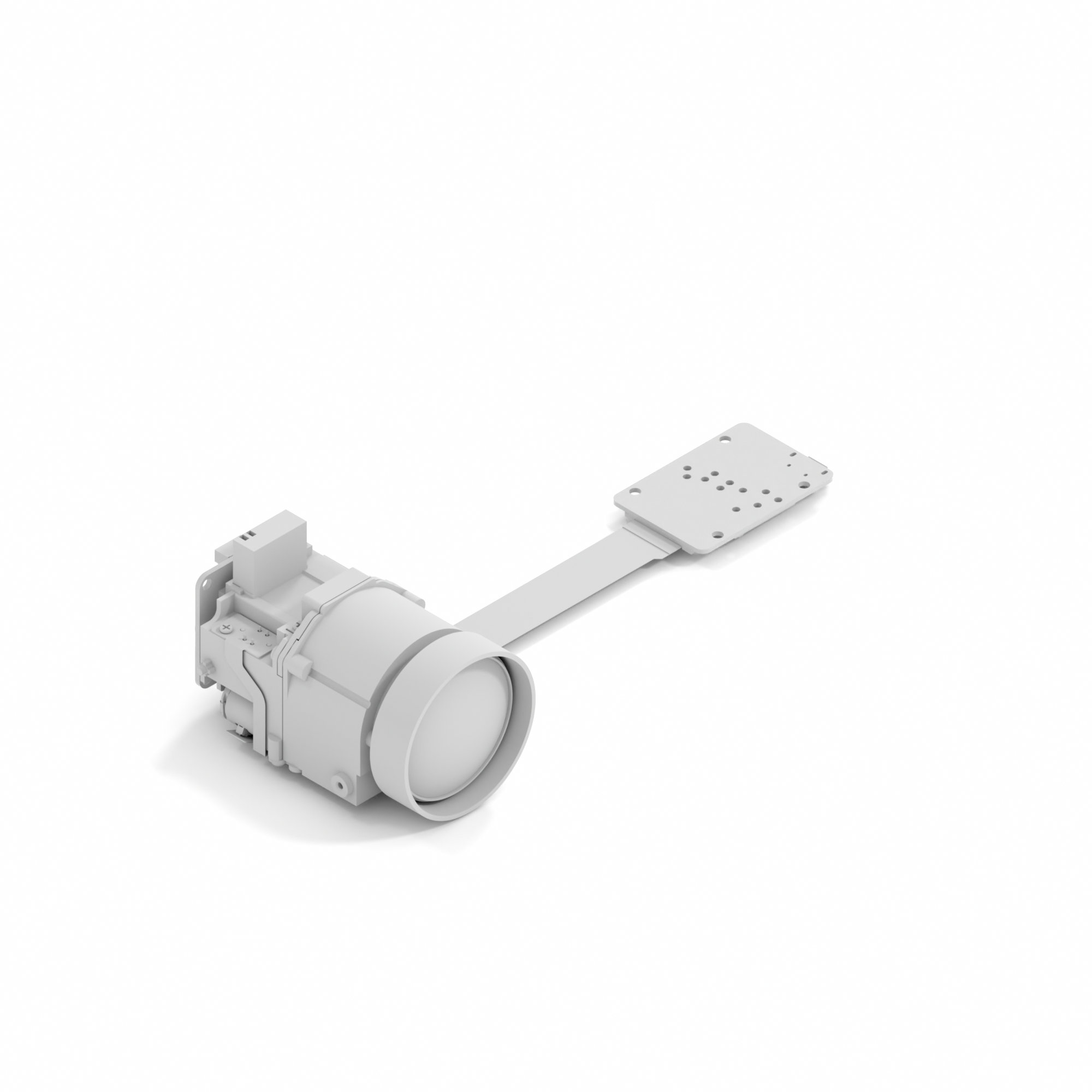

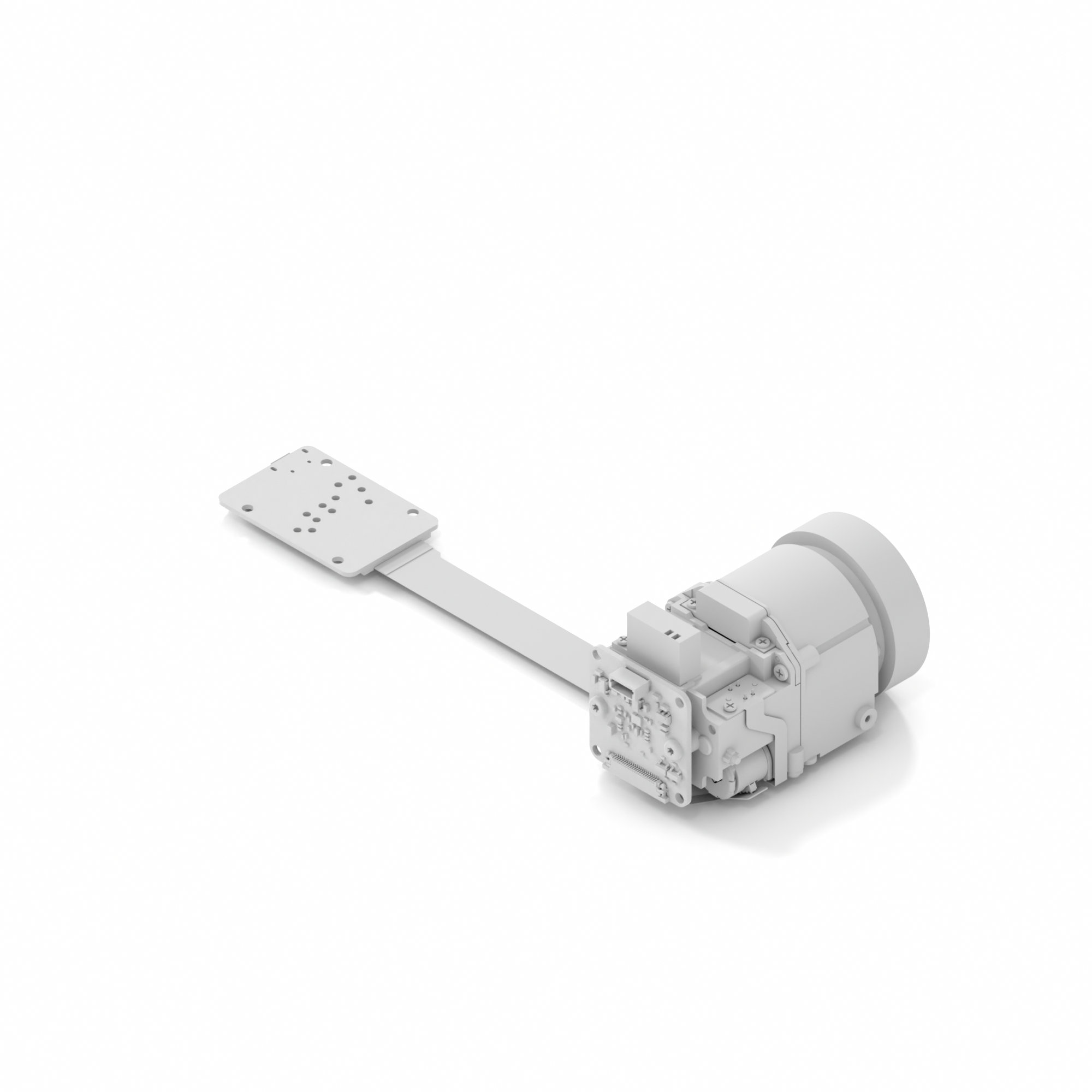

Selected configuration preview and CAD models

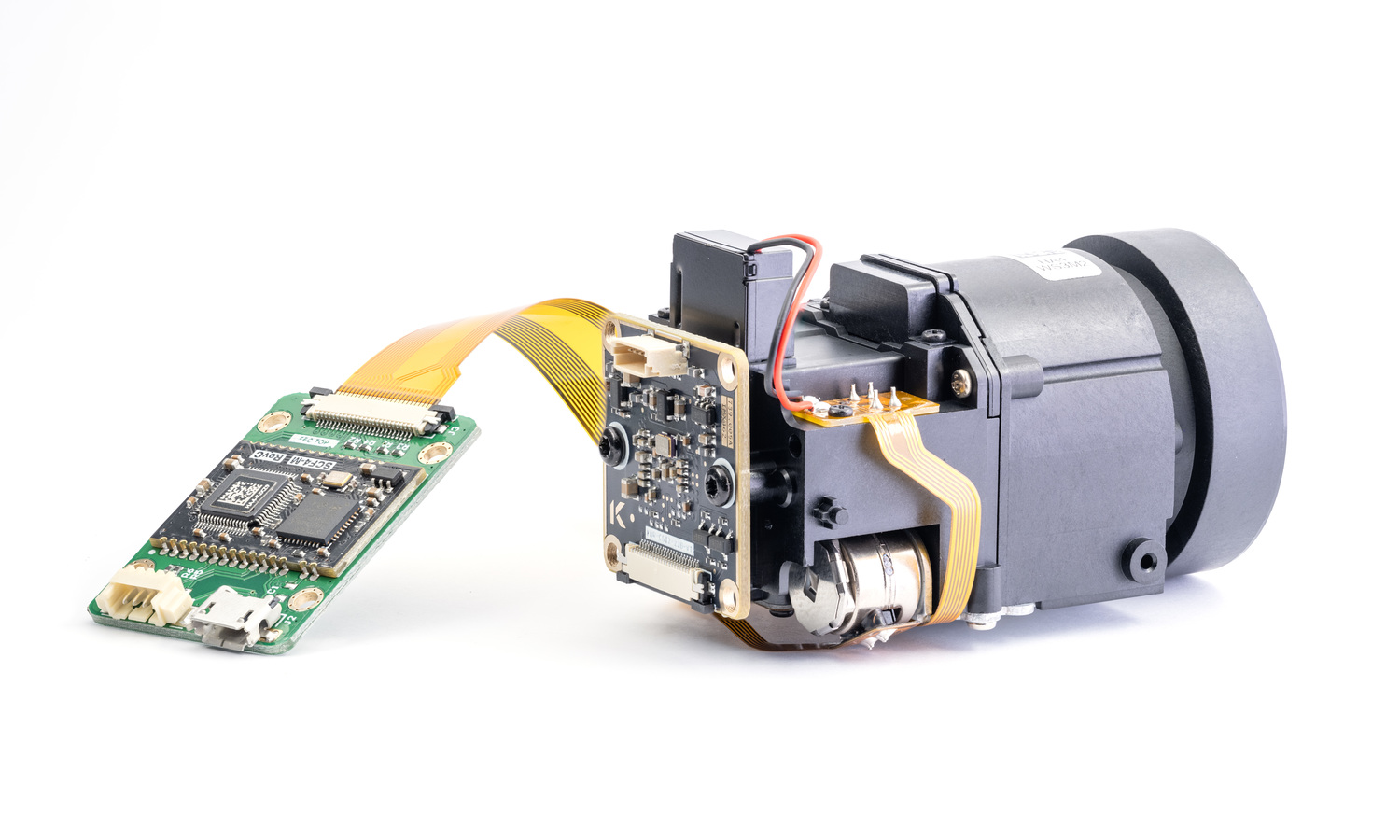

Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
| Camera interface: | CSI-2 MIPI |
|---|---|
| Chroma: | RGB |
| Controller: | SCF4 |
| Focal length (mm): | 5.2-47.4 |
| Image sensor: | IMX462 |
| Motorized lens: | 10X |
| HS CODE: | 8525 89 |
| Country Of Origin: | Lithuania |
