Ethernet camera module build log #1 – Assembly day

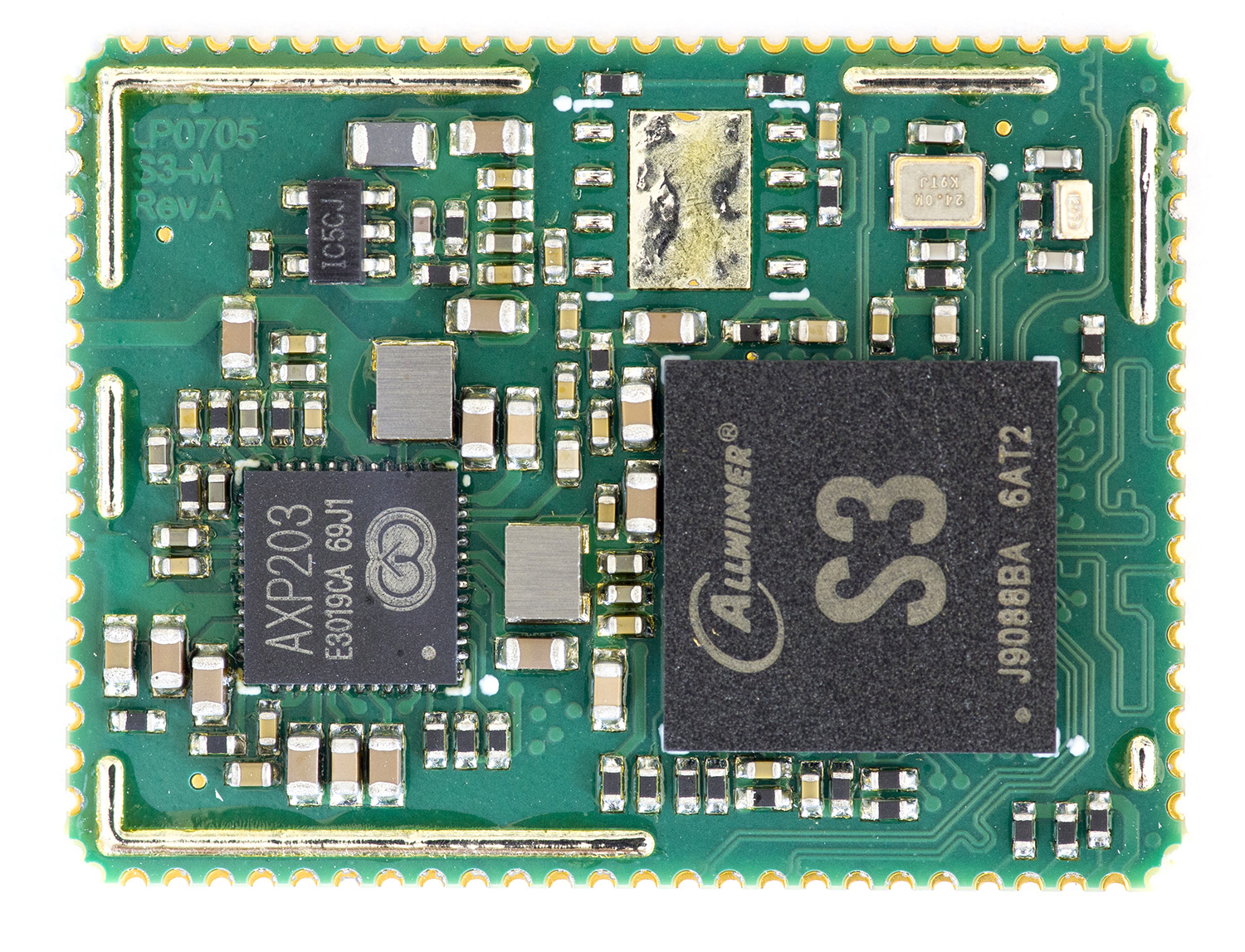

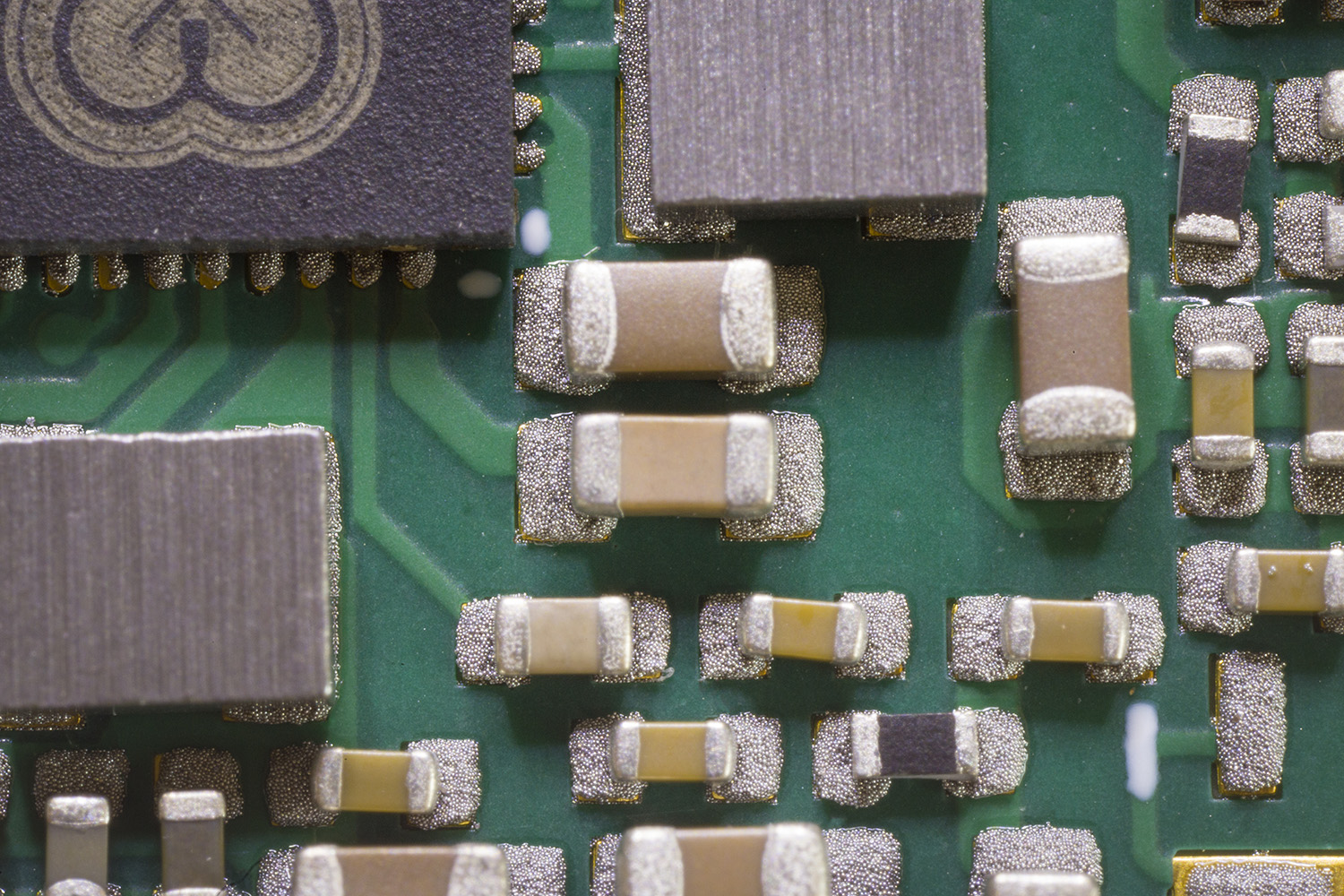

After receiving fresh boards, it’s time to bring the Allwinner S3 CPU-based camera module to life.
![](https://www.kurokesu.com/main/wp-content/uploads/2022/07/IMG_7147_r-2-1024x683.jpg)
![](https://www.kurokesu.com/main/wp-content/uploads/2022/07/IMG_7163_r-2-1024x783.jpg)
End even have some output on the console.
![](https://www.kurokesu.com/main/wp-content/uploads/2022/07/boot_msg.png)
It’s promising! USB and Ethernet does not work, though. Re-soldered S3 chip, and now USB is working. Ethernet is still dead.
