C1 MICRO M12 USB camera
€148.83

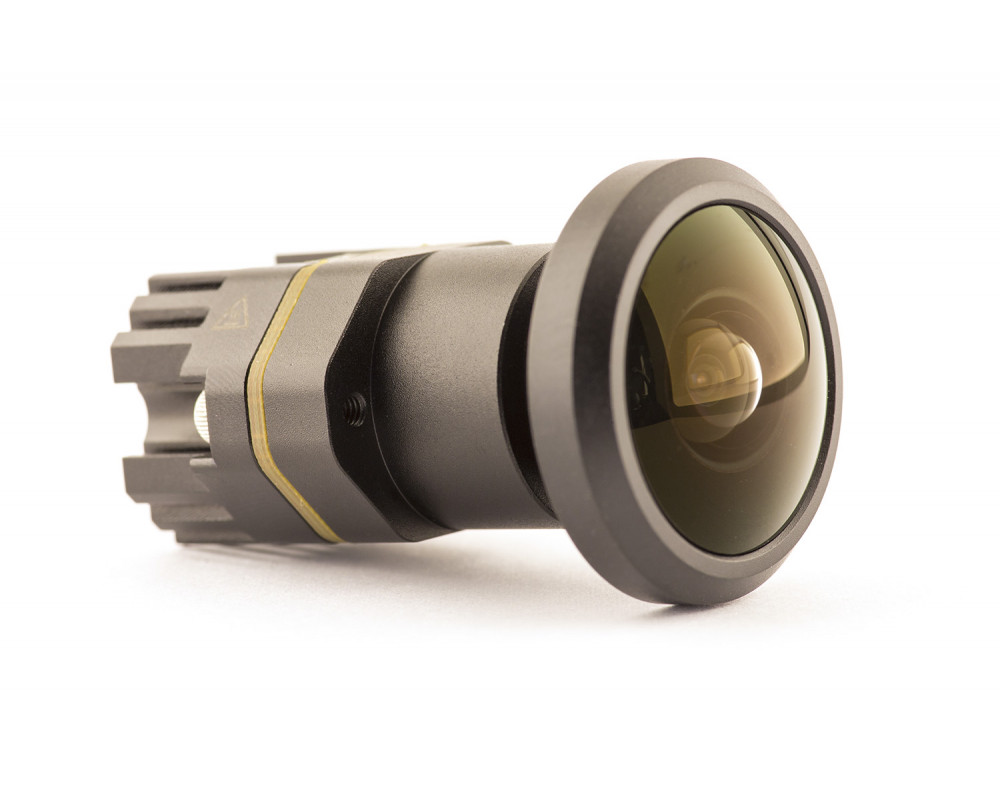

C1 MICRO M12 (9.5 mm lens mount) is a compact and lightweight USB 2.0 camera built around the Onsemi AR0330 sensor for machine vision, robotics, and other space-constrained applications. It is UVC compatible and works with Windows, macOS, Linux, and Android, with H.264, MJPEG, and YUYV output formats available over USB. The camera supports up to 1920x1080 at 30 fps and provides non-cropped sensor operation in all supported resolutions.

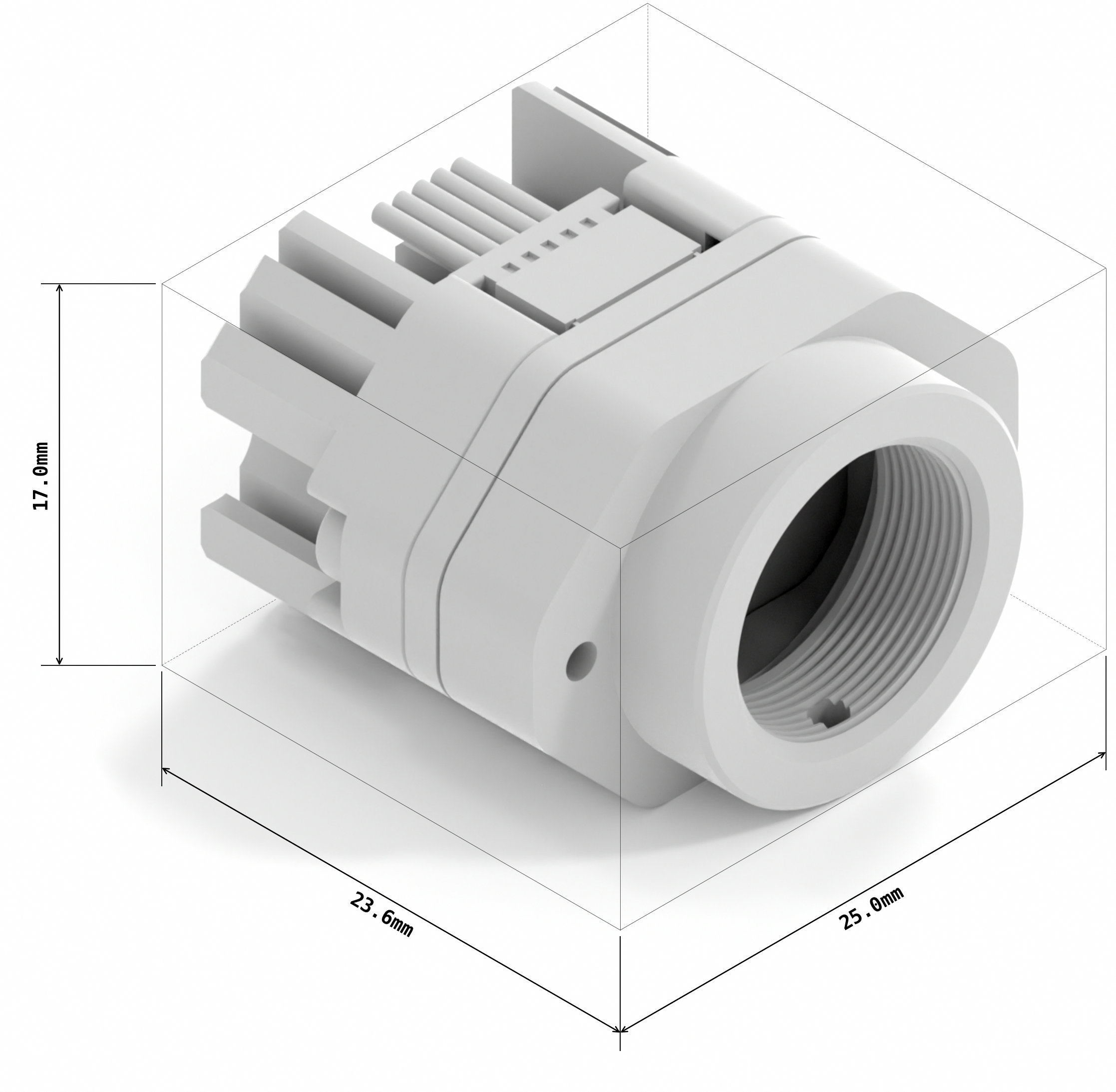

C1 MICRO M12 includes manual control of exposure, white balance, gain, gamma, brightness, saturation, hue, backlight compensation, and anti-flicker settings. The black anodized aluminum housing is designed for easy integration, with mounting points on the sides and top, low 11.4 g weight, and compact 25×17×23.6 mm dimensions.
Features
- Aluminum case
- M12 lens mount (Also known as S-mount)
- Format: 1/3-inch (5.8mm)
- Sensor: Onsemi AR0330
- Imaging area: 2304 x 1536 (5.07 x 3.38 mm)
- Sensor pixel size: 2.2 x 2.2 μm
- YUY2/MJPEG/h.264 compression 1920 x 1080 @ 30 fps
- UVC compatible
- USB 2.0
- Non cropped sensor operation in all resolutions
- Each camera has unique serial number
Notes
- Camera has no built in filter, therefore is sensitive to IR and visible light. Select lens with caution!
- Lens not included!

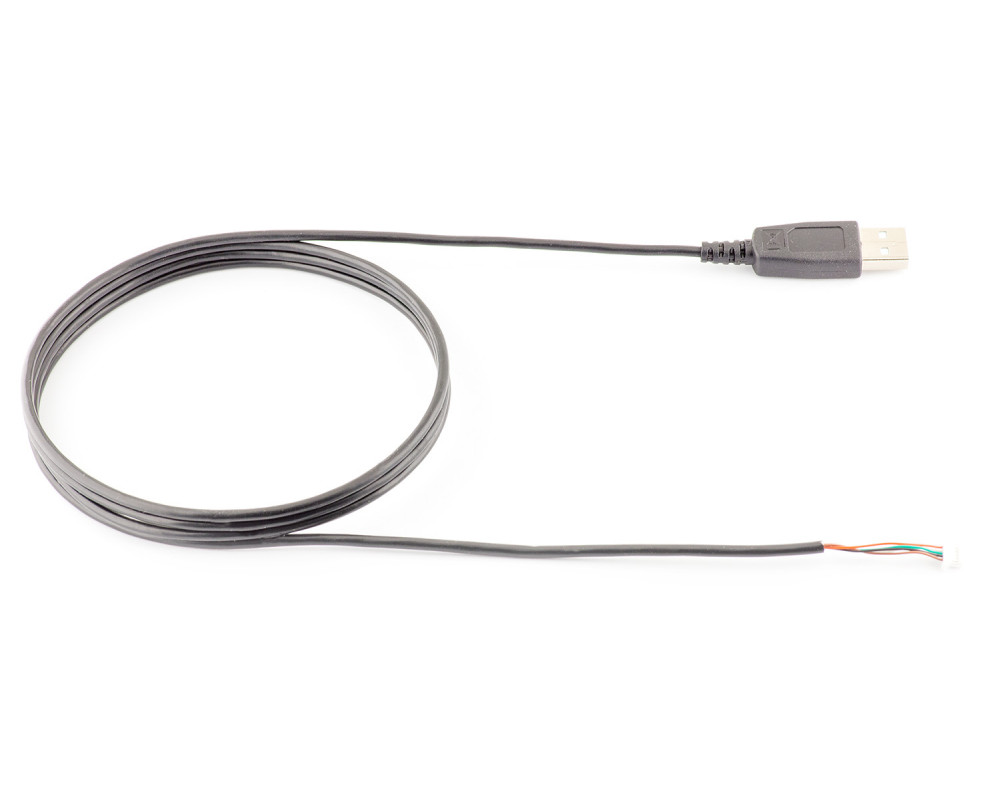

- 1.5m length 1mm pitch USB cable is included

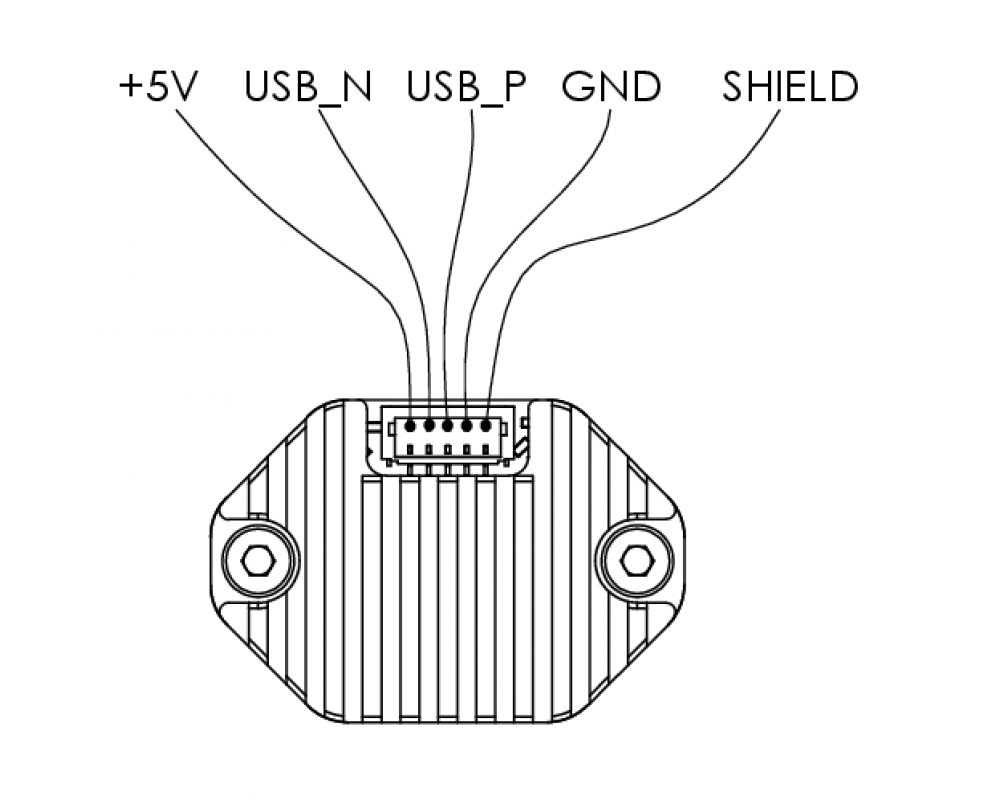

- USB receptacle: Wurth Electronics 665305124022

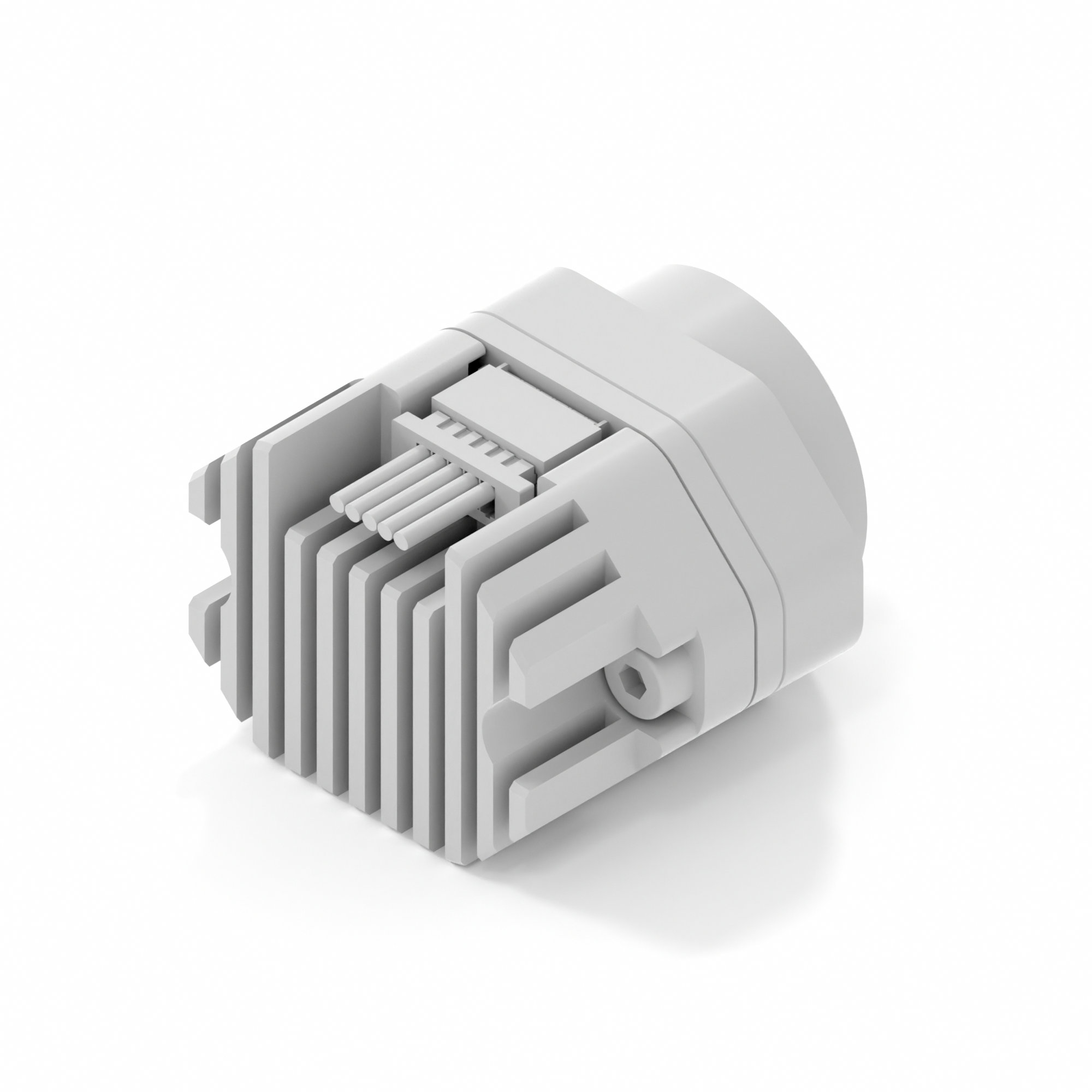

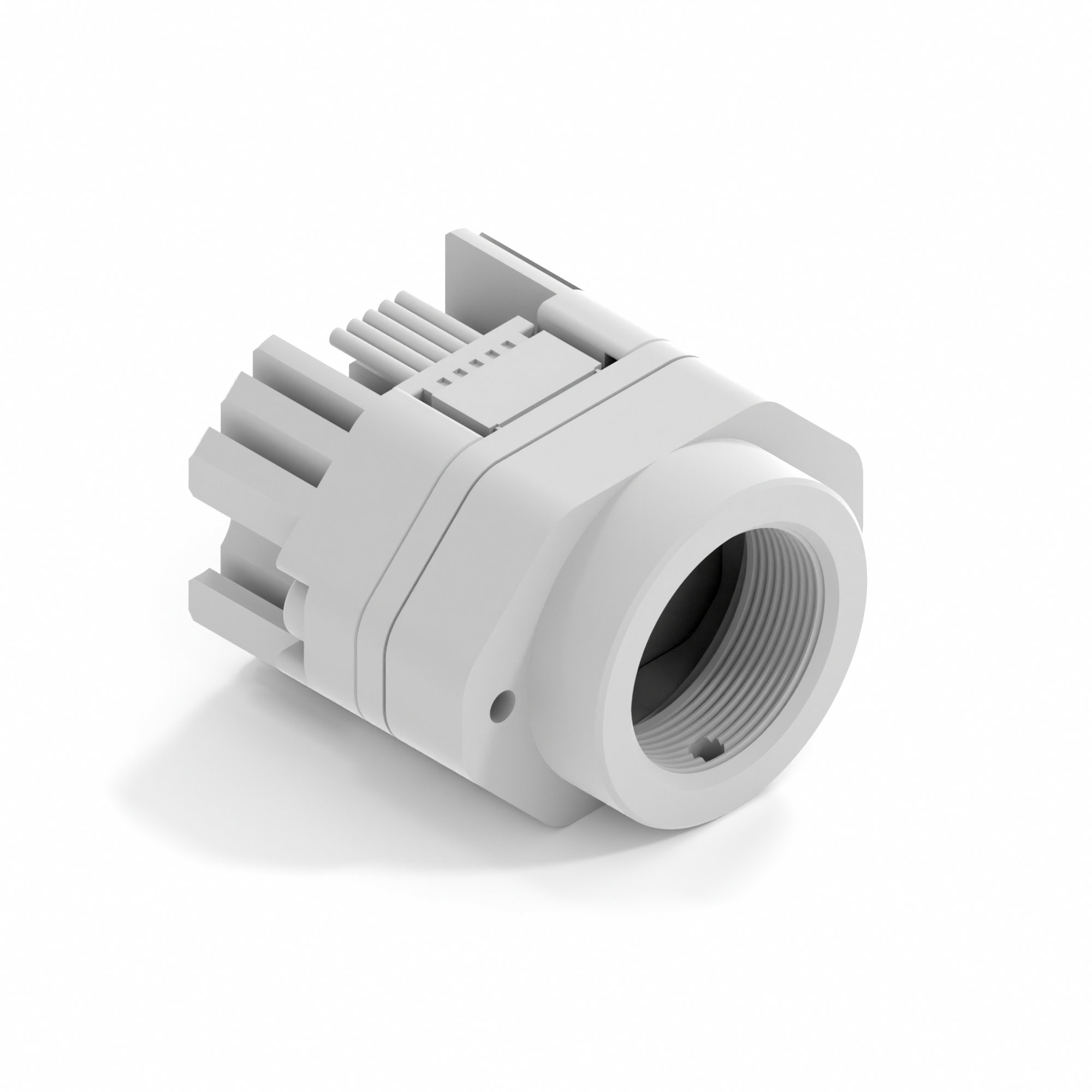

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-03-07: New SKU C1-MICRO-M12. There was only one camera modification CAMERA_C1_MICRO_M12 before.
| Camera interface: | USB (1mm pitch) |
|---|---|
| Camera kind: | Boxed |
| Chroma: | RGB |
| Filter: | NF |
| Image sensor: | AR0330 |
| Lens mount: | M12 |
| Sensor size: | 1/3" |
| HS CODE: | 8525 89 |
| Shutter: | Rolling shutter |
| Frame rate (fps): | 30 |
| Country Of Origin: | Lithuania |
| Resolution (MP): | 2 |
| ECCN: | EAR99 |
| Weight (g): | 11.4 |
