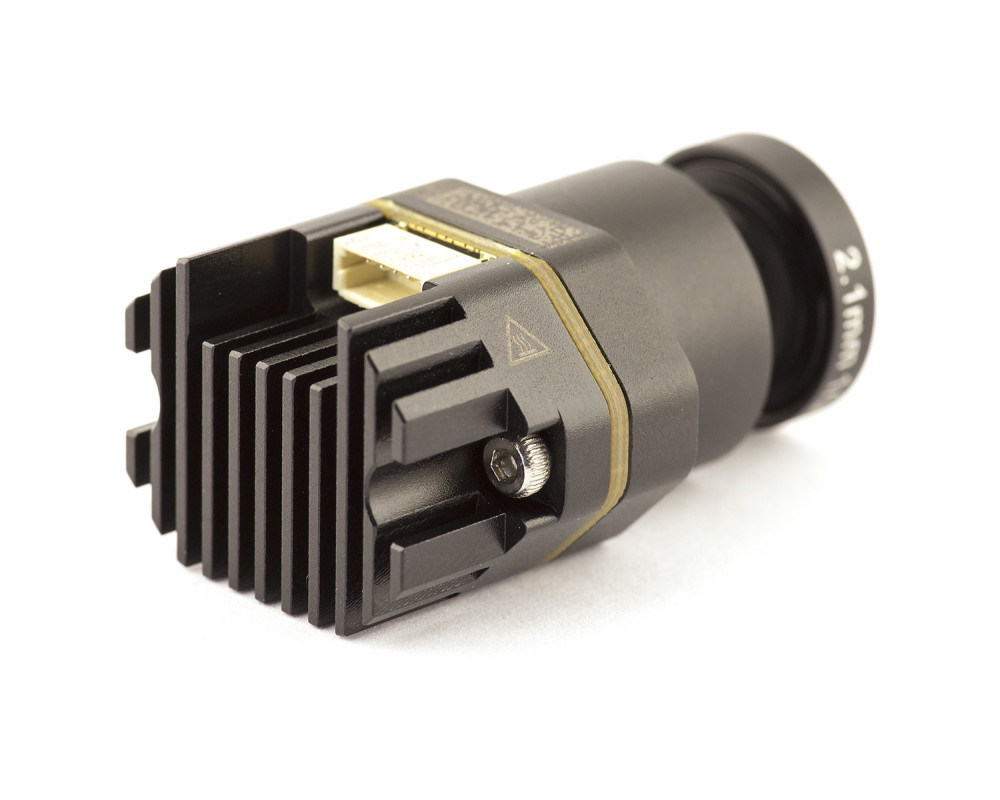

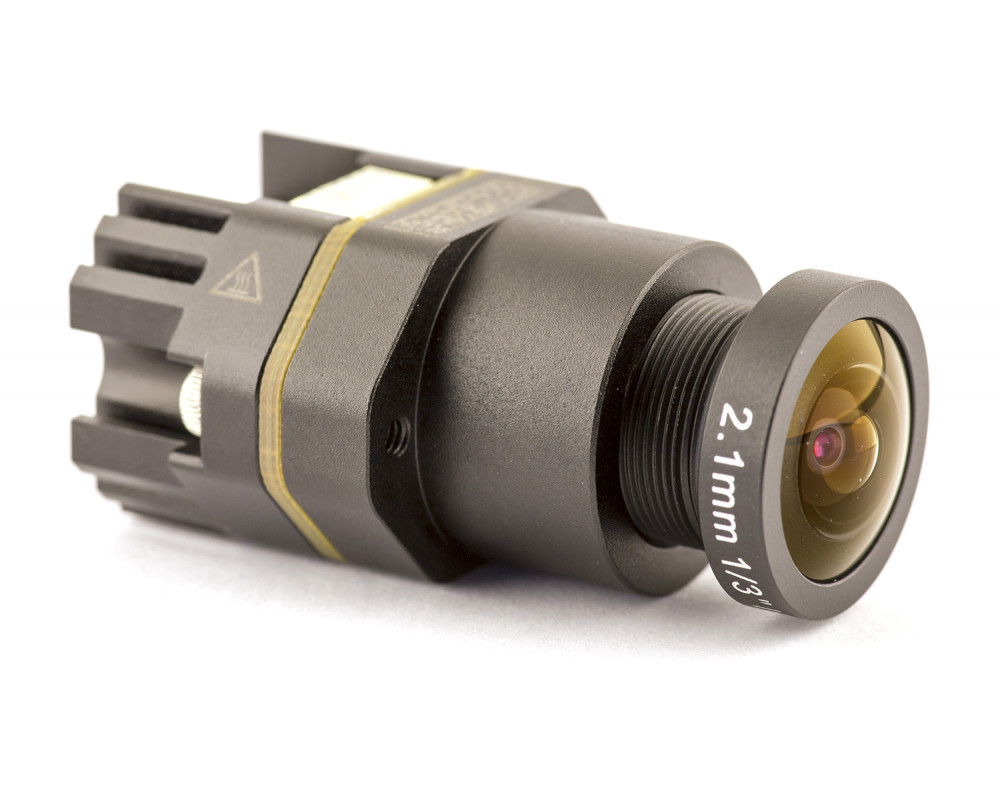

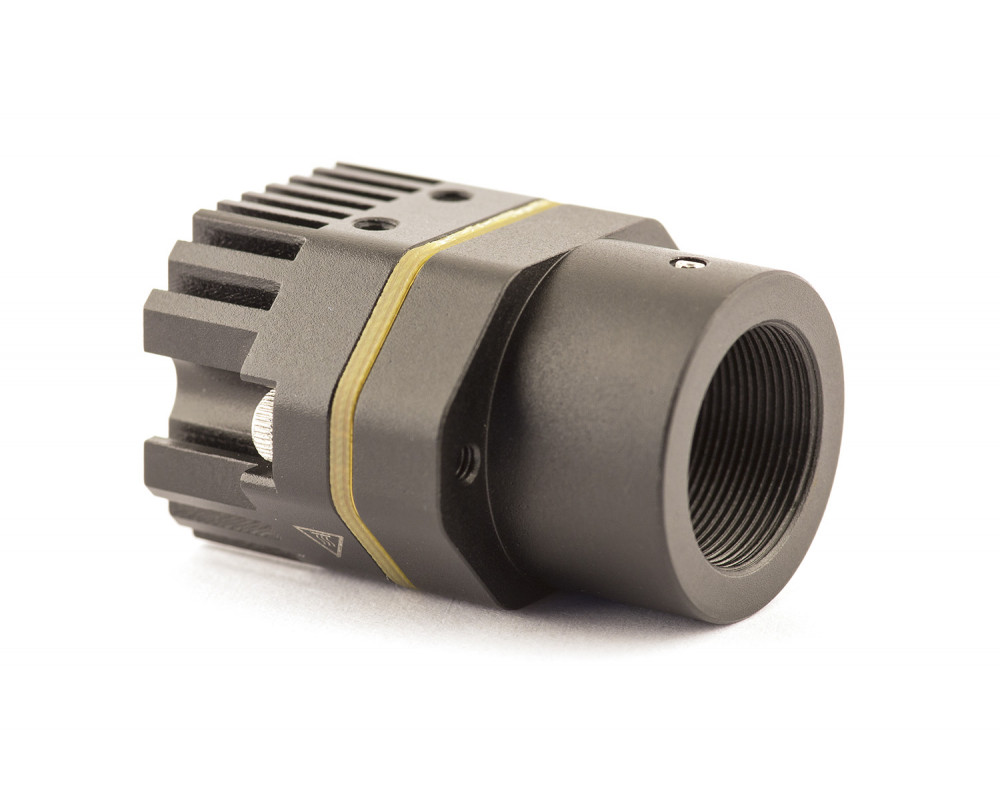

C1 MICRO M12L USB camera
€148.83
C1 MICRO M12L (14.7 mm lens mount) is a compact and lightweight USB 2.0 camera built around the Onsemi AR0330 sensor for machine vision, robotics, and other space-constrained applications. It is UVC compatible and works with Windows, macOS, Linux, and Android, with H.264, MJPEG, and YUYV output formats available over USB. The camera supports up to 1920x1080 at 30 fps and provides non-cropped sensor operation in all supported resolutions.
C1 MICRO M12L includes manual control of exposure, white balance, gain, gamma, brightness, saturation, hue, backlight compensation, and anti-flicker settings. The black anodized aluminum housing is designed for easy integration, with mounting points on the sides and top, low 12.2 g weight, and compact 25×17×28.8 mm dimensions.
Features
- Aluminum case
- M12 lens mount (Also known as S-mount)
- Format: 1/3-inch (5.8mm)
- Sensor: Onsemi AR0330
- Imaging area: 2304 x 1536 (5.07 x 3.38 mm)
- Sensor pixel size: 2.2 x 2.2 μm
- YUY2/MJPEG/h.264 compression 1920 x 1080 @ 30 fps
- UVC compatible
- USB 2.0
- Non cropped sensor operation in all resolutions
- Each camera has unique serial number
Notes
- Camera has no built in filter, therefore is sensitive to IR and visible light. Select lens with caution!
- Lens not included!
- 1.5m length 1mm pitch USB cable is included
- USB receptacle: Wurth Electronics 665305124022

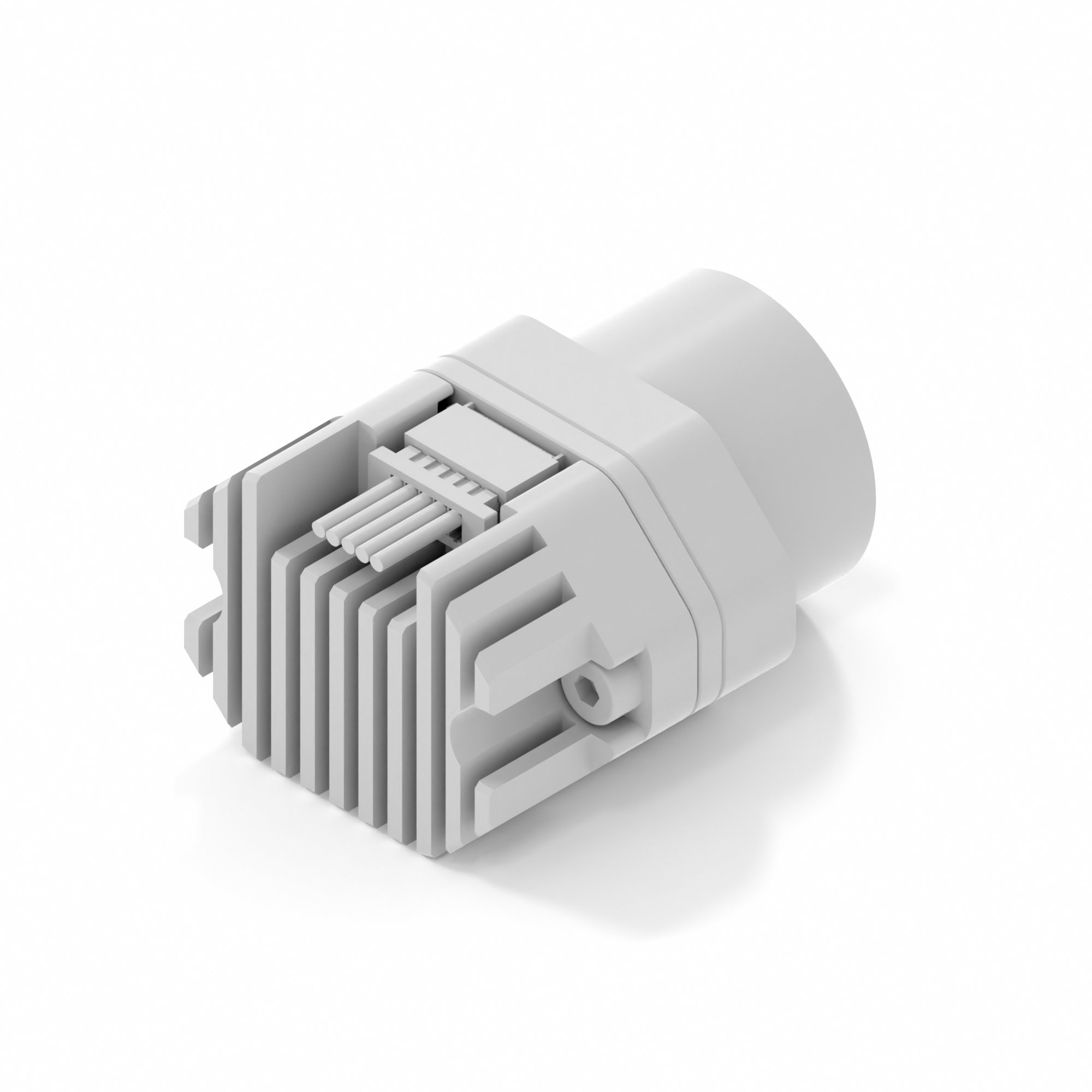

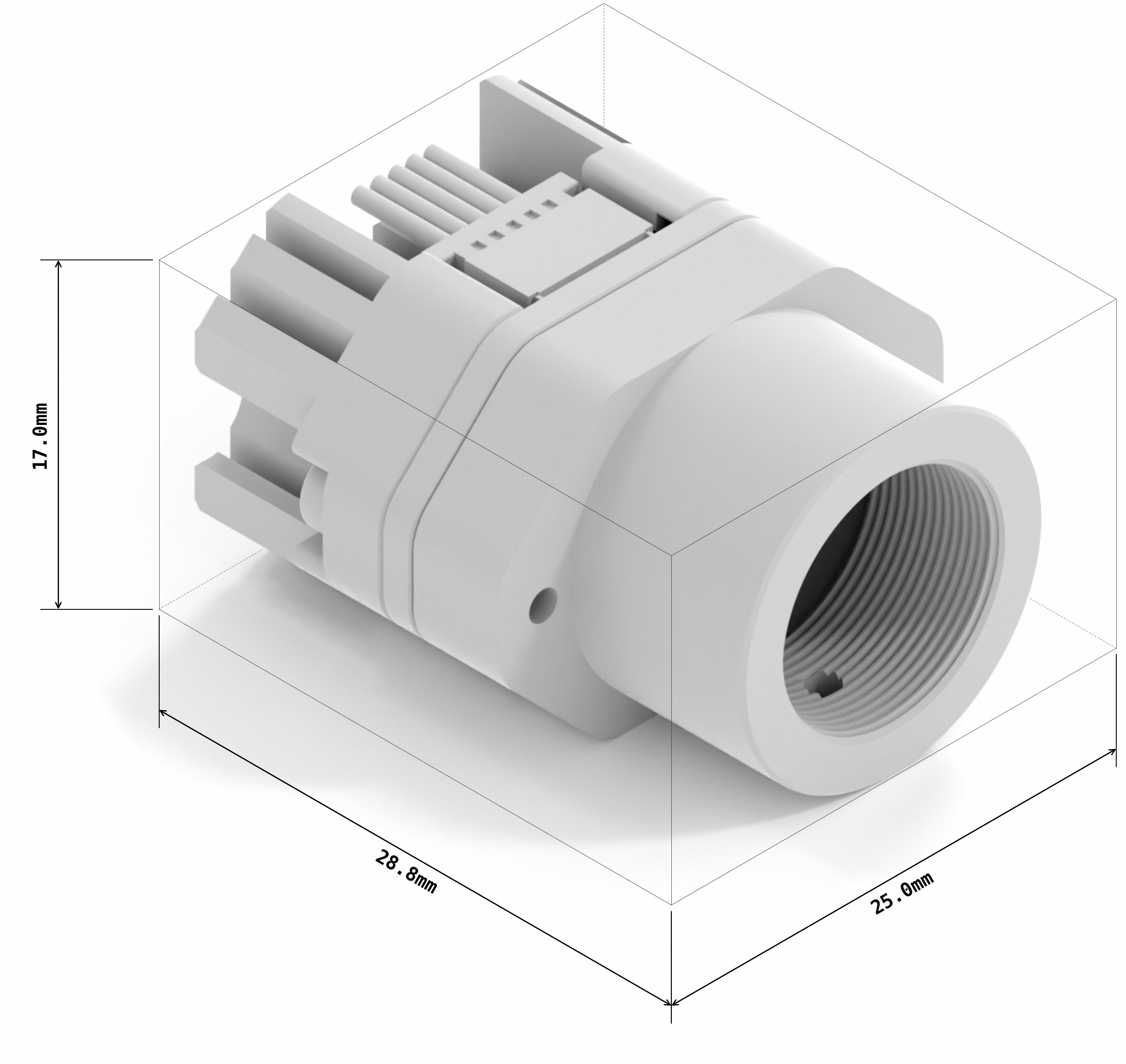

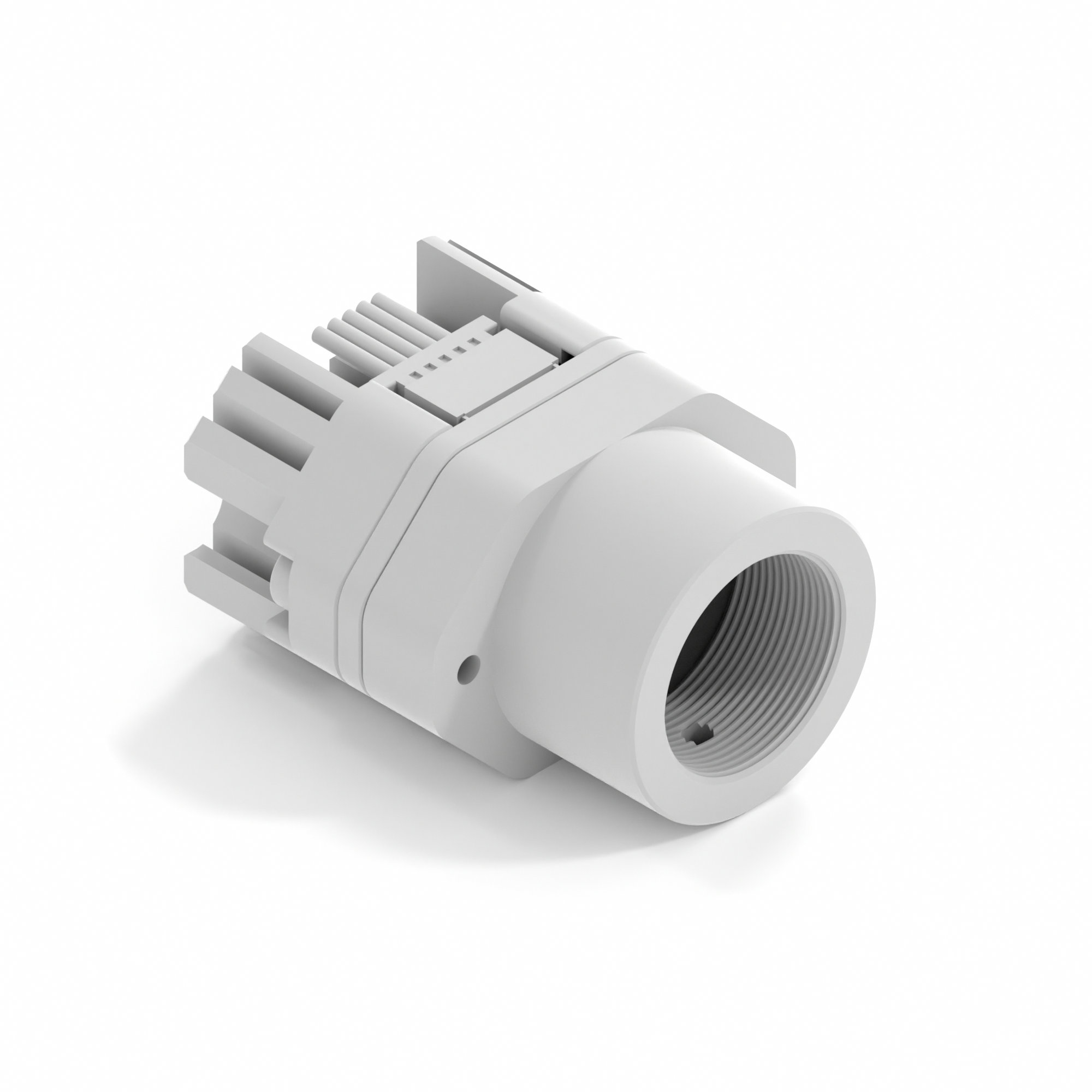

Selected configuration preview and CAD models
Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
- 2026-03-07: SKU CAMERA_C1_MICRO_M12 cahnged to C1-MICRO-M12L. This change unified and shortened SKU to match other camera families.
| Camera interface: | USB (1mm pitch) |
|---|---|
| Camera kind: | Boxed |
| Chroma: | RGB |
| Filter: | NF |
| Image sensor: | AR0330 |
| Lens mount: | M12L |
| Sensor size: | 1/3" |
| HS CODE: | 8525 89 |
| Shutter: | Rolling shutter |
| Frame rate (fps): | 30 |
| Country Of Origin: | Lithuania |
| Resolution (MP): | 2 |
| ECCN: | EAR99 |
| Weight (g): | 12.2 |
Lenses
100 mm telephoto M12 lens for up to 1/1.7" sensors. The lens provides a 4.89° diagonal angle of view, making it suitable for applications that need a very narrow field of view and strong subject magnification in a compact camera system. Distortion below 0.42% also makes it a practical option where straighter lines and more natural image geometry are preferred. Suitable for embedded vision, robotics, machine vision, and other systems that require long focal length optics in M12 format.

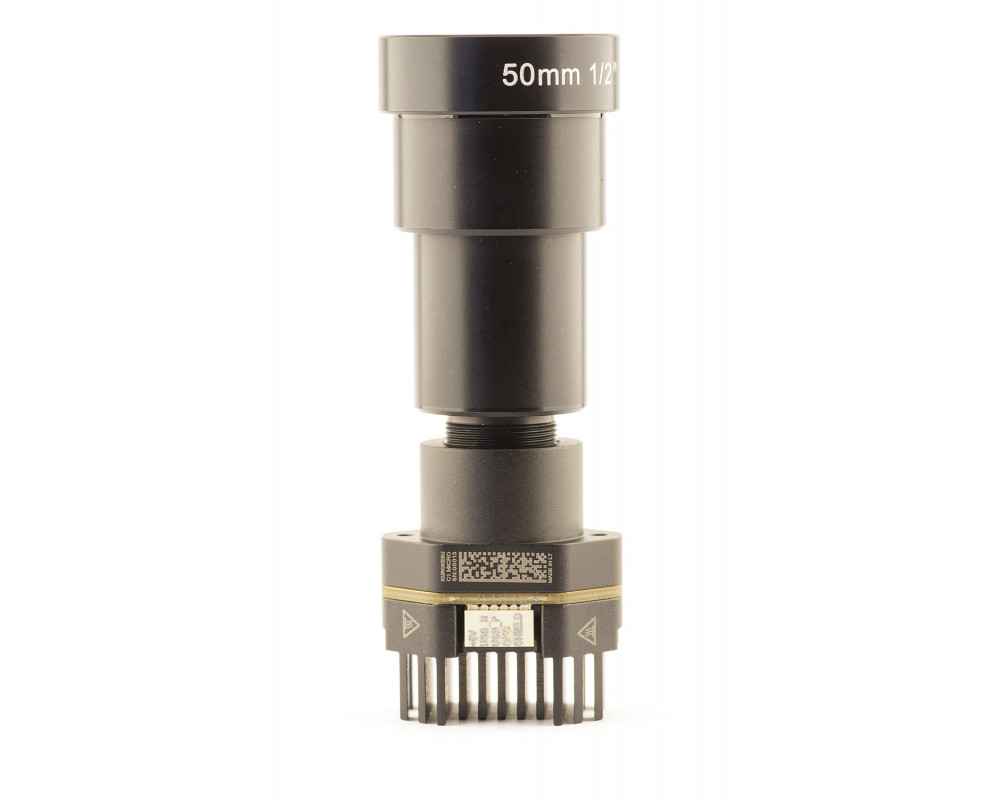

50 mm telephoto M12 lens for up to 1/2" sensors. The lens provides a 7.3° horizontal angle of view, making it suitable for applications that need a narrow field of view and higher subject magnification. A practical option for inspection, robotics, and CCTV systems where the camera needs to isolate a smaller part of the scene. Selected configuration preview and CAD models Gallery photos show real products and may represent similar configurations. Rendered preview shows exact selected variant and dimensions. Some variants are made to order, photos may not be available for every configuration. CAD models are available on GitHub.
