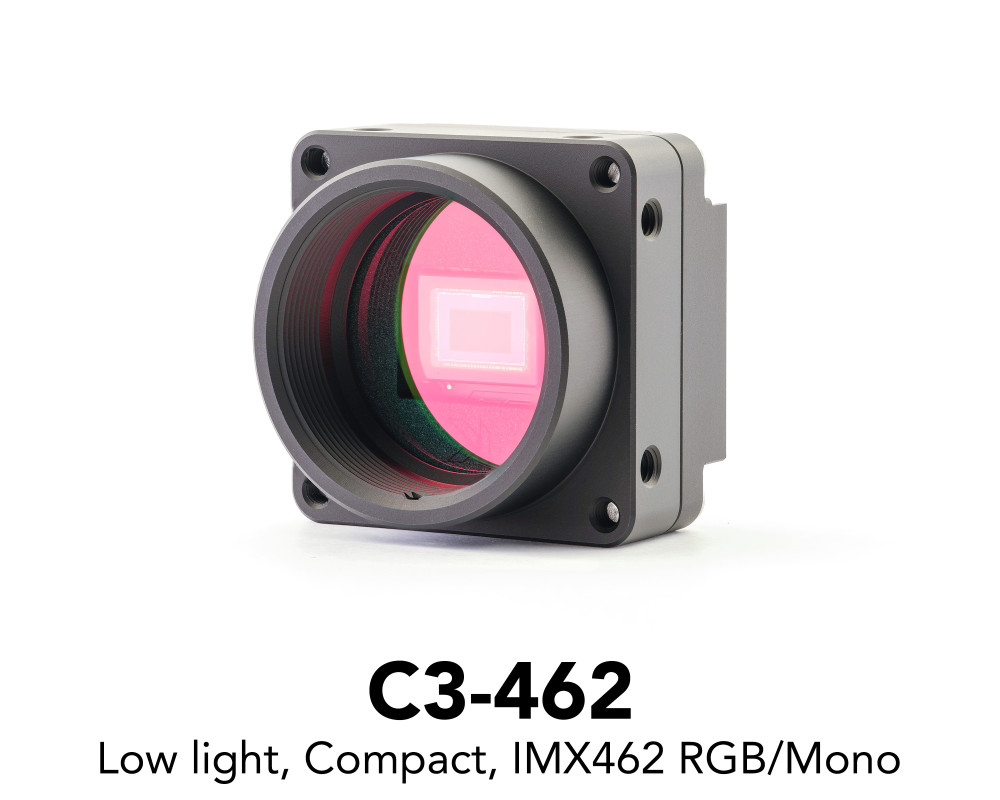

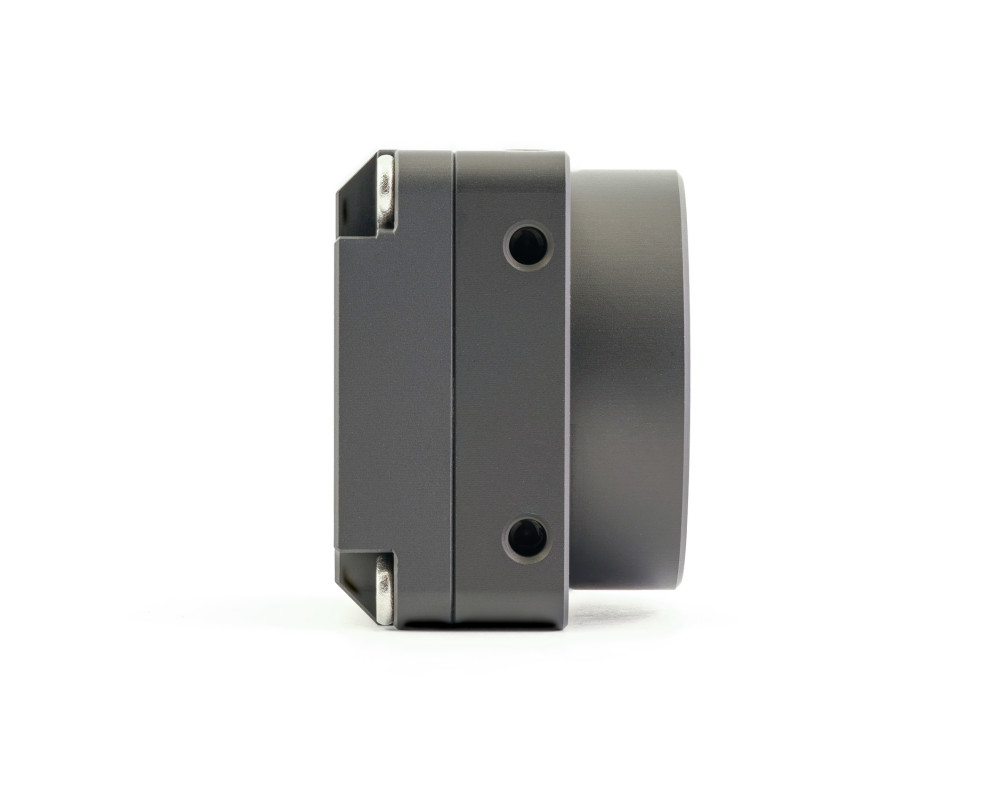

See more in the dark. A 33 × 33 mm aluminium cube with a standard CS lens mount and Sony IMX462 Starvis sensor delivers clean, low-noise 1080 p @ 60 fps straight over USB-C. Pick RGB or Mono and swap the front filter (IRCUT / full-spectrum / 850 nm). Manual UVC controls, M3 holes on every side and optional tripod mount make integration simple.

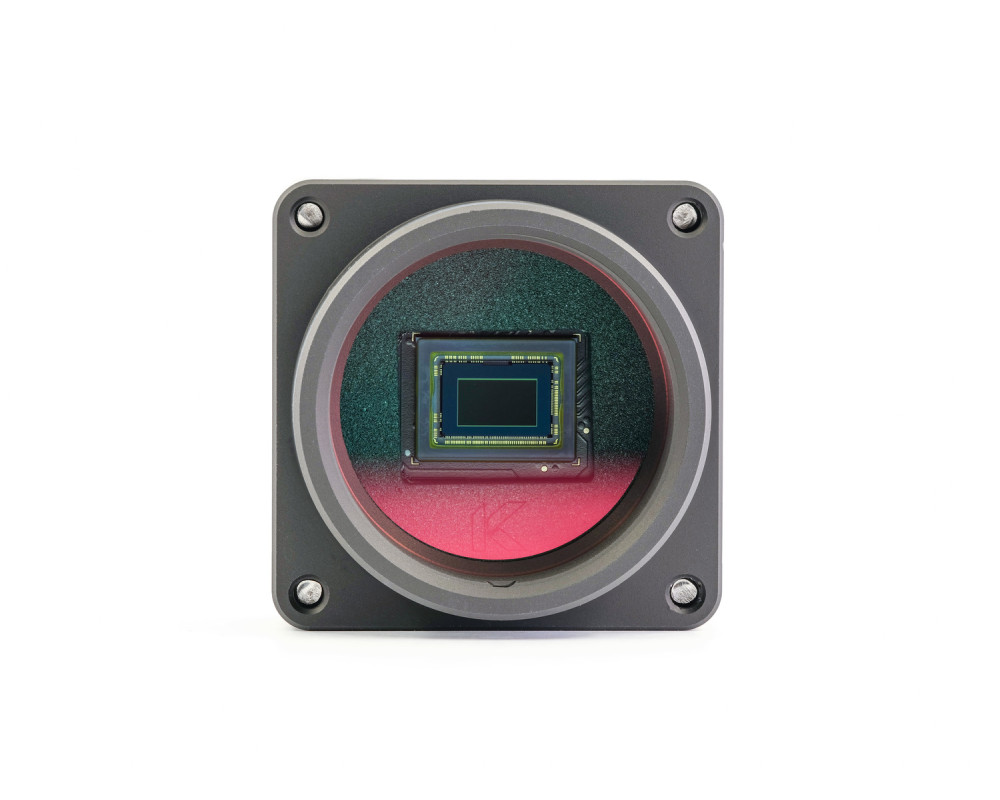

- 2.9µm pixels, superior light sensitivity
- Uncompressed MJPEG / YUY2, full manual exposure, gain & HDR

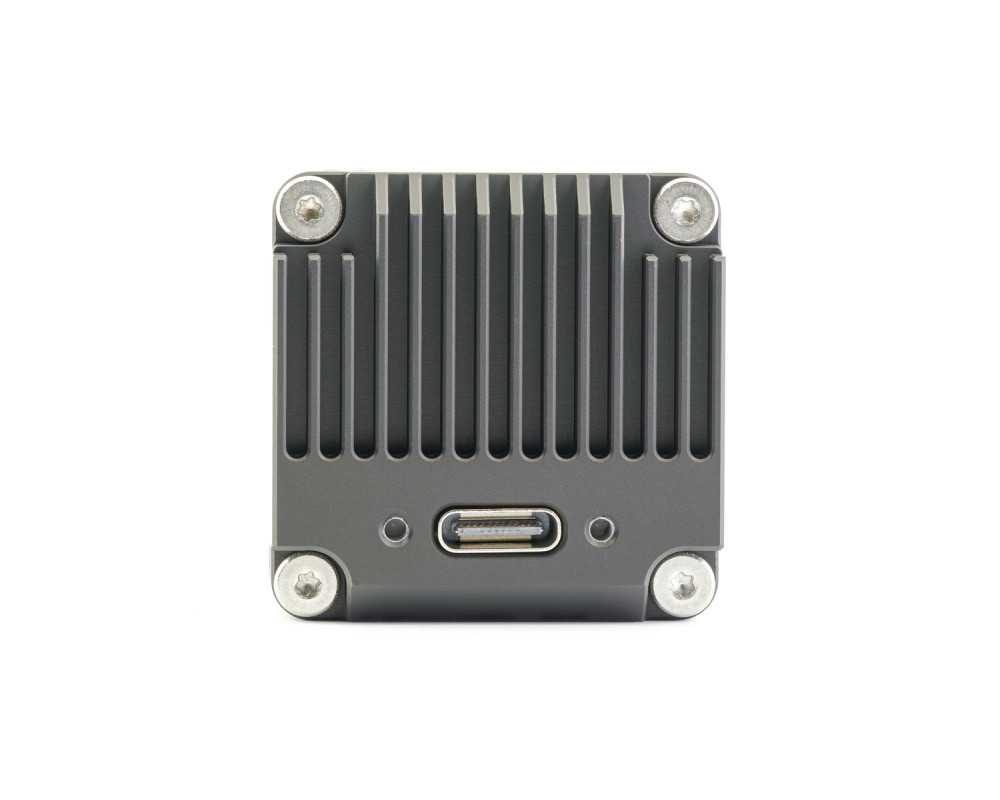

- 2W over 5V USB, unique serial ID
Camera variants
| SKU | Filter | Chroma | Note |
| C3-462C | Visible band-pass (IRCUT filter) LP0689_P1010 | RGB Color | Essential for real-life colors |
| C3-462C-NF | No Filter | RGB Color | Full spectrum false color imaging |
| C3-462C-NIR1 | Long-pass NIR 850nm filter LP0689-P1012 | RGB Color | Blocks visible light, can see only Infrared. Most likely you need C3-462M-NIR1 if higher sensitivity is required |
| C3-462M | Visible band-pass (IRCUT filter) LP0689_P1010 | Mono | Rarely used, most likely you need C3-462M-NF or C3-462M-NIR1 |
| C3-462M-NF | No Filter | Mono | Full spectrum monochrome imaging |
| C3-462M-NIR1 | Long-pass NIR 850nm filter LP0689-P1012 | Mono | Blocks visible light, can see only Infrared |
Documentation
C3 cameras - wiki
3D model - GitHub
USB camera C3-462 (low light)
- Product Code: C3-462x
- Availability: In Stock
-
198.00€
