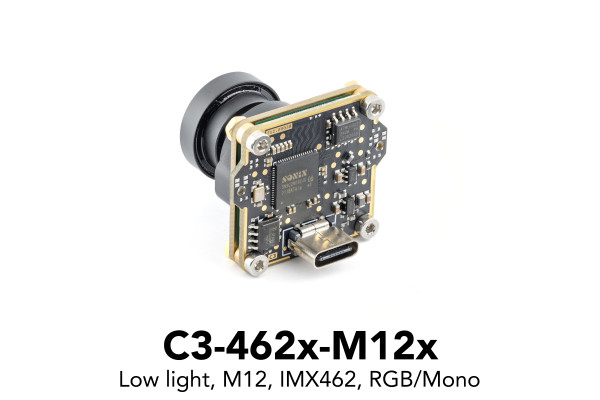

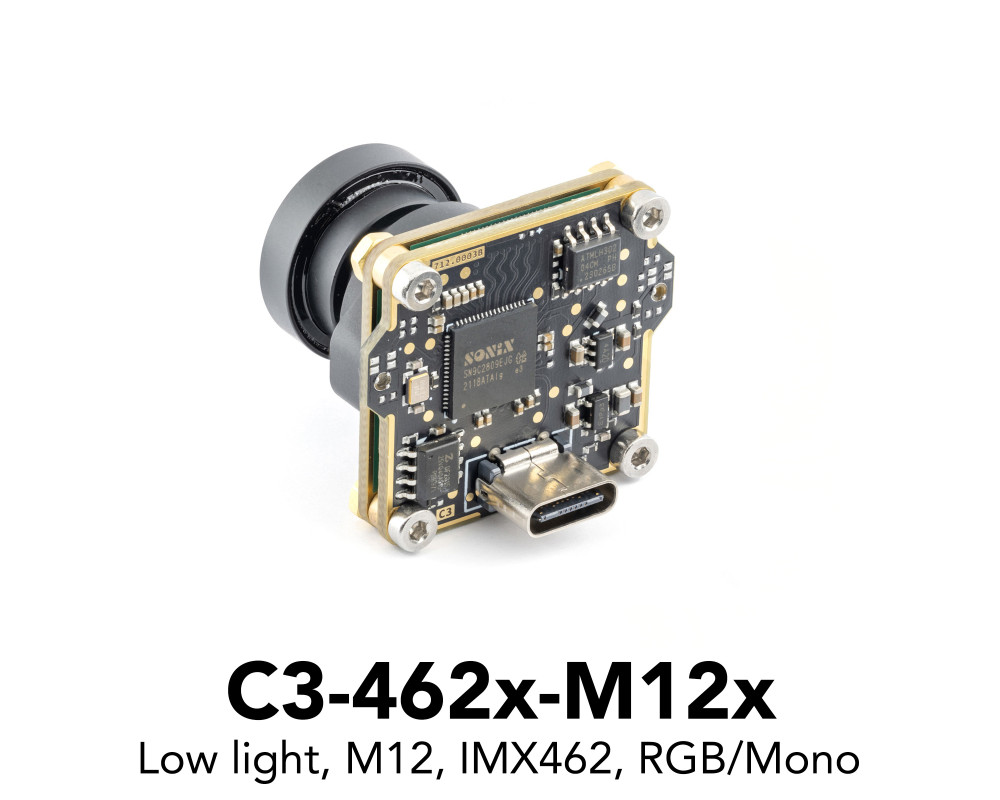

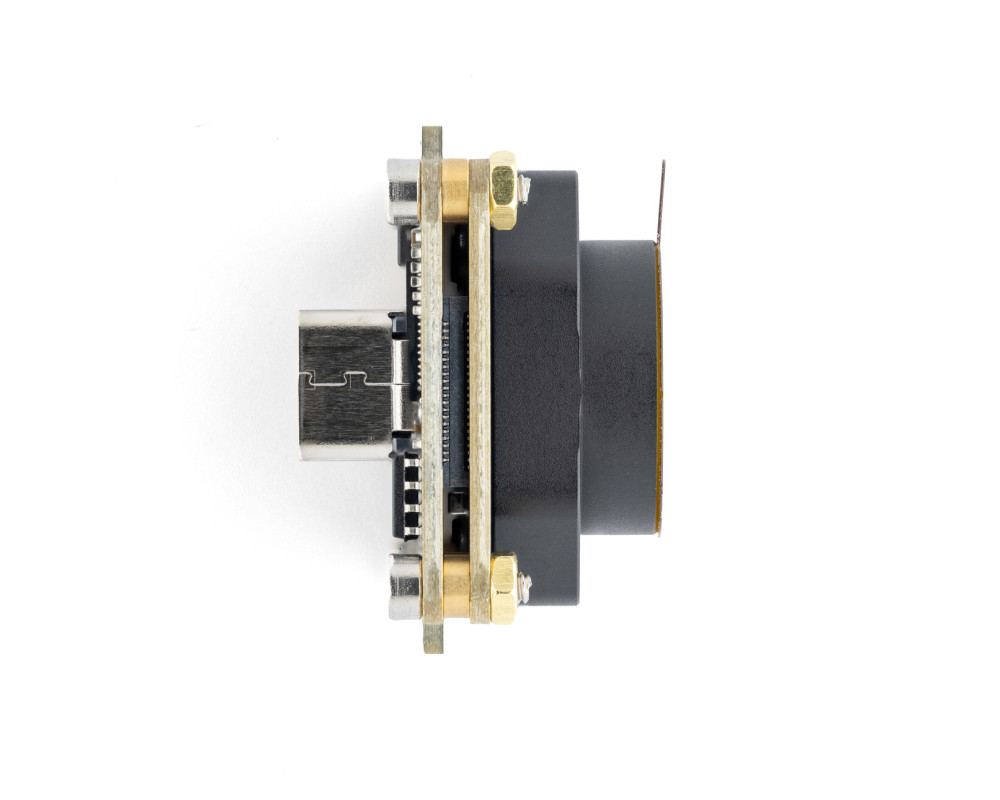

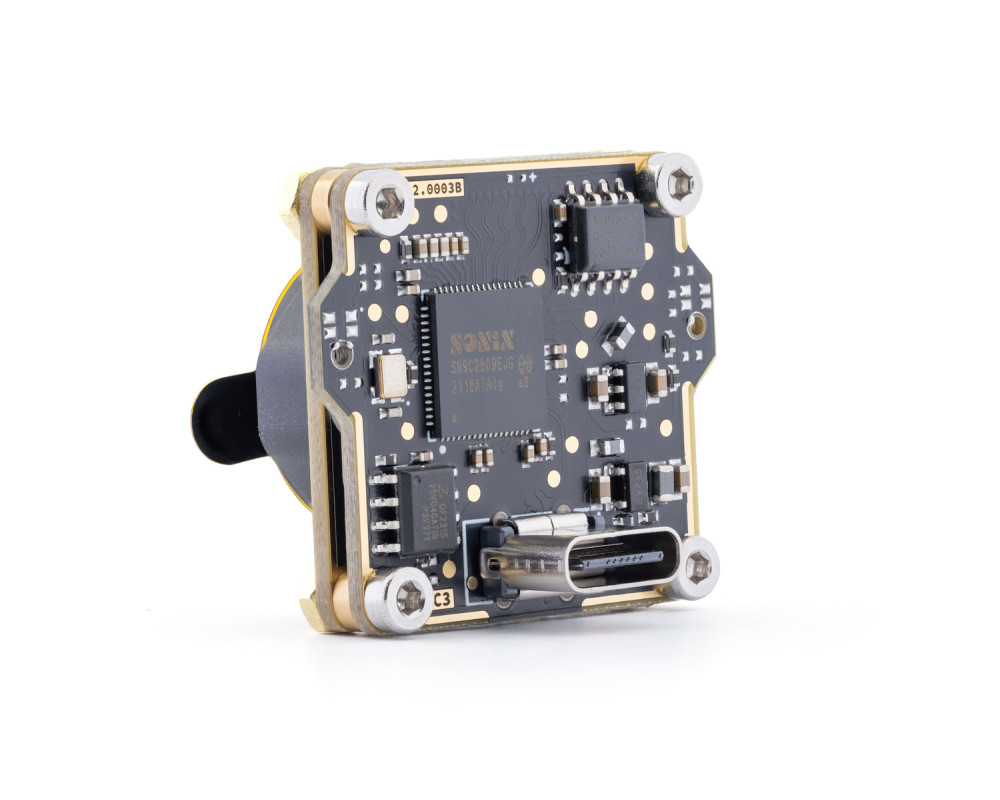

Same IMX462 performance, slimmer footprint. The board-level C3-462-M12 weighs ~15 g and accepts any M12 (9.5 mm) or extended M12L (14.7 mm) lens - ideal for remote operated devices, kiosks and compact enclosures. RGB and high-sensitivity Mono versions available.
- M12 lens mount (filter lives in the lens)
- 1080p @ 60fps via USB-C, UVC plug-and-play
- <2 W over 5V USB, unique serial ID
- Lens not included
Camera variants
| SKU | Lens mount | Chroma | Note |
| C3-462C-M12 | 9.5mm for wide angle lenses | RGB Color | Most common use for wide angle and fish-eye lenses. |
| C3-462C-M12L | 14.7mm for regular and telephoto lenses | RGB Color | Modification for lenses above 6mm (typical) |
| C3-462M-M12 | 9.5mm for wide angle lenses | Mono | Same as C3-462C-M12 but Mono sensor for better light sensitivity |
| C3-462M-M12L | 14.7mm for regular and telephoto lenses | Mono | Same as C3-462C-M12L but Mono sensor for better light sensitivity |
Documentation
C3 cameras - wiki
3D model - GitHub
USB camera C3-462 (Low light, M12 lens)
- Product Code: C3-462x-M12x
- Availability: In Stock
-
152.00€
